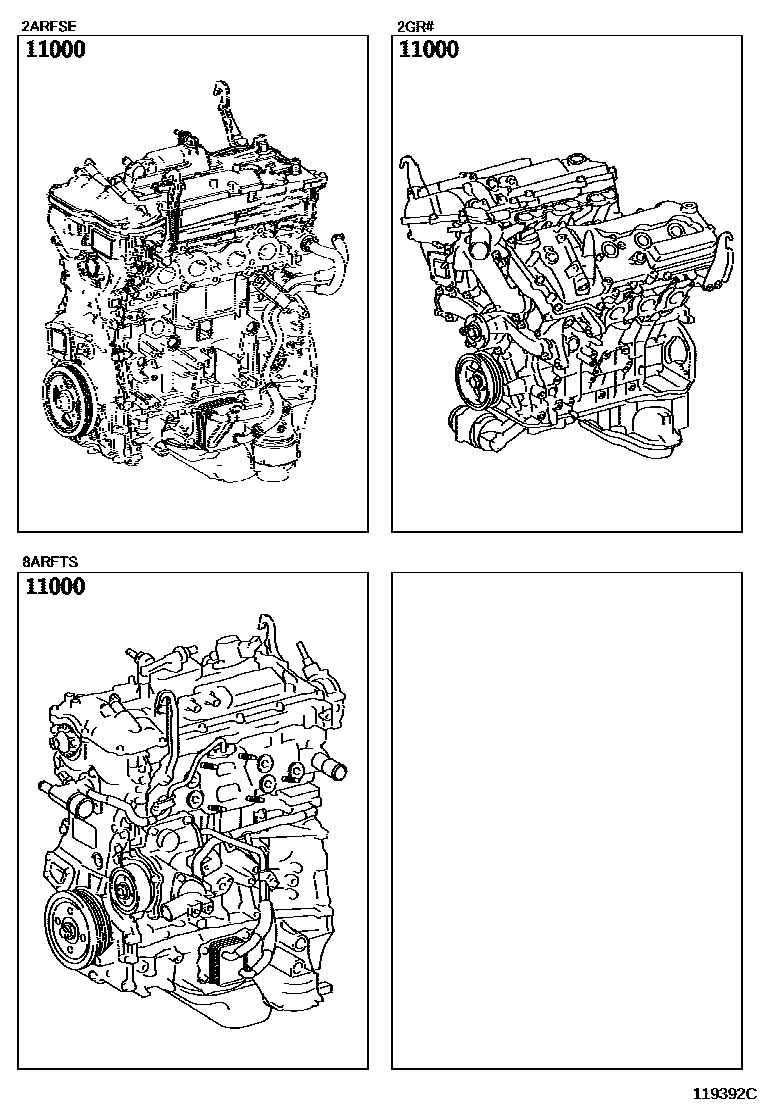

Toyota LEXUS RC3###/200T — PARTIAL ENGINE ASSEMBLY

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-31H81i201609-201711

main19000-31P40i201409-201609

main19000-36480i201510-202008

main19000-36550i201510-202008

1 parts on this diagram · 1 diagram in section
