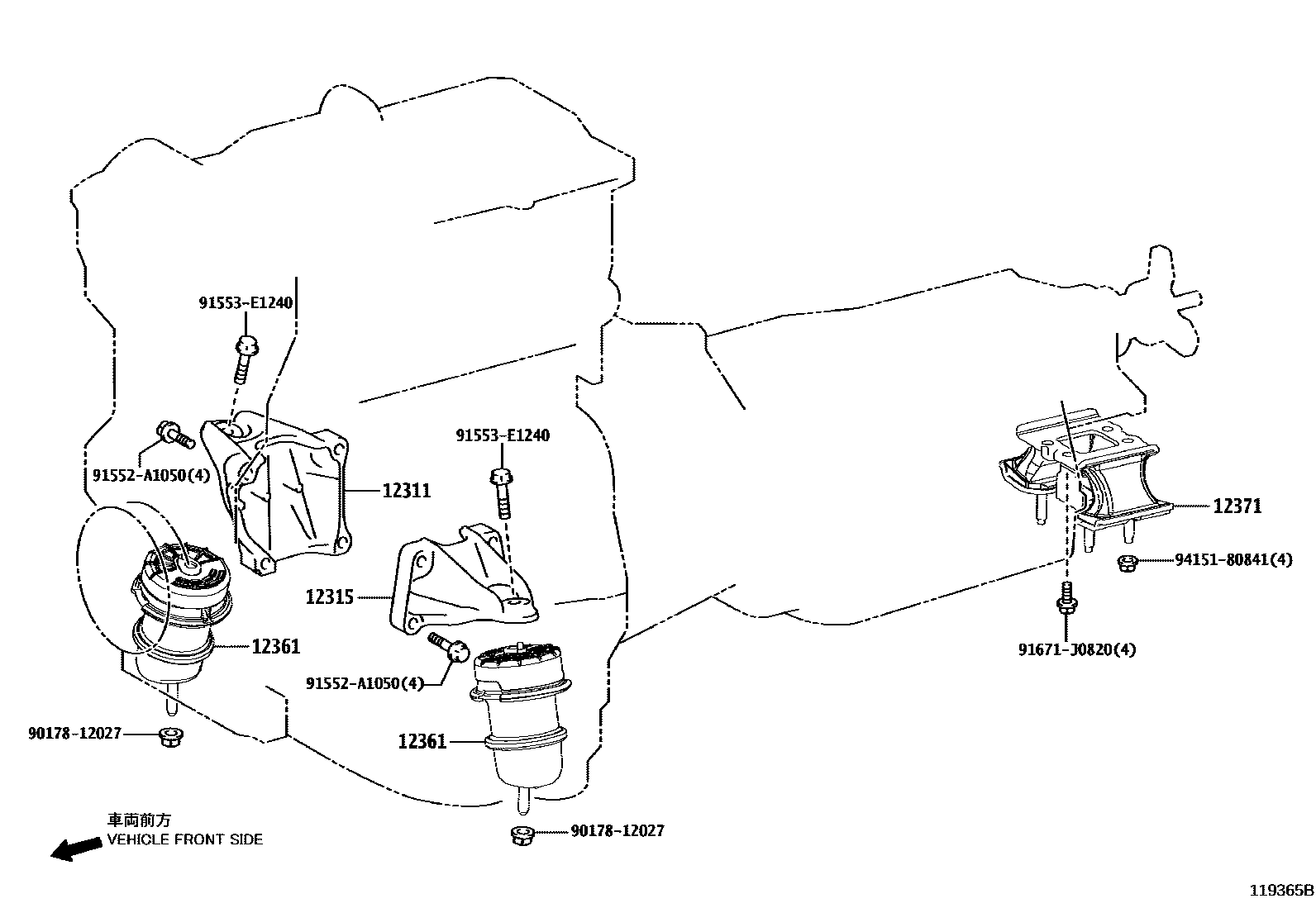

Toyota LEXUS RC3###/200T — MOUNTING

0001 1 0002 1 0003 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-31040i2GRFSE..GSC10201409-201711

main12311-36100i2ARFSE..AVC10201510-202008

main12311-36130i8ARFTS..ASC10..LHD201510-202008

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12302-31010i2GRFSE..GSC10201409-201711

main12315-36020i2ARFSE..AVC10201510-202008

main12315-36040i8ARFTS..ASC10..RHD201510-202008

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-31360i2GRFSE..GSC10201409-201711

main12361-36140i2ARFSE..AVC10201510-201705

sub12361-36141

main12361-36141i2ARFSE..AVC10201706-202008

main12361-36220i8ARFTS..ASC10201510-202008

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-31270i2ARFSE..AVC10201510-202003

sub12371-36280

main12371-31300i2GRFSE..GSC10201409-201711

sub12371-31390

main12371-36210i8ARFTS..ASC10..LHD201510-202003

sub12371-36270

main12371-36270i8ARFTS..ASC10202004-202008

main12371-36280i2ARFSE..AVC10202004-202008

9017812027

main90178-12027

91552A1050

main91552-A1050

91553E1240

main91553-E1240

91671J0820

main91671-J0820

9415180841

main94151-80841

9 parts on this diagram · 3 diagrams in section
