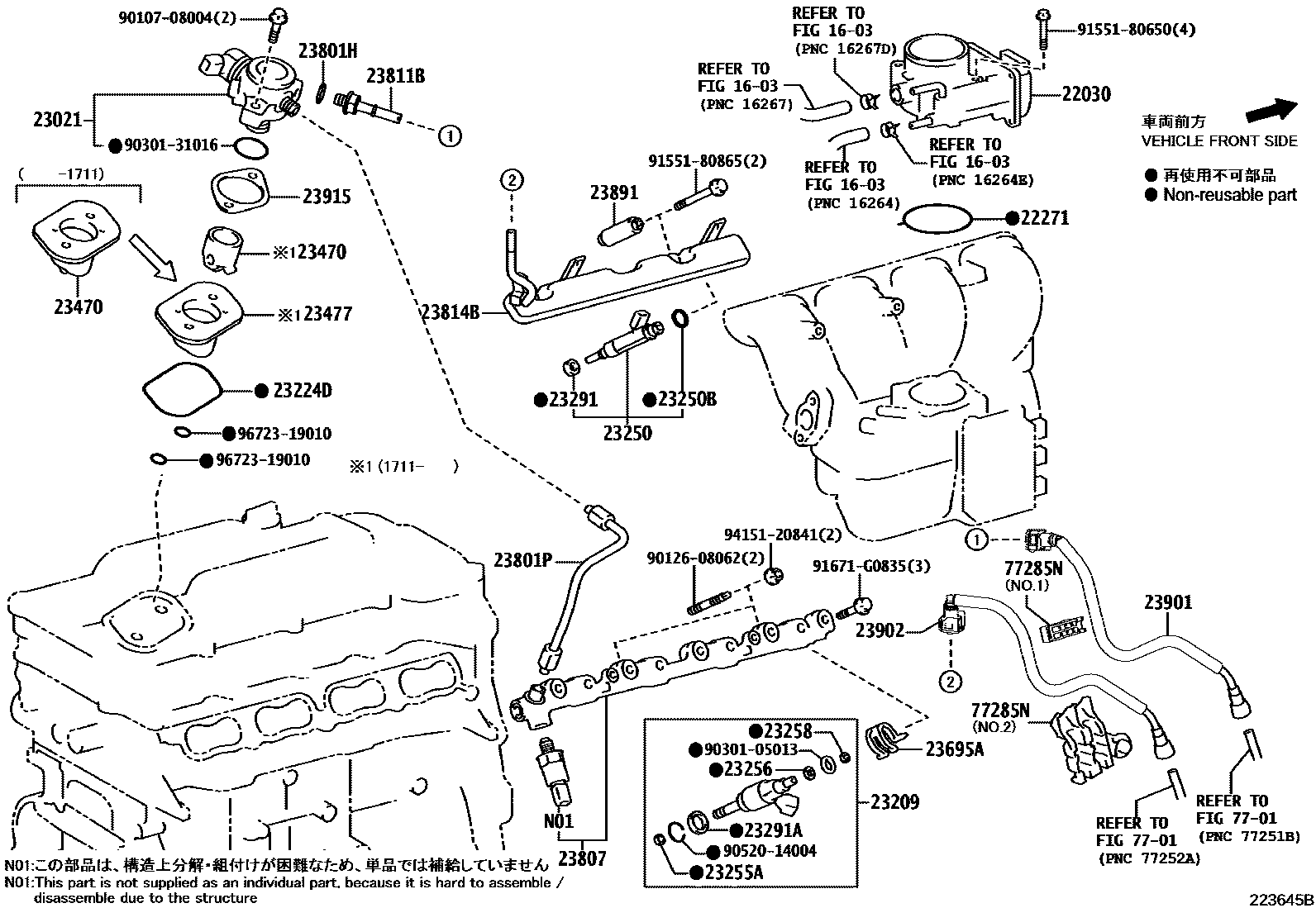

Toyota LEXUS RC3###/200T — FUEL INJECTION SYSTEM
1603
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22271GASKET, THROTTLE BODY
23209INJECTOR SET, FUEL
MARK 1,REFER REPAIR MANUAL
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
23224DGASKET, FUEL PUMP SPACER
23250INJECTOR ASSY, FUEL
23250BRING, O(FOR FUEL INJECTOR)
(J)
(L)
23255ASEAL, FUEL INJECTOR
23256RING, FUEL INJECTOR BACK-UP, NO.1
23258RING, FUEL INJECTOR BACK-UP, NO.3
23291INSULATOR, INJECTOR VIBRATION
23291AINSULATOR, INJECTOR VIBRATION
23470LIFTER ASSY, FUEL PUMP
23477GUIDE, FUEL PUMP LIFTER
23695ACLAMP, NOZZLE HOLDER
23801HGASKET(FOR FUEL PIPE)
23801PPIPE SUB-ASSY, FUEL, NO.1
PNC 23807=TYPE A
PNC 23807=TYPE B
23811BPIPE, FUEL, NO.1
23814BPIPE, FUEL DELIVERY
23891SPACER, FUEL DELIVERY
23901TUBE SUB-ASSY, FUEL
23902TUBE SUB-ASSY, FUEL
23915INSULATOR, FUEL PUMP
7701
77285NCLAMP, FUEL TUBE, NO.1
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
9010708004
main90107-08004
9012608062
main90126-08062
9030105013
main90301-05013
9030131016
main90301-31016
9052014004
main90520-14004
9155180650
main91551-80650
9155180865
main91551-80865
91671G0835
main91671-G0835
9415120841
main94151-20841
9672319010
main96723-19010
37 parts on this diagram · 5 diagrams in section
