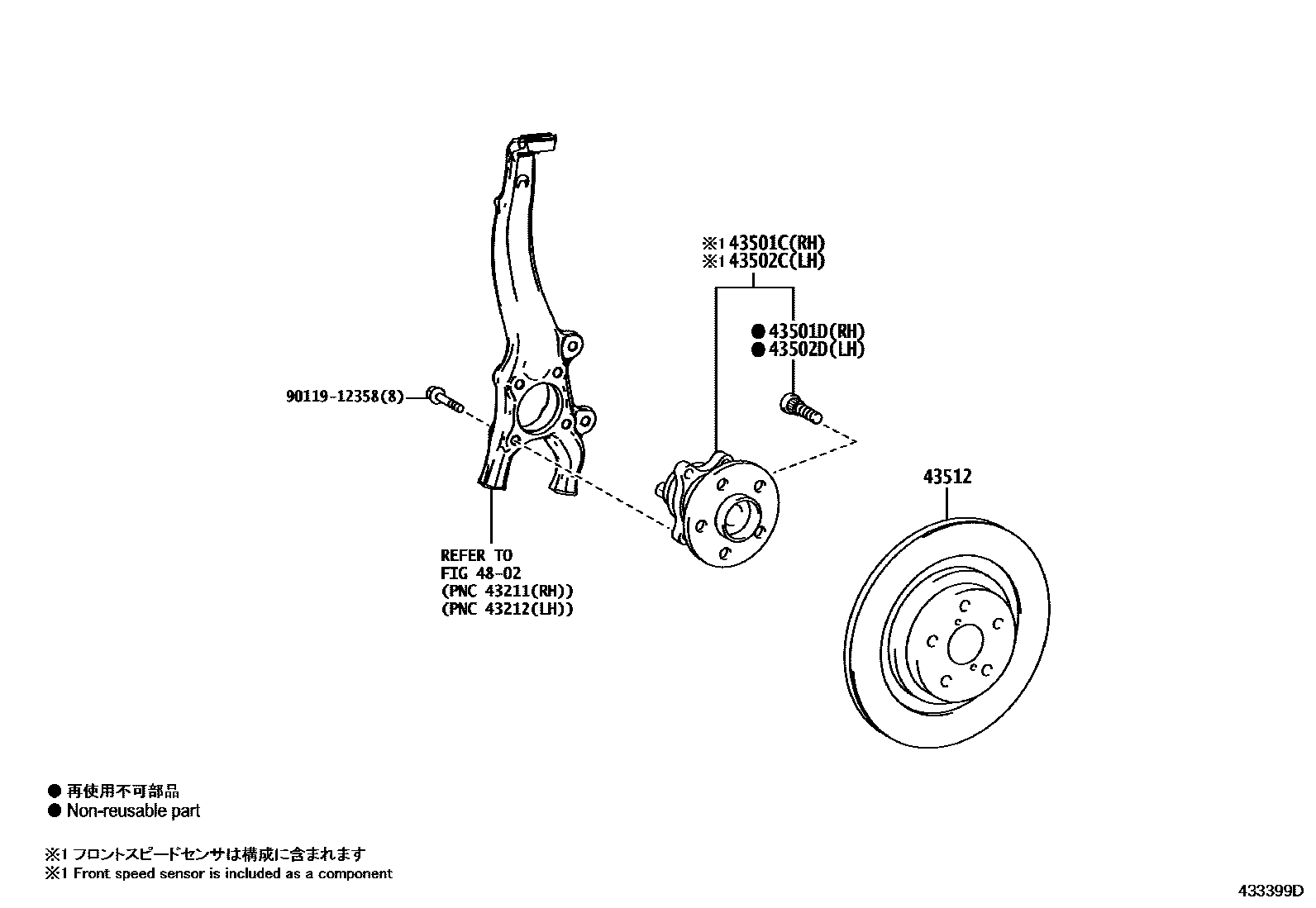

Toyota LEXUS RC3###/200T — FRONT AXLE HUB

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-30050iGSC10201409-201504

sub43550-30051

main43550-30051iGSC10201505-202008

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iAVC10;ASC10..LHD201505-202008

main90942-02070iGSC10201409-201504

sub90942-02049

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-30050iGSC10201409-201504

sub43550-30051

main43550-30051iASC10,AVC10201505-202008

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iGSC10201505-202008

main90942-02070iGSC10201409-201504

sub90942-02049

43512DISC, FRONT

main43512-22260iASC10201409-202008

RH

sub43512-22261

main43512-30371iASC10201510-201805

RH

sub43512-53050

main43516-22010iAVC10,GSC10201409-202008

LH

sub43516-22011

main43516-30061iASC10201510-201805

LH

sub43516-53030

4802

9011912358

main90119-12358

7 parts on this diagram · 1 diagram in section
