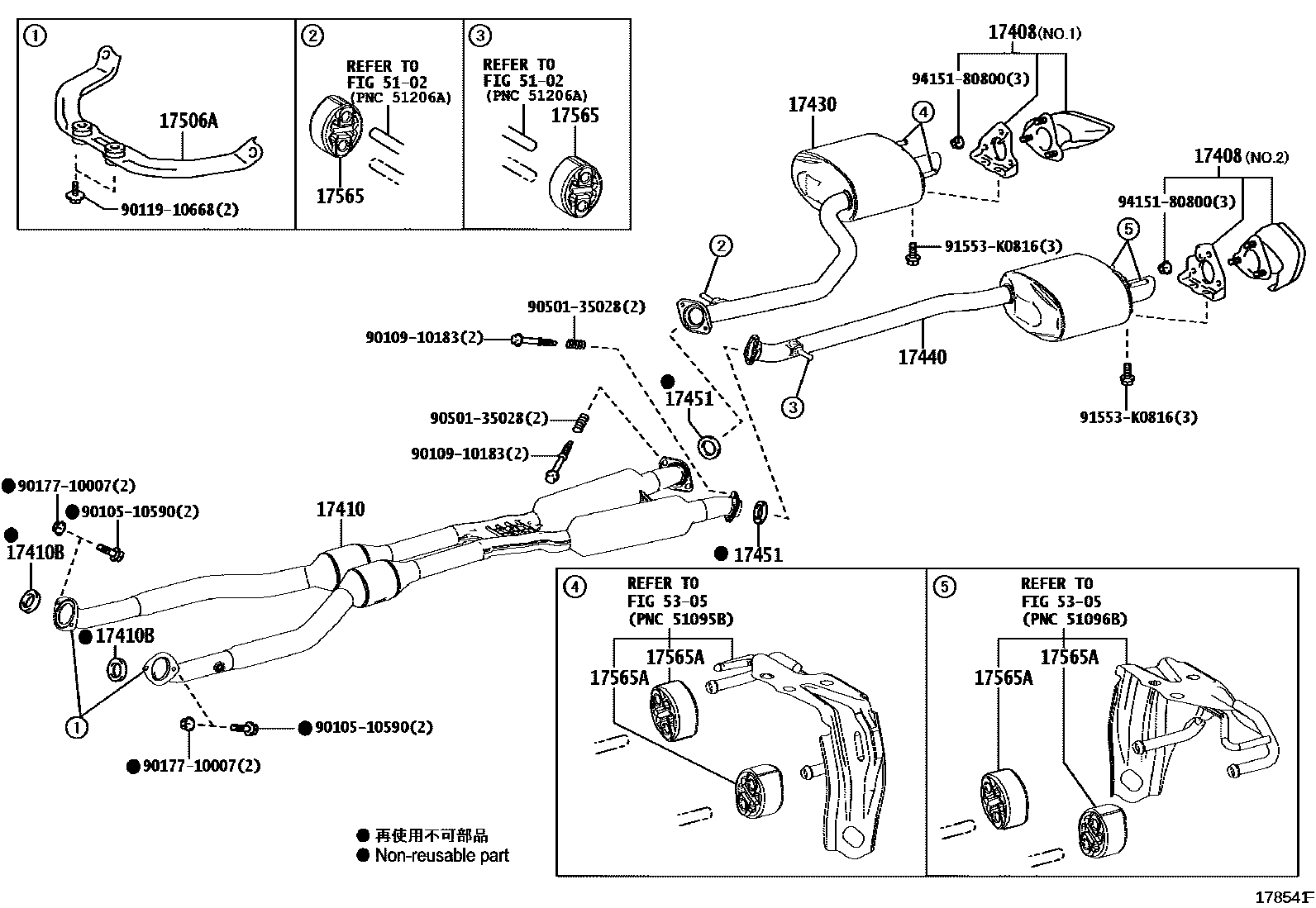

Toyota LEXUS RC3###/200T — EXHAUST PIPE

0001 1 0002 1 0003 1

17408BAFFLE SUB ASSY, EXHAUST TAILPIPE

main17408-31110i2GRFSE..GSC10201409-202008

NO.1:REFER ILLUST.

main17408-31120i2GRFSE..GSC10201409-202008

NO.2:REFER ILLUST.

17410PIPE ASSY, EXHAUST, FRONT

main17410-31B80i2GRFSE..GSC10201409-201711

main17410-36340i8ARFTS..ASC10..LHD201510-202008

main17410-36450i2ARFSE..AVC10201510-202008

*114=TOYOTA/UE6/Y

17410BGASKET, EXHAUST PIPE

main90917-06078i2GRFSE..GSC10201409-202008

main90917-06090i8ARFTS..ASC10..LHD201510-202008

17430PIPE ASSY, EXHAUST, TAIL

main17430-31D50i2GRFSE..GSC10201409-201711

main17430-36230i8ARFTS..ASC10..RHD201510-202008

main17430-36360i2ARFSE..AVC10201510-202008

17440PIPE, EXHAUST TAIL, LH

main17440-31210i2GRFSE..GSC10201409-201711

main17440-36050i2ARFSE..AVC10201510-202008

main17440-36110i8ARFTS..ASC10201510-202008

17451GASKET, EXHAUST PIPE

main17451-28032i2ARFSE..AVC10;8ARFTS..ASC10..LHD201409-202008

17506ABRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT

main17506-31110i2GRFSE..GSC10201409-201711

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-28010i2GRFSE..GSC10201409-202008

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-22040i2GRFSE..GSC10201409-202008

5102

5305

9010510590

main90105-10590

9010910183

main90109-10183

9011910668

main90119-10668

9017710007

main90177-10007

9050135028

main90501-35028

91553K0816

main91553-K0816

9415180800

main94151-80800

18 parts on this diagram · 3 diagrams in section
