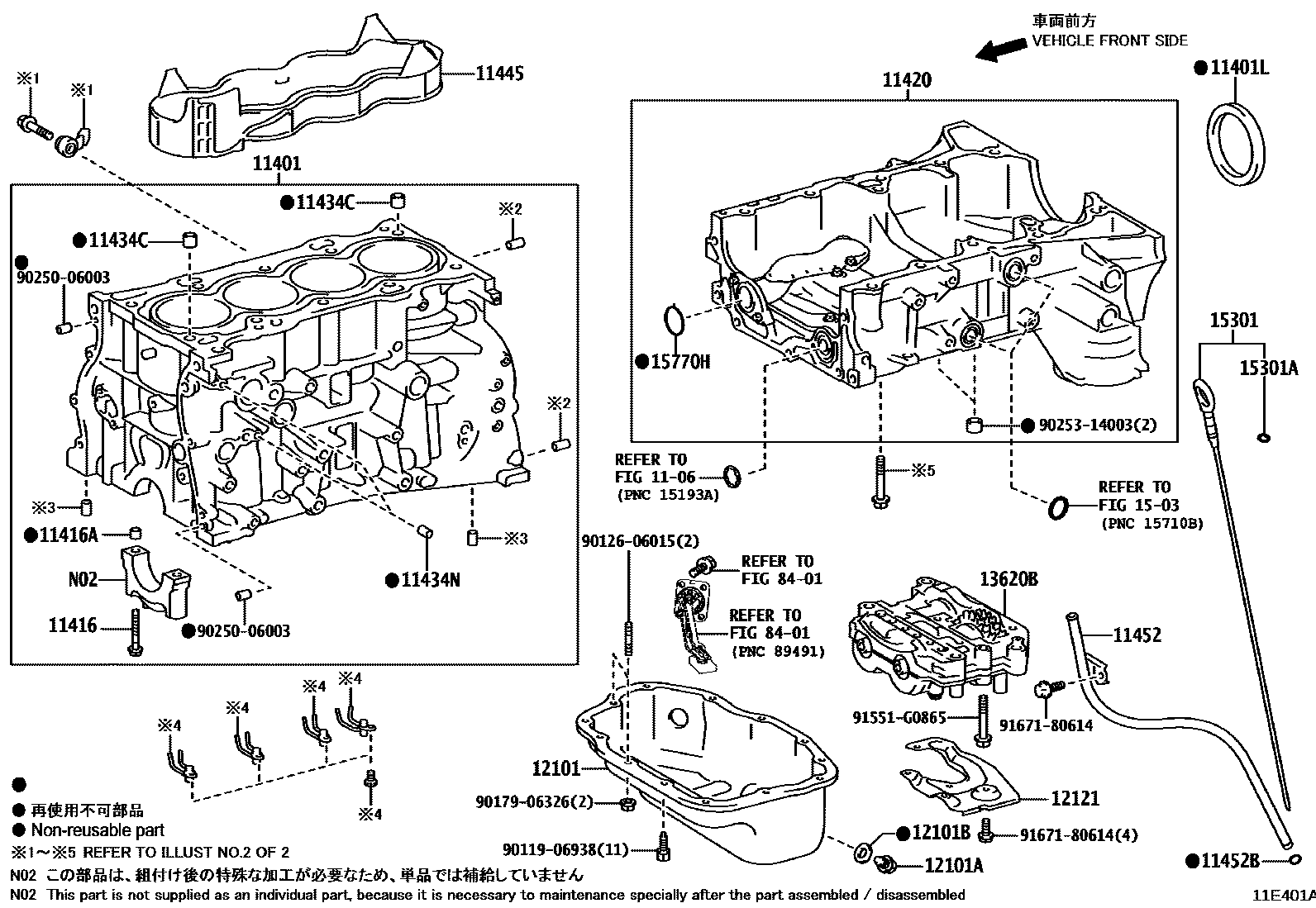

Toyota LEXUS RC3###/200T — CYLINDER BLOCK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

1106

11401BLOCK SUB-ASSY, CYLINDER

main11401-39776i2GRFSE..GSC10201409-201411

sub11401-39777

sub13011-31143

main11401-39777i2GRFSE..GSC10201411-201711

sub11401-39778

main11410-39146i2ARFSE..AVC10201510-202008

main11410-39215i8ARFTS..ASC10..LHD201510-202008

11401LSEAL, ENGINE REAR OIL

main90311-89014i8ARFTS..ASC10..RHD201510-202008

main90311-89015i2ARFSE..AVC10201510-202008

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02154i8ARFTS..ASC10201409-201711

main90910-02173i2ARFSE..AVC10201510-202008

main90910-02197i8ARFTS..ASC10..LHD201709-202008

11416APIN, RING(FOR CRANKSHAFT BEARING CAP SET)

main90253-13017i2ARFSE..AVC10201510-202008

main90253-14003i8ARFTS..ASC10201510-202008

11420CRANKCASE ASSY, STIFFENING

main11420-36030i2ARFSE..AVC10201510-202008

main11420-36070i8ARFTS..ASC10..LHD201510-202008

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90250-08120i2GRFSE..GSC10201409-201711

L=18,OD=8

main90253-15001i2ARFSE..AVC10;8ARFTS..ASC10..LHD201510-202008

L=14,OD=15

11434NPIN, STRAIGHT(FOR WATER INLET HOUSING)

main90250-06003i8ARFTS..ASC10..RHD201510-202008

11445SPACER, CYLINDER BLOCK WATER JACKET

main11445-36010i2ARFSE..AVC10201510-202008

main11445-36040i8ARFTS..ASC10201510-202008

11452GUIDE, OIL LEVEL GAGE

main11452-31040i2GRFSE..GSC10201409-201711

main11452-36030i2ARFSE..AVC10201510-202008

main11452-36070i8ARFTS..ASC10..LHD201510-202008

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main90301-12018i2GRFSE..GSC10201409-201711

main96723-19010i8ARFTS..ASC10..RHD201510-202008

main96741-19010i2ARFSE..AVC10201510-202008

12101PAN SUB-ASSY, OIL

main12101-31101i2GRFSE..GSC10201409-201711

main12101-36060i2ARFSE..AVC10201510-202008

main12101-36100i8ARFTS..ASC10..LHD201510-202008

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i2GRFSE..GSC10201409-202008

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i2GRFSE..GSC10201409-202008

12121PLATE, OIL PAN BAFFLE, NO.1

main12121-31080i2GRFSE..GSC10201409-201711

main12121-36040i8ARFTS..ASC10..RHD201510-202008

13620BBALANCER ASSY, ENGINE

main13620-36030i8ARFTS..ASC10..RHD201510-202008

1503

15301GAGE SUB-ASSY, OIL LEVEL

main15301-31080i2GRFSE..GSC10201409-201711

main15301-36041i8ARFTS..ASC10..RHD201510-202008

15301ARING, O(FOR OIL LEVEL GAGE)

main96741-19005i2GRFSE..GSC10201409-202008

15770HGASKET(FOR OIL PIPE)

main11496-36030i8ARFTS..ASC10..RHD201510-202008

main15157-36010i2ARFSE..AVC10201510-202008

8401

9011906938

main90119-06938

9012606015

main90126-06015

9017906326

main90179-06326

9025006003

main90250-06003

9025314003

main90253-14003

91551G0865

main91551-G0865

9167180614

main91671-80614

28 parts on this diagram · 7 diagrams in section
