Toyota LEXUS NX SERIES — METER

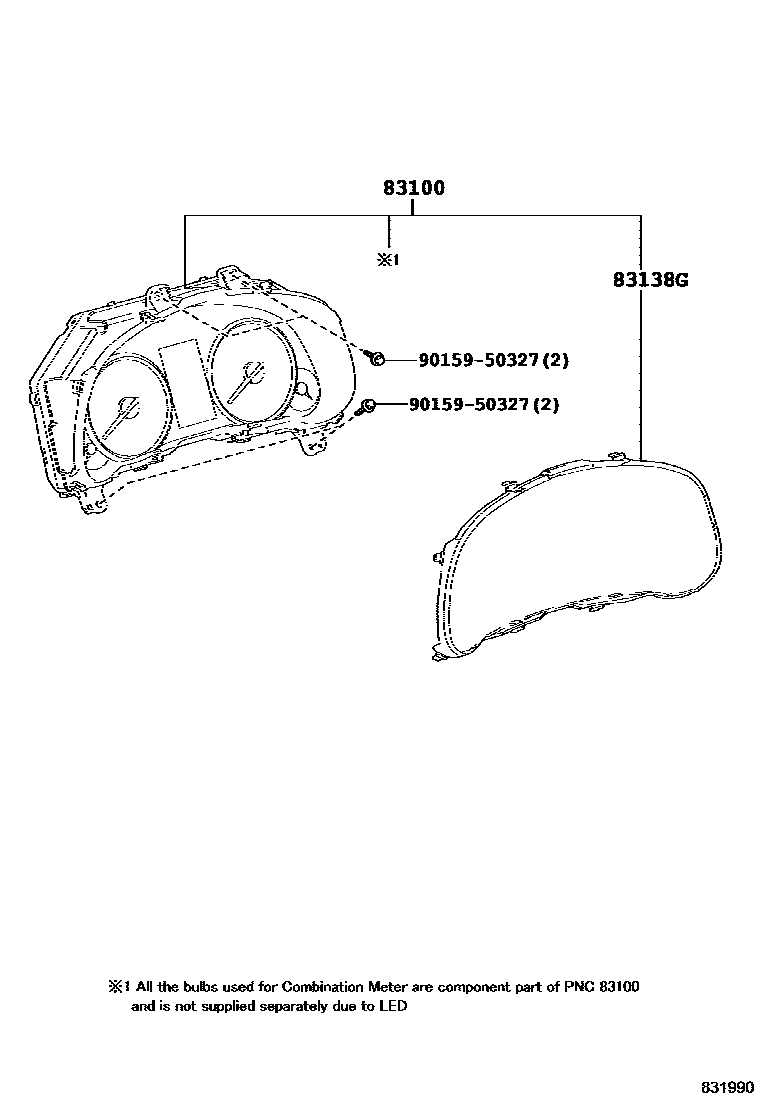

83100METER ASSY, COMBINATION

main83800-78080i201410-201509

main83800-78081i201509-201608

main83800-78010supersedes 83800-78310i201410-201509

NAVIGATION SYSTEM-WITH(SD NAVIGATION)

main83800-78011supersedes 83800-78311i201509-201709

NAVIGATION SYSTEM-WITH(SD NAVIGATION)

main83800-78020i201410-201509

CANADA SPEC; CANADA SPEC&NAVIGATION SYSTEM-WITH(SD NAVIGATION)

main83800-78021i201509-201709

CANADA SPEC; CANADA SPEC&NAVIGATION SYSTEM-WITH(SD NAVIGATION)

main83800-78030i201410-201509

KOREA SPEC&NAVIGATION SYSTEM-WITH(KOREA SPEC)

main83800-78031i201509-201709

KOREA SPEC&NAVIGATION SYSTEM-WITH(KOREA SPEC)

main83800-78090i201410-201509

CANADA SPEC

main83800-78091supersedes 83800-78081i201509-201709

CANADA SPEC

main83800-78100i201407-201509

KOREA SPEC&NAVIGATION SYSTEM-WITH(KOREA SPEC)

main83800-78101supersedes 83800-78081i201509-201709

KOREA SPEC&NAVIGATION SYSTEM-WITH(KOREA SPEC)

main83800-78150supersedes 83800-78310i201410-201509

F SPORT*(F); F SPORT*(F)&NAVIGATION SYSTEM-WITH(SD NAVIGATION)

main83800-78151supersedes 83800-78311i201509-201709

F SPORT*(F); F SPORT*(F)&NAVIGATION SYSTEM-WITH(SD NAVIGATION)

main83800-78160i201410-201509

CANADA SPEC&F SPORT*(F); CANADA SPEC&F SPORT*(F)&NAVIGATION SYSTEM-WITH(SD NAVIGATION)

main83800-78161i201509-201709

CANADA SPEC&F SPORT*(F); CANADA SPEC&F SPORT*(F)&NAVIGATION SYSTEM-WITH(SD NAVIGATION)

main83800-78170i201410-201509

KOREA SPEC&F SPORT*(F)&NAVIGATION SYSTEM-WITH(KOREA SPEC)

main83800-78171i201509-201709

KOREA SPEC&F SPORT*(F)&NAVIGATION SYSTEM-WITH(KOREA SPEC)

main83800-78340i201905-202007

DENSO,CANADA SPEC

main83800-78350i201905-202007

DENSO,KOREA SPEC&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY)

main83800-78460i201709-201805

DENSO,CANADA SPEC

main83800-78470i201709-201805

DENSO,KOREA SPEC&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY)

main83800-78520supersedes 83800-78510i201709-201805

DENSO,CANADA SPEC

main83800-78530supersedes 83800-78510i201709-201805

DENSO,KOREA SPEC&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY)

main83800-78570supersedes 83800-78450i201709-201805

DENSO,F SPORT

main83800-78580i201709-201805

DENSO,CANADA SPEC&F SPORT

main83800-78590i201709-201805

DENSO,KOREA SPEC&F SPORT&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY)

main83800-78710i201805-201905

DENSO,CANADA SPEC

main83800-78720i201805-201905

DENSO,KOREA SPEC&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY)

main83800-78760i202007-202012

DENSO,F SPORT

main83800-78761supersedes 83800-78G71i202101

DENSO,F SPORT

main83800-78770i202007-202012

DENSO,CANADA SPEC&F SPORT

main83800-78771supersedes 83800-78G71i202101

DENSO,CANADA SPEC&F SPORT

main83800-78860supersedes 83800-78750i201805-201905

DENSO,CANADA SPEC

main83800-78870supersedes 83800-78750i201805-201905

DENSO,KOREA SPEC&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY)

main83800-78A10supersedes 83800-78700i201805-201905

DENSO,F SPORT

main83800-78A20i201805-201905

DENSO,CANADA SPEC&F SPORT

main83800-78A30i201805-201905

DENSO,KOREA SPEC&F SPORT&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY)

main83800-78B60supersedes 83800-78380i201905-202007

DENSO,CANADA SPEC

main83800-78B70supersedes 83800-78380i201905-202007

DENSO,KOREA SPEC&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY)

main83800-78C10supersedes 83800-78330i201905-202007

DENSO,F SPORT

main83800-78C20i201905-202007

DENSO,CANADA SPEC&F SPORT

main83800-78C30i201905-202007

DENSO,KOREA SPEC&F SPORT&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY)

main83800-78G30i202007-202012

DENSO,CANADA SPEC

main83800-78G31i202101

DENSO,CANADA SPEC

main83800-78G40i202007-202012

DENSO,KOREA SPEC&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY)

main83800-78G41i202101

DENSO,KOREA SPEC&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY)

main83800-78G80supersedes 83800-78G71i202007-202012

DENSO,CANADA SPEC

main83800-78G81supersedes 83800-78G71i202101

DENSO,CANADA SPEC

main83800-78G90supersedes 83800-78G71i202007-202012

DENSO,KOREA SPEC&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY)

main83800-78G91supersedes 83800-78G71i202101

DENSO,KOREA SPEC&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY)

main83800-78J30supersedes 83800-78G21i202007-202012

DENSO,F SPORT

main83800-78J31supersedes 83800-78G21i202101

DENSO,F SPORT

main83800-78J40i202007-202012

DENSO,CANADA SPEC&F SPORT

main83800-78J41i202101

DENSO,CANADA SPEC&F SPORT

main83800-78J50i202007-202012

DENSO,KOREA SPEC&F SPORT&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY)

main83800-78J51i202101

DENSO,KOREA SPEC&F SPORT&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY)

83138GGLASS, COMBINATION METER

main83852-78010i201709

9015950327

main90159-50327

3 parts on this diagram · 2 diagrams in section

METER for Toyota LEXUS NX SERIES

This section contains 6 genuine Toyota parts for the METER system of the Toyota LEXUS NX SERIES. Key components include: METER ASSY, COMBINATION, MIRROR SUB-ASSY, METER, GLASS, COMBINATION METER, COMPUTER, COMBINATION METER MIRROR, PLATE, COMBINATION METER MIRROR, NO.1.
