Toyota LEXUS NX SERIES — PARTIAL ENGINE ASSEMBLY

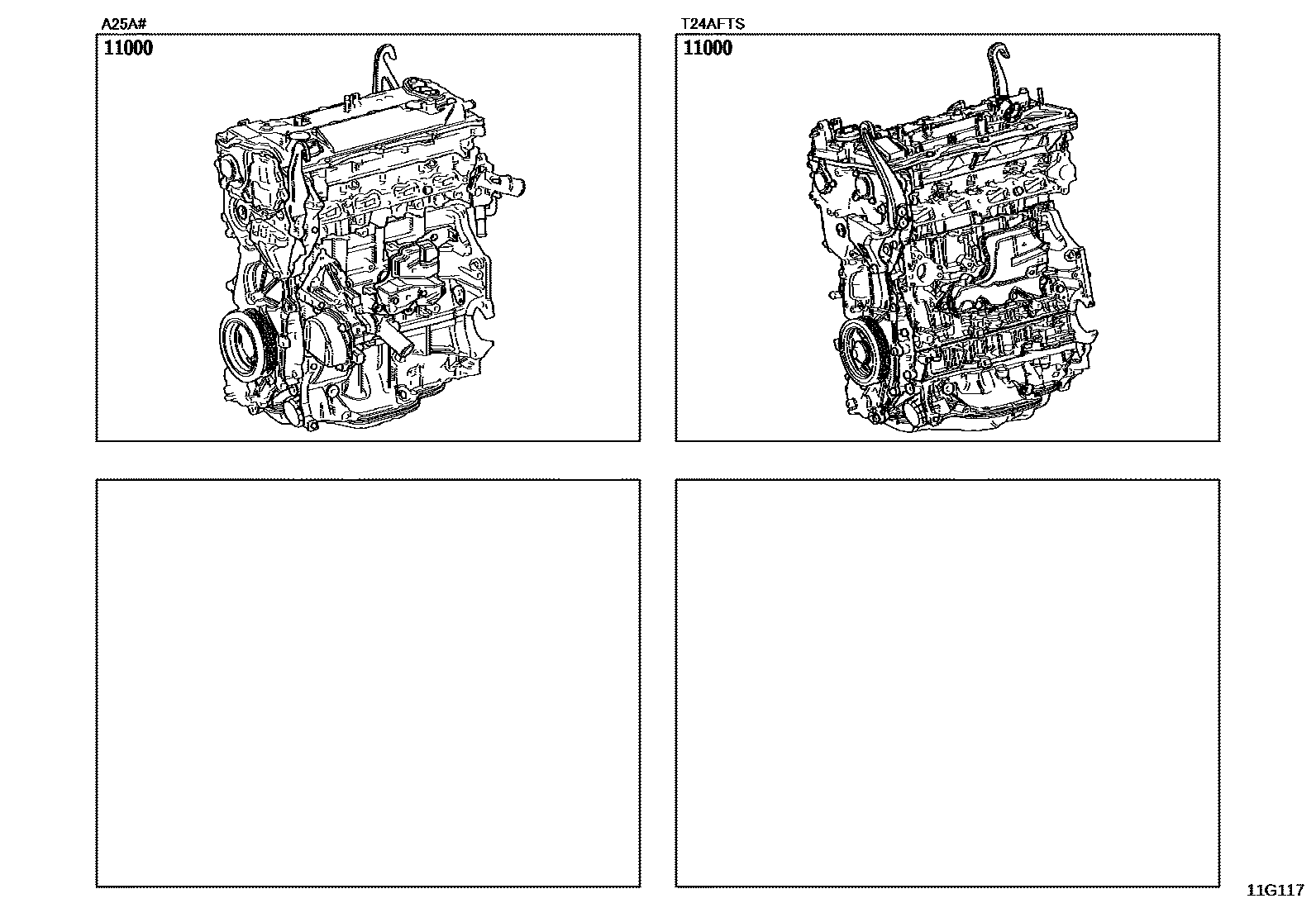

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-25320i202403
main19000-25340i202111-202212
main19000-25360i202111-202212
main19000-2E010i202301-202403
main19000-2E020i202301-202403

1 parts on this diagram · 1 diagram in section

PARTIAL ENGINE ASSEMBLY for Toyota LEXUS NX SERIES

This section contains 1 genuine Toyota parts for the PARTIAL ENGINE ASSEMBLY system of the Toyota LEXUS NX SERIES. Key components include: ENGINE ASSY, PARTIAL.
