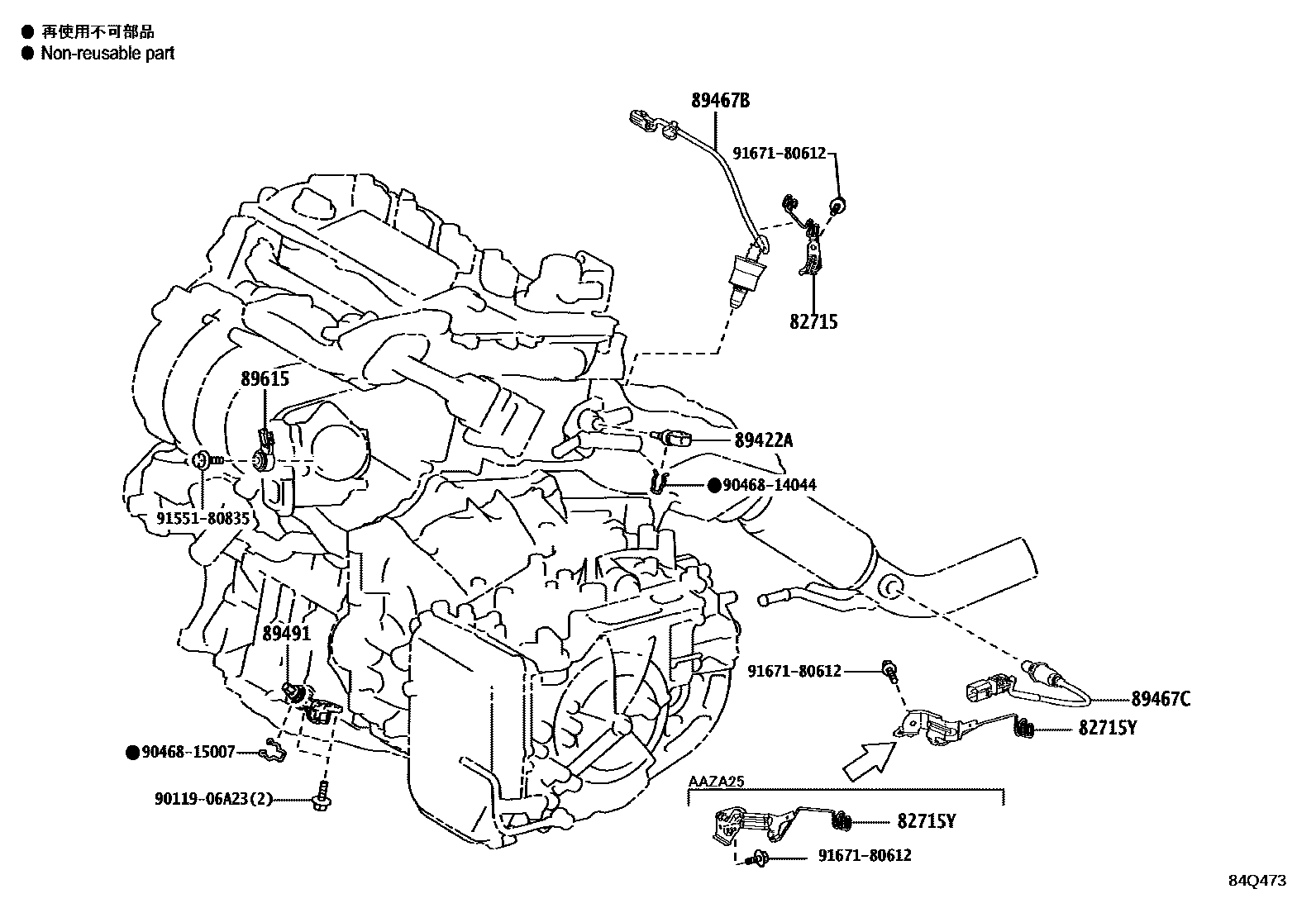

Toyota LEXUS NX SERIES — SWITCH & RELAY & COMPUTER
82715BRACKET,WIRING HARNESS CLAMP
TAIWAN SPEC
82715YBRACKET, WIRING HARNESS CLAMP, NO.3
89422ASENSOR, WATER TEMPERATURE
89467BSENSOR, AIR FUEL RATIO
TAIWAN SPEC
89467CSENSOR, AIR FUEL RATIO, NO.2
89491SENSOR, ENGINE OIL LEVEL
89615SENSOR, KNOCK CONTROL
9011906A23
main90119-06A23
9046814044
main90468-14044
9046815007
main90468-15007
9155180835
main91551-80835
9167180612
main91671-80612
12 parts on this diagram · 28 diagrams in section
SWITCH & RELAY & COMPUTER for Toyota LEXUS NX SERIES
This section contains 217 genuine Toyota parts for the SWITCH & RELAY & COMPUTER system of the Toyota LEXUS NX SERIES. Key components include: VACUUM PIPING, RELAY ASSY, STARTER, RELAY, IGNITION, NO.3, RELAY, IGB, RELAY, IGP.
