Toyota LEXUS NX SERIES — METER

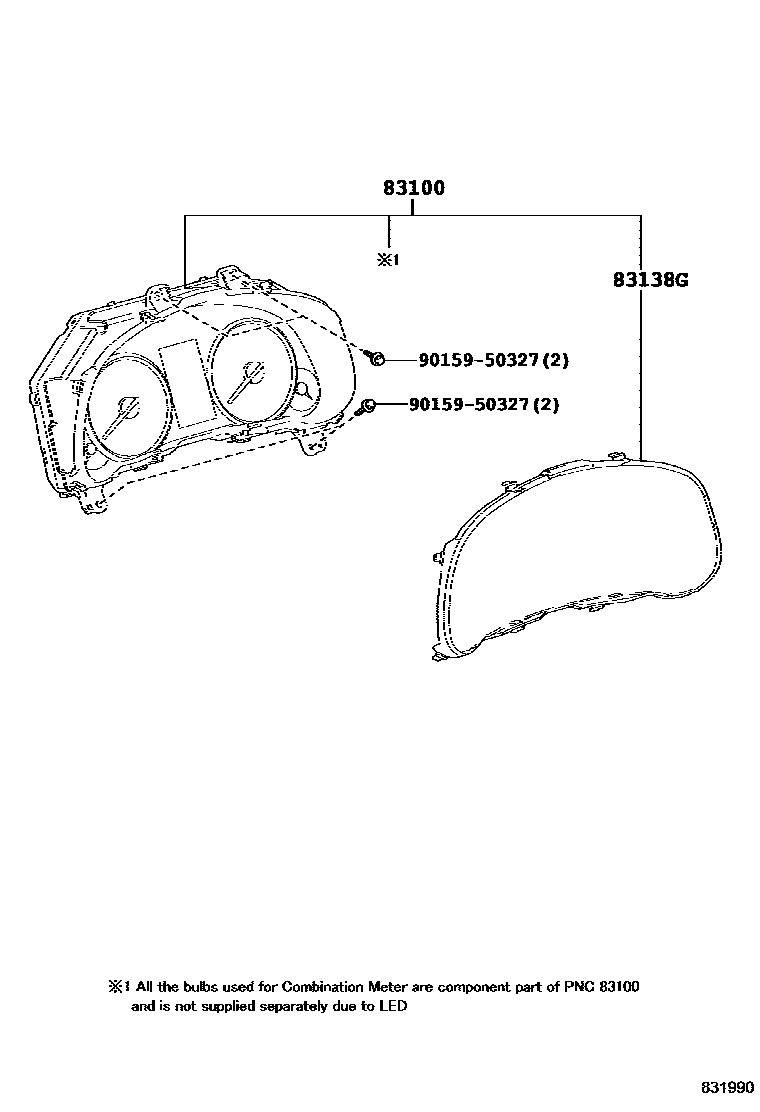

Parts diagram
83100METER ASSY, COMBINATION
main83800-78100i201407-201509
main83800-78101i201509-201709
main83800-78300i201412-201509
main83800-78301i201509-201709
main83800-78530i201709-201805
DENSO
main83800-78680i201709-201805
DENSO
main83800-78870i201805-201905
DENSO
main83800-78B10i201805-201811
DENSO
main83800-78B11i201812-201905
DENSO
main83800-78B70i201905-202007
DENSO
main83800-78D10i201905-202007
DENSO
main83800-78G90i202007-202012
DENSO
main83800-78G91i202101
DENSO
main83800-78K30i202007-202012
DENSO
main83800-78K31i202101
DENSO
main83800-78170supersedes 83800-78030i201412-201509
F SPORT*(F)
main83800-78171supersedes 83800-78031i201509-201709
F SPORT*(F)
main83800-78240i201407-201509
F SPORT*(F)
main83800-78241i201608-201609
F SPORT*(F)
main83800-78420i201609-201709
F SPORT*(F)
main83800-78590supersedes 83800-78470i201709-201805
DENSO,F SPORT
main83800-78630i201709-201805
DENSO,F SPORT
main83800-78A30supersedes 83800-78720i201805-201905
DENSO,F SPORT
main83800-78A60i201805-201905
DENSO,F SPORT
main83800-78C30supersedes 83800-78350i201905-202007
DENSO,F SPORT
main83800-78C60i201905-202007
DENSO,F SPORT
main83800-78J50supersedes 83800-78G41i202007-202012
DENSO,F SPORT
main83800-78J51supersedes 83800-78G41i202101
DENSO,F SPORT
main83800-78J80i202007-202012
DENSO,F SPORT
main83800-78J81i202101
DENSO,F SPORT
83138GGLASS, COMBINATION METER
main83852-78010i201709
9015950327
main90159-50327

3 parts on this diagram · 2 diagrams in section

METER for Toyota LEXUS NX SERIES

This section contains 6 genuine Toyota parts for the METER system of the Toyota LEXUS NX SERIES. Key components include: METER ASSY, COMBINATION, MIRROR SUB-ASSY, METER, GLASS, COMBINATION METER, COMPUTER, COMBINATION METER MIRROR, PLATE, COMBINATION METER MIRROR, NO.1.
