Toyota LEXUS NX SERIES — ECO-RUN SYSTEM

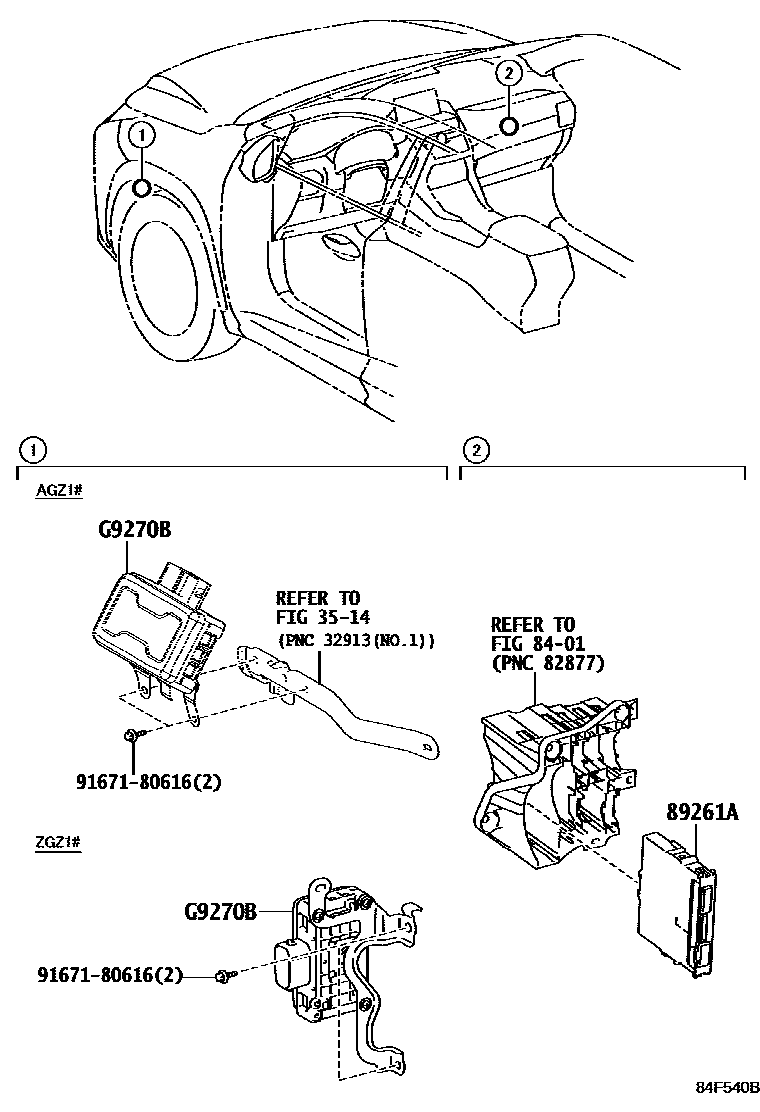

Parts diagram

3514OIL COOLER & TUBE (ATM)

→ Go to FIG 35-14

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89261ACOMPUTER, ENGINE STOP AND START

main89260-78010i201412-201709

BRUNEI SPEC; INDONESIA SPEC; MALAYSIA SPEC

main89260-78020i201412-201709

main89260-78030i201709

main89260-78040i201709

INDONESIA SPEC

G9270BCONVERTER ASSY, ECO RUN VEHICLE

mainG92C078010i201412-201709

BRUNEI SPEC; INDONESIA SPEC; MALAYSIA SPEC

mainG92C078020i201412-201709

9167180616

main91671-80616

5 parts on this diagram · 2 diagrams in section

ECO-RUN SYSTEM for Toyota LEXUS NX SERIES

This section contains 9 genuine Toyota parts for the ECO-RUN SYSTEM system of the Toyota LEXUS NX SERIES. Key components include: OIL COOLER & TUBE (ATM), SWITCH & RELAY & COMPUTER, COMPUTER, ENGINE STOP AND START, CONVERTER ASSY, ECO RUN VEHICLE, BRACKET, OIL COOLER.
