Toyota LEXUS NX SERIES — METER

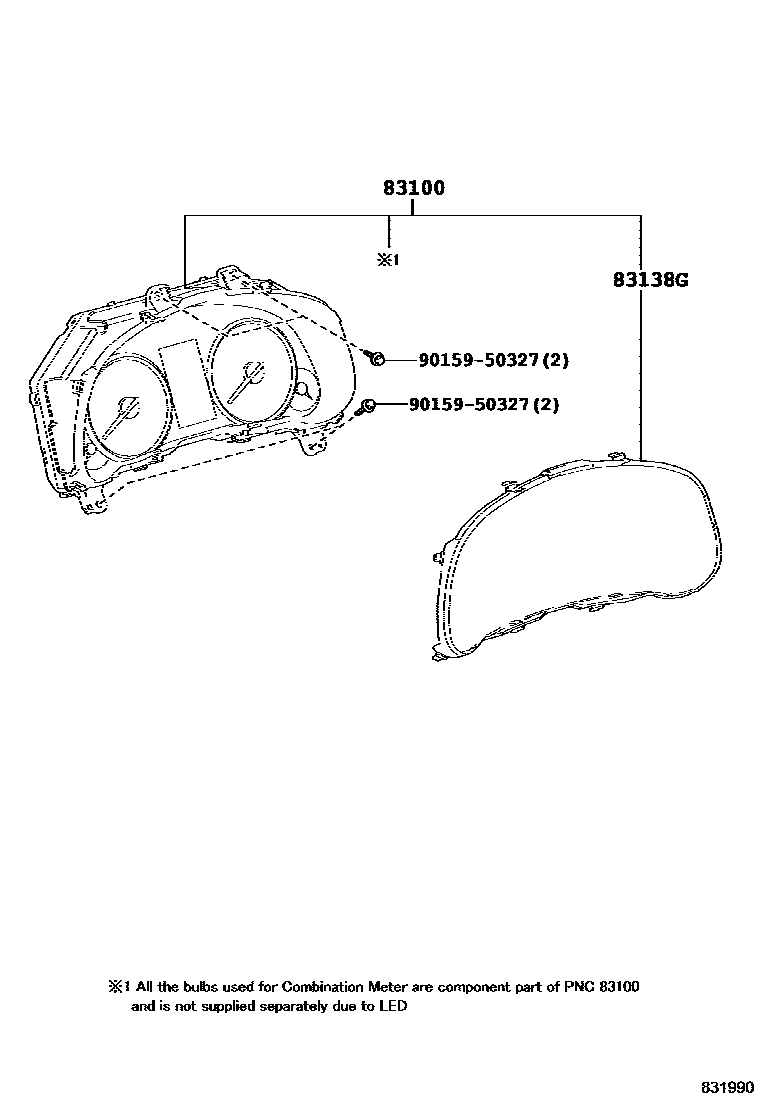

Parts diagram
83100METER ASSY, COMBINATION
main83800-78120supersedes 83800-78130i201407-201509
CYPRUS,MALTA SPEC; IRELAND SPEC
main83800-78121i201509-201609
CYPRUS,MALTA SPEC; IRELAND SPEC
main83800-78131i201509-201709
INDIA SPEC; INDIA SPEC&F SPORT*(F)
main83800-78290i201410-201509
main83800-78291i201509-201709
main83800-78320i201609-201709
CYPRUS,MALTA SPEC; IRELAND SPEC
main83800-78B00i201805-201905
DENSO
main83800-78D00i201905-202007
DENSO
main83800-78K20i202007-202012
DENSO
main83800-78K21i202101
DENSO
main83800-78030i201412-201509
CHILE SPEC; PERU SPEC; TAIWAN SPEC; VIETNAM SPEC
main83800-78031i201509-201709
CHILE SPEC; PERU SPEC; TAIWAN SPEC; VIETNAM SPEC
main83800-78050i201412-201509
CYPRUS,MALTA SPEC; IRELAND SPEC
main83800-78051i201509-201609
CYPRUS,MALTA SPEC; IRELAND SPEC
main83800-78100i201407-201509
CHILE SPEC; TAIWAN SPEC
main83800-78101i201509-201709
CHILE SPEC; TAIWAN SPEC
main83800-78130i201407-201509
INDIA SPEC; INDIA SPEC&F SPORT*(F)
main83800-78170supersedes 83800-78050i201412-201509
CHILE SPEC&F SPORT*(F); PERU SPEC&F SPORT*(F); TAIWAN SPEC&F SPORT*(F); VIETNAM SPEC&F SPORT*(F)
main83800-78171i201509-201709
CHILE SPEC&F SPORT*(F); PERU SPEC&F SPORT*(F); TAIWAN SPEC&F SPORT*(F); VIETNAM SPEC&F SPORT*(F)
main83800-78190i201412-201509
CYPRUS,MALTA SPEC&F SPORT*(F); F SPORT*(F); IRELAND SPEC&F SPORT*(F)
main83800-78191i201509-201609
CYPRUS,MALTA SPEC&F SPORT*(F); F SPORT*(F); IRELAND SPEC&F SPORT*(F)
main83800-78200i201412-201509
F SPORT*(F)
main83800-78201supersedes 83800-78061i201509-201709
F SPORT*(F)
main83800-78220i201609-201709
CYPRUS,MALTA SPEC; IRELAND SPEC
main83800-78240i201407-201509
CHILE SPEC&F SPORT*(F); TAIWAN SPEC&F SPORT*(F)
main83800-78241i201509-201609
CHILE SPEC&F SPORT*(F); TAIWAN SPEC&F SPORT*(F)
main83800-78260i201407-201509
CYPRUS,MALTA SPEC&F SPORT*(F); F SPORT*(F); IRELAND SPEC&F SPORT*(F)
main83800-78261i201509-201609
CYPRUS,MALTA SPEC&F SPORT*(F); F SPORT*(F); IRELAND SPEC&F SPORT*(F)
main83800-78270i201407-201509
F SPORT*(F)
main83800-78271i201509-201709
F SPORT*(F)
main83800-78350i201905-202007
DENSO,ARGENTINA SPEC; DENSO,CHILE SPEC; DENSO,PERU SPEC; DENSO,VIETNAM SPEC
main83800-78400i201609-201709
CYPRUS,MALTA SPEC&F SPORT*(F); F SPORT*(F); IRELAND SPEC&F SPORT*(F)
main83800-78420i201609-201709
CHILE SPEC&F SPORT*(F); TAIWAN SPEC&F SPORT*(F)
main83800-78430i201609-201709
CYPRUS,MALTA SPEC&F SPORT*(F); F SPORT*(F); IRELAND SPEC&F SPORT*(F)
main83800-78470supersedes 83800-78480i201709-201805
DENSO,CHILE SPEC; DENSO,PERU SPEC; DENSO,VIETNAM SPEC
main83800-78530i201709-201805
DENSO,CHILE SPEC; DENSO,INDIA SPEC&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY); DENSO,MOROCCO SPEC; DENSO,PERU SPEC
main83800-78540supersedes 83800-78550i201709-201805
DENSO; DENSO,CYPRUS, MALTA SPEC; DENSO,IRELAND SPEC
main83800-78590supersedes 83800-78480i201709-201805
DENSO,CHILE SPEC&F SPORT; DENSO,PERU SPEC&F SPORT; DENSO,VIETNAM SPEC&F SPORT
main83800-78600supersedes 83800-78480i201709-201805
DENSO,F SPORT
main83800-78630i201709-201805
DENSO,CHILE SPEC&F SPORT; DENSO,INDIA SPEC&F SPORT&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY); DENSO,MOROCCO SPEC&F SPORT; DENSO,PERU SPEC&F SPORT
main83800-78640i201709-201805
DENSO,CYPRUS, MALTA SPEC&F SPORT; DENSO,F SPORT; DENSO,IRELAND SPEC&F SPORT
main83800-78650i201709-201805
DENSO,F SPORT
main83800-78680supersedes 83800-78670i201709-201805
DENSO,TAIWAN SPEC
main83800-78720supersedes 83800-78730i201805-201905
DENSO,CHILE SPEC; DENSO,PERU SPEC; DENSO,VIETNAM SPEC
main83800-78820supersedes 83800-78480i201709-201805
DENSO,TAIWAN SPEC
main83800-78830i201709-201805
DENSO,TAIWAN SPEC
main83800-78840supersedes 83800-78480i201709-201805
DENSO,TAIWAN SPEC&F SPORT
main83800-78850i201709-201805
DENSO,TAIWAN SPEC&F SPORT
main83800-78870i201805-201905
DENSO,CHILE SPEC; DENSO,INDIA SPEC&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY); DENSO,MOROCCO SPEC; DENSO,PERU SPEC
main83800-78880supersedes 83800-78890i201805-201905
DENSO; DENSO,CYPRUS, MALTA SPEC; DENSO,IRELAND SPEC
main83800-78A30supersedes 83800-78730i201805-201905
DENSO,CHILE SPEC&F SPORT; DENSO,PERU SPEC&F SPORT; DENSO,VIETNAM SPEC&F SPORT
main83800-78A40supersedes 83800-78730i201805-201905
DENSO,F SPORT
main83800-78A60i201805-201905
DENSO,CHILE SPEC&F SPORT; DENSO,INDIA SPEC&F SPORT&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY); DENSO,MOROCCO SPEC&F SPORT; DENSO,PERU SPEC&F SPORT
main83800-78A70i201805-201905
DENSO,CYPRUS, MALTA SPEC&F SPORT; DENSO,F SPORT; DENSO,IRELAND SPEC&F SPORT
main83800-78A80i201805-201905
DENSO,F SPORT
main83800-78B10i201805-201811
DENSO,TAIWAN SPEC
main83800-78B11i201812-201905
DENSO,TAIWAN SPEC
main83800-78B20i201805-201811
DENSO,TAIWAN SPEC
main83800-78B21i201812-201905
DENSO,TAIWAN SPEC
main83800-78B30i201805-201811
DENSO,TAIWAN SPEC
main83800-78B31i201812-201905
DENSO,TAIWAN SPEC
main83800-78B40i201805-201811
DENSO,TAIWAN SPEC&F SPORT
main83800-78B41i201812-201905
DENSO,TAIWAN SPEC&F SPORT
main83800-78B50i201805-201811
DENSO,TAIWAN SPEC&F SPORT
main83800-78B51i201812-201905
DENSO,TAIWAN SPEC&F SPORT
main83800-78B70i201905-202007
DENSO,ARGENTINA SPEC; DENSO,CHILE SPEC; DENSO,INDIA SPEC&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY); DENSO,MOROCCO SPEC; DENSO,PERU SPEC
main83800-78B80supersedes 83800-78B90i201905-202007
DENSO; DENSO,CYPRUS, MALTA SPEC; DENSO,IRELAND SPEC
main83800-78C30i201905-202007
DENSO,ARGENTINA SPEC&F SPORT; DENSO,CHILE SPEC&F SPORT; DENSO,PERU SPEC&F SPORT; DENSO,VIETNAM SPEC&F SPORT
main83800-78C40supersedes 83800-78360i201905-202007
DENSO,F SPORT
main83800-78C60i201905-202007
DENSO,ARGENTINA SPEC&F SPORT; DENSO,CHILE SPEC&F SPORT; DENSO,INDIA SPEC&F SPORT&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY); DENSO,MOROCCO SPEC&F SPORT; DENSO,PERU SPEC&F SPORT
main83800-78C70i201905-202007
DENSO,CYPRUS, MALTA SPEC&F SPORT; DENSO,F SPORT; DENSO,IRELAND SPEC&F SPORT
main83800-78C80i201905-202007
DENSO,F SPORT
main83800-78D10i201905-202007
DENSO,TAIWAN SPEC
main83800-78D20supersedes 83800-78360i201905-202007
DENSO,TAIWAN SPEC
main83800-78D30i201905-202007
DENSO,TAIWAN SPEC
main83800-78D40supersedes 83800-78360i201905-202007
DENSO,TAIWAN SPEC&F SPORT
main83800-78D50i201905-202007
DENSO,TAIWAN SPEC&F SPORT
main83800-78G40i202007-202012
DENSO,ARGENTINA SPEC; DENSO,CHILE SPEC; DENSO,PERU SPEC; DENSO,VIETNAM SPEC
main83800-78G41i202101
DENSO,ARGENTINA SPEC; DENSO,CHILE SPEC; DENSO,PERU SPEC; DENSO,VIETNAM SPEC
main83800-78G90i202007-202012
DENSO,ARGENTINA SPEC; DENSO,CHILE SPEC; DENSO,INDIA SPEC&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY); DENSO,MOROCCO SPEC; DENSO,PERU SPEC
main83800-78G91i202101
DENSO,ARGENTINA SPEC; DENSO,CHILE SPEC; DENSO,INDIA SPEC&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY); DENSO,MOROCCO SPEC; DENSO,PERU SPEC
main83800-78J00supersedes 83800-78J11i202007-202012
DENSO; DENSO,CYPRUS, MALTA SPEC; DENSO,IRELAND SPEC
main83800-78J01supersedes 83800-78J11i202101
DENSO; DENSO,CYPRUS, MALTA SPEC; DENSO,IRELAND SPEC
main83800-78J50supersedes 83800-78G51i202007-202012
DENSO,ARGENTINA SPEC&F SPORT; DENSO,CHILE SPEC&F SPORT; DENSO,PERU SPEC&F SPORT; DENSO,VIETNAM SPEC&F SPORT
main83800-78J51i202101
DENSO,ARGENTINA SPEC&F SPORT; DENSO,CHILE SPEC&F SPORT; DENSO,PERU SPEC&F SPORT; DENSO,VIETNAM SPEC&F SPORT
main83800-78J60supersedes 83800-78G51i202007-202012
DENSO,F SPORT
main83800-78J61supersedes 83800-78G51i202101
DENSO,F SPORT
main83800-78J80i202007-202012
DENSO,ARGENTINA SPEC&F SPORT; DENSO,CHILE SPEC&F SPORT; DENSO,INDIA SPEC&F SPORT&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY); DENSO,MOROCCO SPEC&F SPORT; DENSO,PERU SPEC&F SPORT
main83800-78J81i202101
DENSO,ARGENTINA SPEC&F SPORT; DENSO,CHILE SPEC&F SPORT; DENSO,INDIA SPEC&F SPORT&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY); DENSO,MOROCCO SPEC&F SPORT; DENSO,PERU SPEC&F SPORT
main83800-78J90i202007-202012
DENSO,CYPRUS, MALTA SPEC&F SPORT; DENSO,F SPORT; DENSO,IRELAND SPEC&F SPORT
main83800-78J91i202101
DENSO,CYPRUS, MALTA SPEC&F SPORT; DENSO,F SPORT; DENSO,IRELAND SPEC&F SPORT
main83800-78K00i202007-202012
DENSO,F SPORT
main83800-78K01i202101
DENSO,F SPORT
main83800-78K30i202007-202012
DENSO,TAIWAN SPEC
main83800-78K31i202101
DENSO,TAIWAN SPEC
main83800-78K40i202007-202012
DENSO,TAIWAN SPEC
main83800-78K41i202101
DENSO,TAIWAN SPEC
main83800-78K50i202007-202012
DENSO,TAIWAN SPEC&F SPORT
main83800-78K51i202101
DENSO,TAIWAN SPEC&F SPORT
83138GGLASS, COMBINATION METER
main83852-78010i201407-201709
INDIA SPEC; INDIA SPEC&F SPORT*(F)
9015950327
main90159-50327

3 parts on this diagram · 2 diagrams in section

METER for Toyota LEXUS NX SERIES

This section contains 6 genuine Toyota parts for the METER system of the Toyota LEXUS NX SERIES. Key components include: METER ASSY, COMBINATION, MIRROR SUB-ASSY, METER, GLASS, COMBINATION METER, COMPUTER, COMBINATION METER MIRROR, PLATE, COMBINATION METER MIRROR, NO.1.
