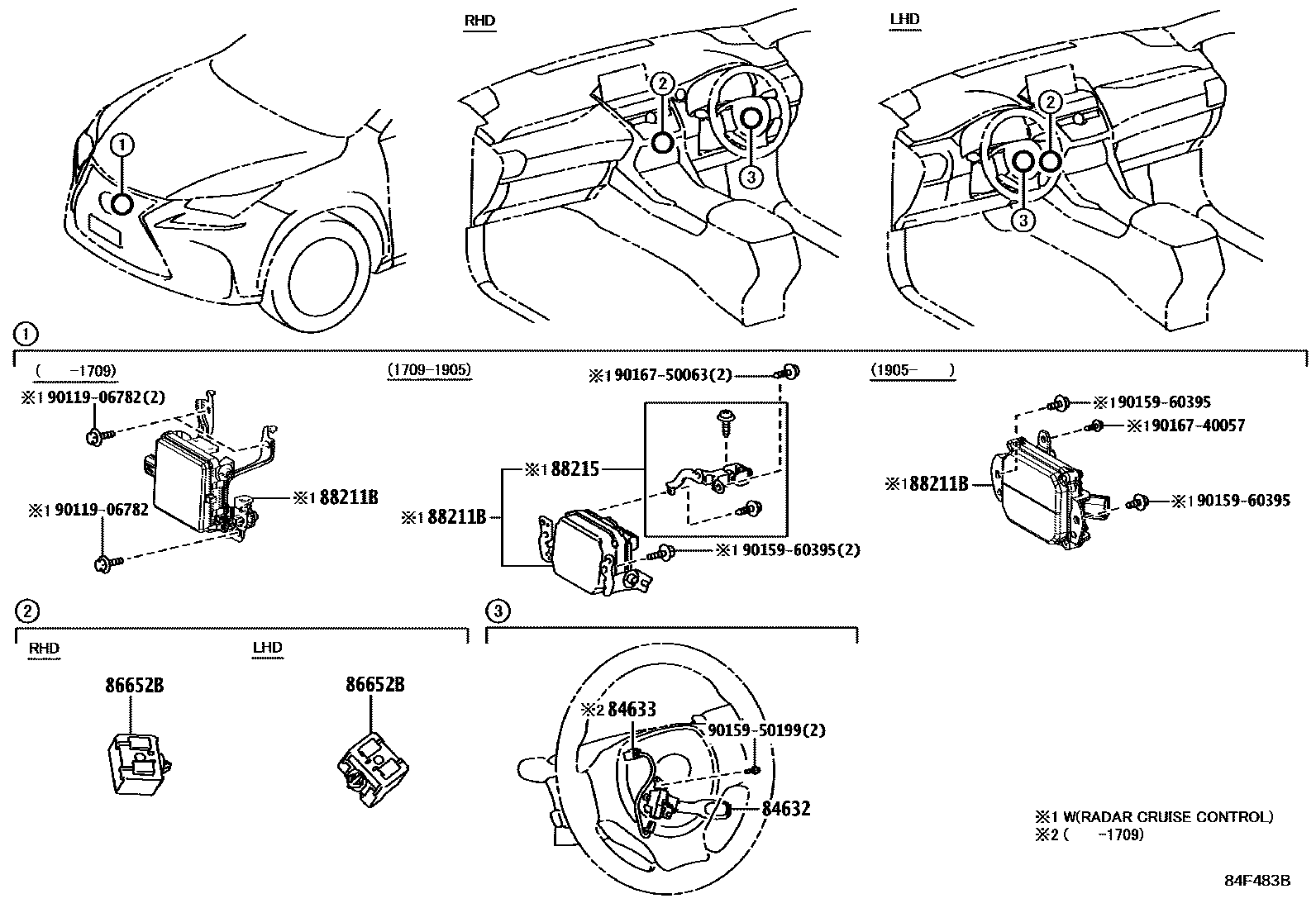

Toyota LEXUS NX SERIES — CRUISE CONTROL (AUTO DRIVE)
84632SWITCH, CRUISE CONTROL MAIN
CRUISE CONTROL-WITH
CRUISE CONTROL-*MRT(WITH LOW SPEED LIMIT CONTROL); CRUISE CONTROL-*MRT(WITHOUT LOW SPEED LIMIT CONTROL)
ESTONIA, LATVIA, LITHUANIA SPEC&PRE-COLLISION SYSTEM-WITH
84633WIRE, CRUISE CONTROL SWITCH
CRUISE CONTROL-WITH
CRUISE CONTROL-*MRT(WITH LOW SPEED LIMIT CONTROL); CRUISE CONTROL-*MRT(WITHOUT LOW SPEED LIMIT CONTROL)
86652BBUZZER, SKID CONTROL
PRE-COLLISION SYSTEM-WITH(*PBA & *PB)
88211BSENSOR ASSY, MILLIMETER WAVE RADAR
ARMENIA SPEC&PRE-COLLISION SYSTEM-WITH; BELARUS, KAZAKHSTAN SPEC&PRE-COLLISION SYSTEM-WITH; TAIWAN SPEC&PRE-COLLISION SYSTEM-WITH
CHILE SPEC&PRE-COLLISION SYSTEM-WITH
TAIWAN SPEC&PRE-COLLISION SYSTEM-WITH
PRE-COLLISION SYSTEM-WITH; RUSSIA SPEC&PRE-COLLISION SYSTEM-WITH
CRUISE CONTROL-*MRT(WITH LOW SPEED LIMIT CONTROL); CRUISE CONTROL-*MRT(WITHOUT LOW SPEED LIMIT CONTROL)
CRUISE CONTROL-*MRT(WITH LOW SPEED LIMIT CONTROL); CRUISE CONTROL-*MRT(WITHOUT LOW SPEED LIMIT CONTROL)
88215BRACKET, MILLIMETER WAVE RADAR SENSOR, NO.1
TAIWAN SPEC&PRE-COLLISION SYSTEM-WITH
9011906782
main90119-06782
9015950199
main90159-50199
9015960395
main90159-60395
9016740057
main90167-40057
9016750063
main90167-50063
10 parts on this diagram · 1 diagram in section
CRUISE CONTROL (AUTO DRIVE) for Toyota LEXUS NX SERIES
This section contains 10 genuine Toyota parts for the CRUISE CONTROL (AUTO DRIVE) system of the Toyota LEXUS NX SERIES. Key components include: SWITCH, CRUISE CONTROL MAIN, WIRE, CRUISE CONTROL SWITCH, BUZZER, SKID CONTROL, SENSOR ASSY, MILLIMETER WAVE RADAR, BRACKET, MILLIMETER WAVE RADAR SENSOR, NO.1.
