Toyota LEXUS NX SERIES(TMMC — METER

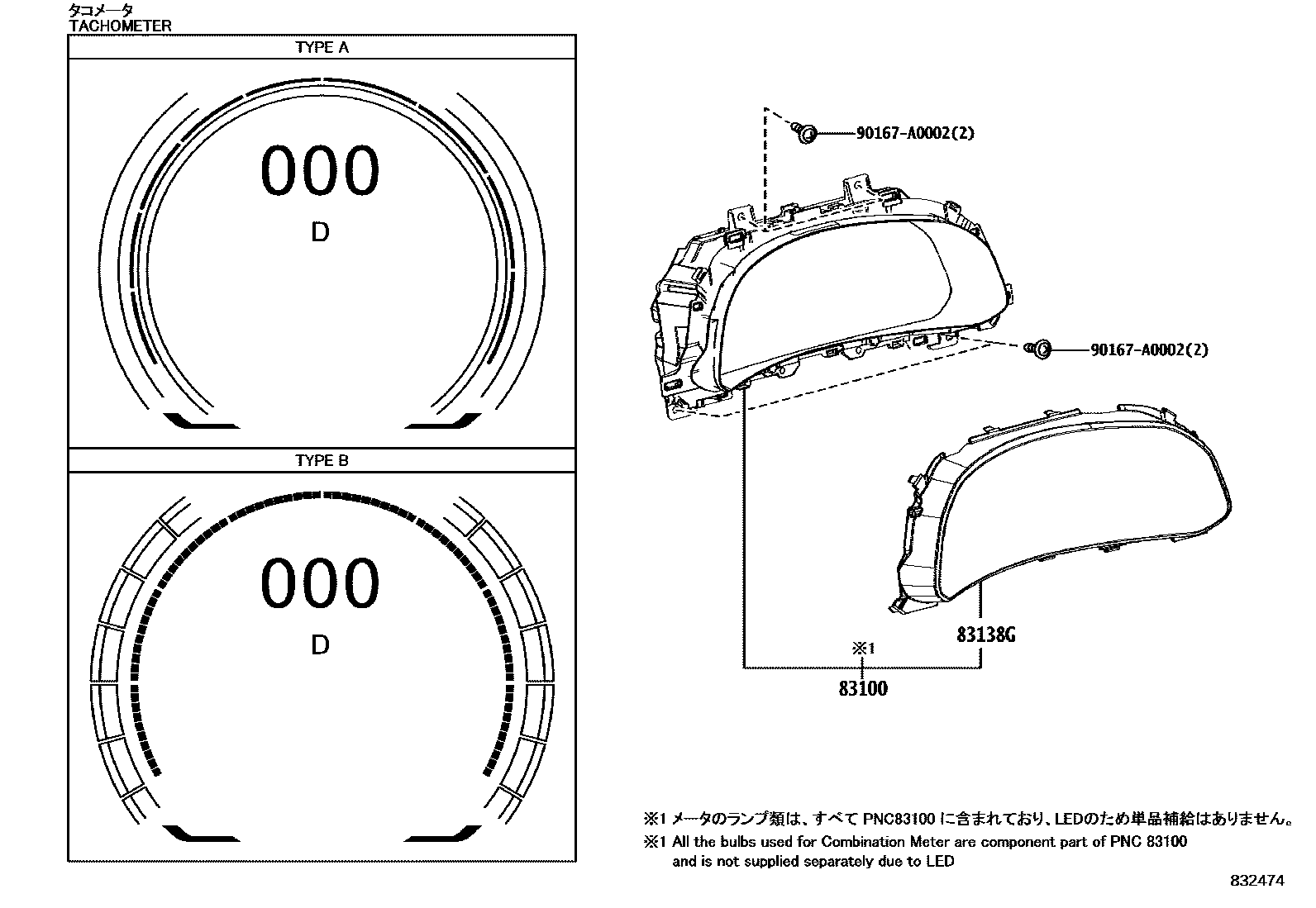

83100METER ASSY, COMBINATION

main83800-F6010supersedes 83800-F6471i202203-202207

DENSO,*614 TYPE A:REF ILL.; DENSO,HEAD UP DISPLAY-WITHOUT,*614 TYPE A:REF ILL.; DENSO,PREMIUM PACKAGE&HEAD UP DISPLAY-WITHOUT,*614 TYPE A:REF ILL.

main83800-F6011supersedes 83800-F6151i202208-202304

DENSO,*614 TYPE A:REF ILL.; DENSO,HEAD UP DISPLAY-WITHOUT,*614 TYPE A:REF ILL.; DENSO,PREMIUM PACKAGE&HEAD UP DISPLAY-WITHOUT,*614 TYPE A:REF ILL.

main83800-F6020supersedes 83800-F6471i202203-202207

DENSO,CANADA SPEC&&HEAD UP DISPLAY-WITHOUT,*614 TYPE A:REF ILL.; DENSO,CANADA SPEC&PREMIUM PACKAGE&HEAD UP DISPLAY-WITHOUT,*614 TYPE A:REF ILL.; DENSO,CANADA SPEC,*614 TYPE A:REF ILL.

main83800-F6021i202208-202304

DENSO,CANADA SPEC&&HEAD UP DISPLAY-WITHOUT,*614 TYPE A:REF ILL.; DENSO,CANADA SPEC&PREMIUM PACKAGE&HEAD UP DISPLAY-WITHOUT,*614 TYPE A:REF ILL.; DENSO,CANADA SPEC,*614 TYPE A:REF ILL.

main83800-F6030i202203-202207

DENSO,MEXICO SPEC,*614 TYPE A:REF ILL.

main83800-F6031i202208-202304

DENSO,MEXICO SPEC,*614 TYPE A:REF ILL.

main83800-F6050supersedes 83800-F6381i202203-202207

DENSO,CANADA SPEC,*614

main83800-F6051supersedes 83800-F6041i202208-202304

DENSO,CANADA SPEC,*614

main83800-F6060supersedes 83800-F6351i202203-202207

DENSO,*614 TYPE A:REF ILL.; DENSO,LUXURY PACKAGE&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,PREMIUM PACKAGE&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.

main83800-F6061supersedes 83800-F6011i202208-202304

DENSO,*614 TYPE A:REF ILL.; DENSO,LUXURY PACKAGE&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,PREMIUM PACKAGE&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.

main83800-F6070i202203-202207

DENSO,CANADA SPEC&LUXURY PACKAGE&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,CANADA SPEC&PREMIUM PACKAGE&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,CANADA SPEC,*614 TYPE A:REF ILL.

main83800-F6071i202208-202304

DENSO,CANADA SPEC&LUXURY PACKAGE&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,CANADA SPEC&PREMIUM PACKAGE&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,CANADA SPEC,*614 TYPE A:REF ILL.

main83800-F6080i202203-202207

DENSO,MEXICO SPEC&LUXURY PACKAGE&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,MEXICO SPEC&PREMIUM PACKAGE&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.

main83800-F6081i202208-202304

DENSO,MEXICO SPEC&LUXURY PACKAGE&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,MEXICO SPEC&PREMIUM PACKAGE&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.

main83800-F6090supersedes 83800-F6381i202203-202207

DENSO,LUXURY PACKAGE&HEAD UP DISPLAY-WITH,*614; DENSO,PREMIUM PACKAGE&HEAD UP DISPLAY-WITH,*614

main83800-F6091supersedes 83800-F6041i202208-202304

DENSO,LUXURY PACKAGE&HEAD UP DISPLAY-WITH,*614; DENSO,PREMIUM PACKAGE&HEAD UP DISPLAY-WITH,*614

main83800-F6100supersedes 83800-F6381i202203-202207

DENSO,CANADA SPEC&LUXURY PACKAGE&HEAD UP DISPLAY-WITH,*614; DENSO,CANADA SPEC&PREMIUM PACKAGE&HEAD UP DISPLAY-WITH,*614

main83800-F6101supersedes 83800-F6041i202208-202304

DENSO,CANADA SPEC&LUXURY PACKAGE&HEAD UP DISPLAY-WITH,*614; DENSO,CANADA SPEC&PREMIUM PACKAGE&HEAD UP DISPLAY-WITH,*614

main83800-F6110supersedes 83800-F6381i202203-202207

DENSO,MEXICO SPEC,*614

main83800-F6111supersedes 83800-F6041i202208-202304

DENSO,MEXICO SPEC,*614

main83800-F6120supersedes 83800-F6381i202203-202207

DENSO,MEXICO SPEC&LUXURY PACKAGE&HEAD UP DISPLAY-WITH,*614; DENSO,MEXICO SPEC&PREMIUM PACKAGE&HEAD UP DISPLAY-WITH,*614

main83800-F6121supersedes 83800-F6041i202208-202304

DENSO,MEXICO SPEC&LUXURY PACKAGE&HEAD UP DISPLAY-WITH,*614; DENSO,MEXICO SPEC&PREMIUM PACKAGE&HEAD UP DISPLAY-WITH,*614

main83800-F6160supersedes 83800-F6471i202203-202207

DENSO,CANADA SPEC,*614,TYPE B:REF ILL.

main83800-F6161supersedes 83800-F6151i202208-202304

DENSO,CANADA SPEC,*614,TYPE B:REF ILL.

main83800-F6210supersedes 83800-F6471i202304-202309

DENSO,*614 TYPE A:REF ILL.; DENSO,HEAD UP DISPLAY-WITHOUT,*614 TYPE A:REF ILL.; DENSO,PREMIUM PACKAGE&HEAD UP DISPLAY-WITHOUT,*614 TYPE A:REF ILL.

main83800-F6211supersedes 83800-F6331i202310-202404

DENSO,*614 TYPE A:REF ILL.; DENSO,HEAD UP DISPLAY-WITHOUT,*614 TYPE A:REF ILL.; DENSO,PREMIUM PACKAGE&HEAD UP DISPLAY-WITHOUT,*614 TYPE A:REF ILL.

main83800-F6220i202304-202309

DENSO,CANADA SPEC&&HEAD UP DISPLAY-WITHOUT,*614 TYPE A:REF ILL.; DENSO,CANADA SPEC&PREMIUM PACKAGE&HEAD UP DISPLAY-WITHOUT,*614 TYPE A:REF ILL.; DENSO,CANADA SPEC,*614 TYPE A:REF ILL.

main83800-F6221i202310-202404

DENSO,CANADA SPEC&&HEAD UP DISPLAY-WITHOUT,*614 TYPE A:REF ILL.; DENSO,CANADA SPEC&PREMIUM PACKAGE&HEAD UP DISPLAY-WITHOUT,*614 TYPE A:REF ILL.; DENSO,CANADA SPEC,*614 TYPE A:REF ILL.

main83800-F6230i202304-202309

DENSO,MEXICO SPEC,*614 TYPE A:REF ILL.

main83800-F6231i202310-202404

DENSO,MEXICO SPEC,*614 TYPE A:REF ILL.

main83800-F6250supersedes 83800-F6381i202304-202309

DENSO,CANADA SPEC,*614

main83800-F6251supersedes 83800-F6241i202310-202404

DENSO,CANADA SPEC,*614

main83800-F6260supersedes 83800-F6381i202304-202309

DENSO,MEXICO SPEC,*614

main83800-F6261supersedes 83800-F6241i202310-202404

DENSO,MEXICO SPEC,*614

main83800-F6270supersedes 83800-F6351i202304-202309

DENSO,*614 TYPE A:REF ILL.; DENSO,LUXURY PACKAGE&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,PREMIUM PACKAGE&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.

main83800-F6271supersedes 83800-F6211i202310-202404

DENSO,LUXURY PACKAGE&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,PREMIUM PACKAGE&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.

main83800-F6280supersedes 83800-F6471i202304-202309

DENSO,CANADA SPEC&LUXURY PACKAGE&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,CANADA SPEC&PREMIUM PACKAGE&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,CANADA SPEC,*614 TYPE A:REF ILL.

main83800-F6281i202310-202404

DENSO,CANADA SPEC&LUXURY PACKAGE&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,CANADA SPEC&PREMIUM PACKAGE&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.

main83800-F6290i202304-202309

DENSO,MEXICO SPEC&LUXURY PACKAGE&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,MEXICO SPEC&PREMIUM PACKAGE&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.

main83800-F6291i202310-202404

DENSO,MEXICO SPEC&LUXURY PACKAGE&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,MEXICO SPEC&PREMIUM PACKAGE&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.

main83800-F6300supersedes 83800-F6381i202304-202305

DENSO,LUXURY PACKAGE&HEAD UP DISPLAY-WITH,*614; DENSO,PREMIUM PACKAGE&HEAD UP DISPLAY-WITH,*614

main83800-F6301supersedes 83800-F6381i202305-202308

DENSO,LUXURY PACKAGE&HEAD UP DISPLAY-WITH,*614; DENSO,PREMIUM PACKAGE&HEAD UP DISPLAY-WITH,*614

main83800-F6302supersedes 83800-F6381i202308-202404

DENSO,LUXURY PACKAGE&HEAD UP DISPLAY-WITH,*614; DENSO,PREMIUM PACKAGE&HEAD UP DISPLAY-WITH,*614

main83800-F6310supersedes 83800-F6381i202304-202305

DENSO,CANADA SPEC&LUXURY PACKAGE&HEAD UP DISPLAY-WITH,*614; DENSO,CANADA SPEC&PREMIUM PACKAGE&HEAD UP DISPLAY-WITH,*614

main83800-F6311supersedes 83800-F6381i202305-202308

DENSO,CANADA SPEC&LUXURY PACKAGE&HEAD UP DISPLAY-WITH,*614; DENSO,CANADA SPEC&PREMIUM PACKAGE&HEAD UP DISPLAY-WITH,*614

main83800-F6312supersedes 83800-F6381i202308-202404

DENSO,CANADA SPEC&LUXURY PACKAGE&HEAD UP DISPLAY-WITH,*614; DENSO,CANADA SPEC&PREMIUM PACKAGE&HEAD UP DISPLAY-WITH,*614

main83800-F6320supersedes 83800-F6381i202304-202305

DENSO,MEXICO SPEC&LUXURY PACKAGE&HEAD UP DISPLAY-WITH,*614; DENSO,MEXICO SPEC&PREMIUM PACKAGE&HEAD UP DISPLAY-WITH,*614

main83800-F6321supersedes 83800-F6381i202305-202308

DENSO,MEXICO SPEC&LUXURY PACKAGE&HEAD UP DISPLAY-WITH,*614; DENSO,MEXICO SPEC&PREMIUM PACKAGE&HEAD UP DISPLAY-WITH,*614

main83800-F6322supersedes 83800-F6381i202308-202404

DENSO,MEXICO SPEC&LUXURY PACKAGE&HEAD UP DISPLAY-WITH,*614; DENSO,MEXICO SPEC&PREMIUM PACKAGE&HEAD UP DISPLAY-WITH,*614

main83800-F6340supersedes 83800-F6471i202304-202309

DENSO,CANADA SPEC,*614,TYPE B:REF ILL.

main83800-F6341supersedes 83800-F6331i202310-202404

DENSO,CANADA SPEC,*614,TYPE B:REF ILL.

main83800-F6350supersedes 83800-F6470i202404-202408

DENSO,*614 TYPE A:REF ILL.; DENSO,HEAD UP DISPLAY-WITHOUT,*614 TYPE A:REF ILL.; DENSO,PREMIUM PACKAGE&HEAD UP DISPLAY-WITHOUT,*614 TYPE A:REF ILL.

main83800-F6351supersedes 83800-F6471i202408-202508

DENSO; DENSO,HEAD UP DISPLAY-WITHOUT; DENSO,PREMIUM PACKAGE&HEAD UP DISPLAY-WITHOUT

main83800-F6360supersedes 83800-F6470i202404-202408

DENSO,CANADA SPEC&&HEAD UP DISPLAY-WITHOUT,*614 TYPE A:REF ILL.; DENSO,CANADA SPEC&PREMIUM PACKAGE&HEAD UP DISPLAY-WITHOUT,*614 TYPE A:REF ILL.; DENSO,CANADA SPEC,*614 TYPE A:REF ILL.

main83800-F6361i202408-202508

DENSO,CANADA SPEC; DENSO,CANADA SPEC&&HEAD UP DISPLAY-WITHOUT; DENSO,CANADA SPEC&PREMIUM PACKAGE&HEAD UP DISPLAY-WITHOUT

main83800-F6370i202404-202408

DENSO,MEXICO SPEC,*614 TYPE A:REF ILL.

main83800-F6371i202408-202508

DENSO,MEXICO SPEC

main83800-F6390supersedes 83800-F6380i202404-202408

DENSO,CANADA SPEC,*614

main83800-F6391supersedes 83800-F6381i202408-202508

DENSO,CANADA SPEC

main83800-F6400supersedes 83800-F6380i202404-202408

DENSO,MEXICO SPEC,*614

main83800-F6401supersedes 83800-F6381i202408-202508

DENSO,MEXICO SPEC

main83800-F6410supersedes 83800-F6350i202404-202408

DENSO,LUXURY PACKAGE&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,PREMIUM PACKAGE&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.

main83800-F6411supersedes 83800-F6351i202408-202508

DENSO,*614 TYPE A:REF ILL.; DENSO,LUXURY PACKAGE&HEAD UP DISPLAY-WITH; DENSO,PREMIUM PACKAGE&HEAD UP DISPLAY-WITH

main83800-F6420i202404-202408

DENSO,CANADA SPEC&LUXURY PACKAGE&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,CANADA SPEC&PREMIUM PACKAGE&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.

main83800-F6421i202408-202508

DENSO,CANADA SPEC&LUXURY PACKAGE&HEAD UP DISPLAY-WITH; DENSO,CANADA SPEC&PREMIUM PACKAGE&HEAD UP DISPLAY-WITH; DENSO,CANADA SPEC,*614 TYPE A:REF ILL.

main83800-F6430i202404-202408

DENSO,MEXICO SPEC&LUXURY PACKAGE&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,MEXICO SPEC&PREMIUM PACKAGE&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.

main83800-F6431i202408-202508

DENSO,MEXICO SPEC&LUXURY PACKAGE&HEAD UP DISPLAY-WITH; DENSO,MEXICO SPEC&PREMIUM PACKAGE&HEAD UP DISPLAY-WITH

main83800-F6440supersedes 83800-F6380i202404-202408

DENSO,LUXURY PACKAGE&HEAD UP DISPLAY-WITH,*614; DENSO,PREMIUM PACKAGE&HEAD UP DISPLAY-WITH,*614

main83800-F6441supersedes 83800-F6381i202408-202508

DENSO,LUXURY PACKAGE&HEAD UP DISPLAY-WITH; DENSO,PREMIUM PACKAGE&HEAD UP DISPLAY-WITH

main83800-F6450supersedes 83800-F6380i202404-202408

DENSO,CANADA SPEC&LUXURY PACKAGE&HEAD UP DISPLAY-WITH,*614; DENSO,CANADA SPEC&PREMIUM PACKAGE&HEAD UP DISPLAY-WITH,*614

main83800-F6451supersedes 83800-F6381i202408-202508

DENSO,CANADA SPEC&LUXURY PACKAGE&HEAD UP DISPLAY-WITH; DENSO,CANADA SPEC&PREMIUM PACKAGE&HEAD UP DISPLAY-WITH

main83800-F6460supersedes 83800-F6380i202404-202408

DENSO,MEXICO SPEC&LUXURY PACKAGE&HEAD UP DISPLAY-WITH,*614; DENSO,MEXICO SPEC&PREMIUM PACKAGE&HEAD UP DISPLAY-WITH,*614

main83800-F6461supersedes 83800-F6381i202408-202508

DENSO,MEXICO SPEC&LUXURY PACKAGE&HEAD UP DISPLAY-WITH; DENSO,MEXICO SPEC&PREMIUM PACKAGE&HEAD UP DISPLAY-WITH

main83800-F6480supersedes 83800-F6470i202404-202408

DENSO,CANADA SPEC,*614,TYPE B:REF ILL.

main83800-F6481supersedes 83800-F6471i202408-202508

DENSO,CANADA SPEC,*614,TYPE B:REF ILL.

83138GGLASS, COMBINATION METER

main83852-F6010i202203-202508

90167A0002

main90167-A0002

3 parts on this diagram · 3 diagrams in section

METER for Toyota LEXUS NX SERIES(TMMC

This section contains 7 genuine Toyota parts for the METER system of the Toyota LEXUS NX SERIES(TMMC. Key components include: METER ASSY, COMBINATION, MIRROR SUB-ASSY, METER, GLASS, COMBINATION METER, PLATE, COMBINATION METER MIRROR, NO.1.
