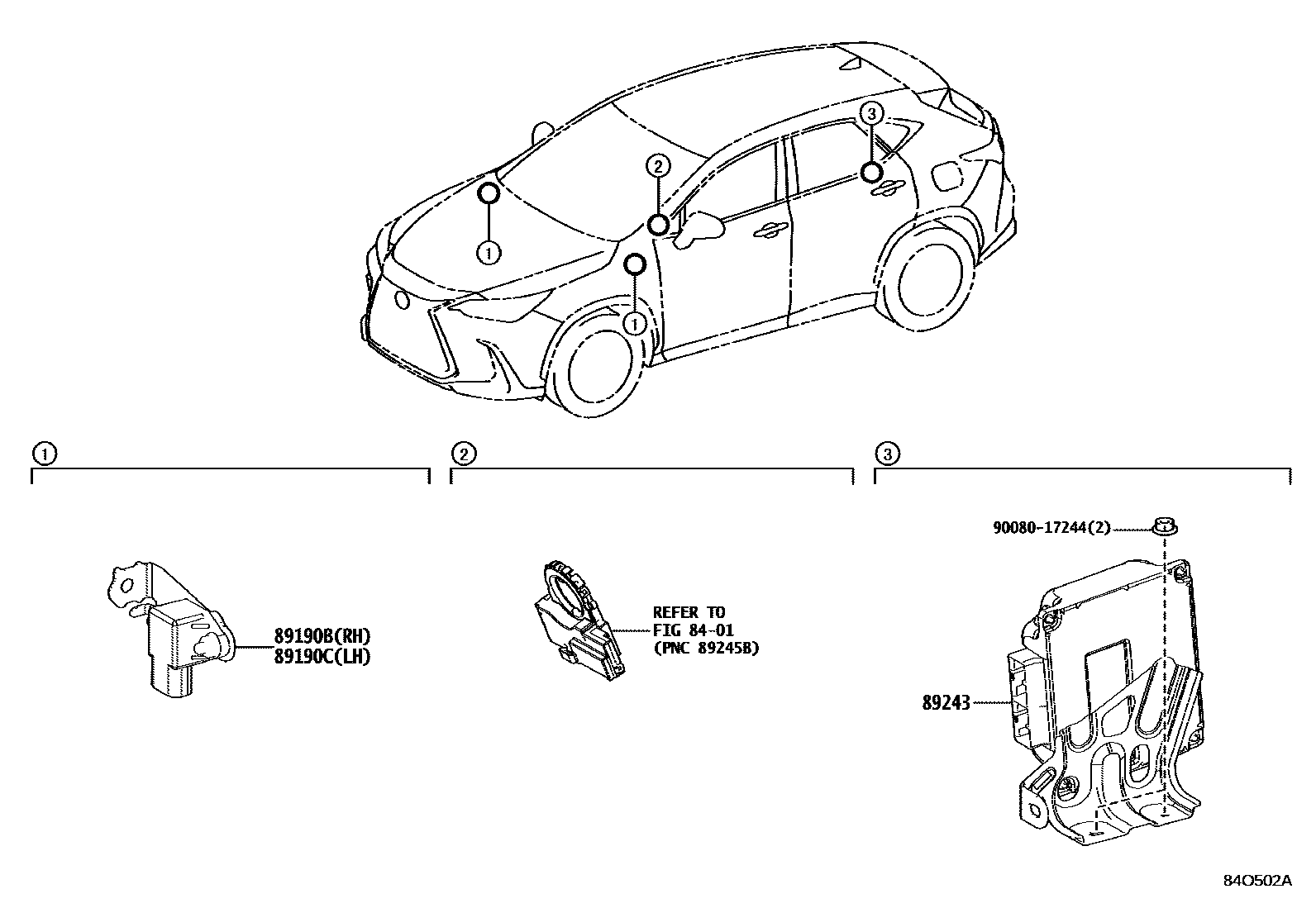

Toyota LEXUS NX SERIES(TMMC — ELECTRONIC MODULATED SUSPENSION

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89190BSENSOR ASSY, ACCELERATION, RH

main89190-78030i202203-202204

STEERING COLUMN-MANUAL(TILT & TELESCOPIC)

89190CSENSOR ASSY, ACCELERATION, LH

main89190-78040i202203-202204

STEERING COLUMN-MANUAL(TILT & TELESCOPIC)

89243COMPUTER, ABSORBER CONTROL

main89243-78090i202304-202404

LUXURY PACKAGE; PREMIUM PACKAGE; STEERING COLUMN-MANUAL(TILT & TELESCOPIC),WITHOUT(LOCK)

main89243-78120i202404

LUXURY PACKAGE; PREMIUM PACKAGE; STEERING COLUMN-MANUAL(TILT & TELESCOPIC),WITHOUT(LOCK)

main89243-78080i202203-202204

STEERING COLUMN-MANUAL(TILT & TELESCOPIC)

9008017244

main90080-17244

5 parts on this diagram · 1 diagram in section

ELECTRONIC MODULATED SUSPENSION for Toyota LEXUS NX SERIES(TMMC

This section contains 5 genuine Toyota parts for the ELECTRONIC MODULATED SUSPENSION system of the Toyota LEXUS NX SERIES(TMMC. Key components include: SWITCH & RELAY & COMPUTER, SENSOR ASSY, ACCELERATION, RH, SENSOR ASSY, ACCELERATION, LH, COMPUTER, ABSORBER CONTROL.
