Toyota LEXUS NX SERIES(JPP) — METER

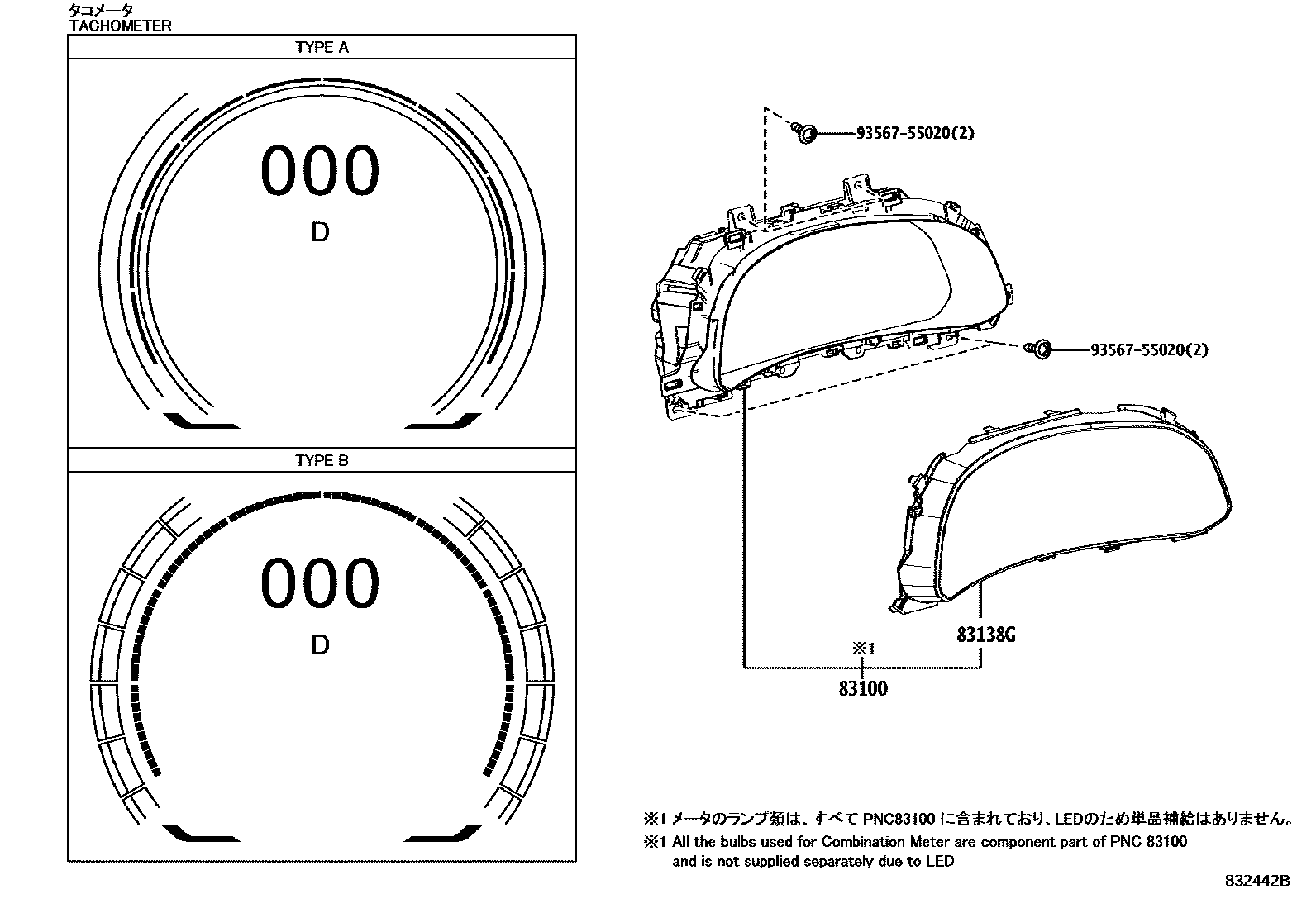

Parts diagram
83100METER ASSY, COMBINATION
main83800-78800supersedes 83800-78T81i202111-202205
DENSO,CANADA SPEC,*614,TYPE B:REF ILL.
main83800-78801supersedes 83800-78F91i202206-202303
DENSO,CANADA SPEC,*614,TYPE B:REF ILL.
main83800-78D60supersedes 83800-78T81i202111-202205
DENSO,*614 TYPE A:REF ILL.; DENSO,HEAD UP DISPLAY-WITHOUT,*614 TYPE A:REF ILL.; DENSO,PREMIUM PACKAGE&HEAD UP DISPLAY-WITHOUT,*614 TYPE A:REF ILL.
main83800-78D61supersedes 83800-78F91i202206-202303
DENSO,*614 TYPE A:REF ILL.; DENSO,HEAD UP DISPLAY-WITHOUT,*614 TYPE A:REF ILL.; DENSO,PREMIUM PACKAGE&HEAD UP DISPLAY-WITHOUT,*614 TYPE A:REF ILL.
main83800-78D90i202111-202205
DENSO,CANADA SPEC&&HEAD UP DISPLAY-WITHOUT,*614 TYPE A:REF ILL.; DENSO,CANADA SPEC&PREMIUM PACKAGE&HEAD UP DISPLAY-WITHOUT,*614 TYPE A:REF ILL.; DENSO,CANADA SPEC,*614 TYPE A:REF ILL.
main83800-78D91supersedes 83800-78F91i202206-202303
DENSO,CANADA SPEC&&HEAD UP DISPLAY-WITHOUT,*614 TYPE A:REF ILL.; DENSO,CANADA SPEC&PREMIUM PACKAGE&HEAD UP DISPLAY-WITHOUT,*614 TYPE A:REF ILL.; DENSO,CANADA SPEC,*614 TYPE A:REF ILL.
main83800-78E70supersedes 83800-78R90i202111-202205
DENSO,CANADA SPEC,*614 TYPE A:REF ILL.; DENSO,KOREA SPEC,*614 TYPE A:REF ILL.
main83800-78E71supersedes 83800-78E41i202206-202303
DENSO,CANADA SPEC,*614 TYPE A:REF ILL.; DENSO,KOREA SPEC,*614 TYPE A:REF ILL.
main83800-78F50supersedes 83800-78S40i202111-202205
DENSO,CANADA SPEC,*614 TYPE A:REF ILL.; DENSO,KOREA SPEC,*614 TYPE A:REF ILL.
main83800-78F51supersedes 83800-78F21i202206-202303
DENSO,CANADA SPEC,*614 TYPE A:REF ILL.; DENSO,KOREA SPEC,*614 TYPE A:REF ILL.
main83800-78F90supersedes 83800-78R40i202111-202205
DENSO,"VERSION L"*(L)&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,*614 TYPE A:REF ILL.; DENSO,PREMIUM PACKAGE&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.
main83800-78F91supersedes 83800-78D61i202206-202303
DENSO,"VERSION L"*(L)&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,*614 TYPE A:REF ILL.; DENSO,PREMIUM PACKAGE&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.
main83800-78K60i202111-202205
DENSO,CANADA SPEC&"VERSION L"*(L)&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,CANADA SPEC&PREMIUM PACKAGE&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,CANADA SPEC,*614 TYPE A:REF ILL.
main83800-78K61i202206-202303
DENSO,CANADA SPEC&"VERSION L"*(L)&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,CANADA SPEC&PREMIUM PACKAGE&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,CANADA SPEC,*614 TYPE A:REF ILL.
main83800-78K70supersedes 83800-78R90i202111-202205
DENSO,"VERSION L"*(L)&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,PREMIUM PACKAGE&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.
main83800-78K71supersedes 83800-78E41i202206-202303
DENSO,"VERSION L"*(L)&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,PREMIUM PACKAGE&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.
main83800-78L00supersedes 83800-78R90i202111-202205
DENSO,CANADA SPEC&"VERSION L"*(L)&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,CANADA SPEC&PREMIUM PACKAGE&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,KOREA SPEC&"F SPORT"*(F)&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,KOREA SPEC&"VERSION L"*(L)&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,KOREA SPEC&COMFORT PACKAGE&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,KOREA SPEC&PREMIUM PACKAGE&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.
main83800-78L01supersedes 83800-78E41i202206-202303
DENSO,CANADA SPEC&"VERSION L"*(L)&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,CANADA SPEC&PREMIUM PACKAGE&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,KOREA SPEC&"F SPORT"*(F)&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,KOREA SPEC&"VERSION L"*(L)&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,KOREA SPEC&COMFORT PACKAGE&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,KOREA SPEC&PREMIUM PACKAGE&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.
main83800-78L10supersedes 83800-78S40i202111-202205
DENSO,HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.
main83800-78L11supersedes 83800-78F21i202206-202303
DENSO,HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.
main83800-78L40supersedes 83800-78S40i202111-202205
DENSO,CANADA SPEC&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,KOREA SPEC&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.
main83800-78L41supersedes 83800-78F21i202206-202303
DENSO,CANADA SPEC&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,KOREA SPEC&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.
main83800-78M80supersedes 83800-78R90i202111-202205
DENSO,KOREA SPEC&"F SPORT"*(F),*614,TYPE B:REF ILL.
main83800-78M81supersedes 83800-78E41i202206-202303
DENSO,KOREA SPEC&"F SPORT"*(F),*614,TYPE B:REF ILL.
main83800-78M90supersedes 83800-78S40i202111-202205
DENSO,"F SPORT"*(F),*614,TYPE B:REF ILL.
main83800-78M91supersedes 83800-78F21i202206-202303
DENSO,"F SPORT"*(F),*614,TYPE B:REF ILL.
main83800-78N10supersedes 83800-78S40i202111-202205
DENSO,CANADA SPEC&"F SPORT"*(F),*614,TYPE B:REF ILL.; DENSO,KOREA SPEC&"F SPORT"*(F),*614,TYPE B:REF ILL.
main83800-78N11supersedes 83800-78F21i202206-202303
DENSO,CANADA SPEC&"F SPORT"*(F),*614,TYPE B:REF ILL.; DENSO,KOREA SPEC&"F SPORT"*(F),*614,TYPE B:REF ILL.
main83800-78N20supersedes 83800-78Q60i202303-202306
DENSO,*614 TYPE A:REF ILL.; DENSO,HEAD UP DISPLAY-WITHOUT,*614 TYPE A:REF ILL.; DENSO,PREMIUM PACKAGE&HEAD UP DISPLAY-WITHOUT,*614 TYPE A:REF ILL.
main83800-78N21supersedes 83800-78T81i202307-202403
DENSO,*614 TYPE A:REF ILL.; DENSO,HEAD UP DISPLAY-WITHOUT,*614 TYPE A:REF ILL.; DENSO,PREMIUM PACKAGE&HEAD UP DISPLAY-WITHOUT,*614 TYPE A:REF ILL.
main83800-78N40i202303-202306
DENSO,CANADA SPEC&&HEAD UP DISPLAY-WITHOUT,*614 TYPE A:REF ILL.; DENSO,CANADA SPEC&PREMIUM PACKAGE&HEAD UP DISPLAY-WITHOUT,*614 TYPE A:REF ILL.; DENSO,CANADA SPEC,*614 TYPE A:REF ILL.
main83800-78N41supersedes 83800-78T81i202307-202403
DENSO,CANADA SPEC&&HEAD UP DISPLAY-WITHOUT,*614 TYPE A:REF ILL.; DENSO,CANADA SPEC&PREMIUM PACKAGE&HEAD UP DISPLAY-WITHOUT,*614 TYPE A:REF ILL.; DENSO,CANADA SPEC,*614 TYPE A:REF ILL.
main83800-78N90supersedes 83800-78N70i202303-202306
DENSO,CANADA SPEC,*614 TYPE A:REF ILL.; DENSO,KOREA SPEC,*614 TYPE A:REF ILL.
main83800-78N91supersedes 83800-78R90i202307-202403
DENSO,CANADA SPEC,*614 TYPE A:REF ILL.; DENSO,KOREA SPEC,*614 TYPE A:REF ILL.
main83800-78P40supersedes 83800-78P20i202303-202306
DENSO,CANADA SPEC,*614 TYPE A:REF ILL.; DENSO,KOREA SPEC,*614 TYPE A:REF ILL.
main83800-78P41supersedes 83800-78S40i202307-202403
DENSO,CANADA SPEC,*614 TYPE A:REF ILL.; DENSO,KOREA SPEC,*614 TYPE A:REF ILL.
main83800-78P70supersedes 83800-78N20i202303-202306
DENSO,"VERSION L"*(L)&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,*614 TYPE A:REF ILL.; DENSO,PREMIUM PACKAGE&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.
main83800-78P71supersedes 83800-78R40i202307-202310
DENSO,"VERSION L"*(L)&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,*614 TYPE A:REF ILL.; DENSO,PREMIUM PACKAGE&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.
main83800-78P72supersedes 83800-78R40i202311-202403
DENSO,"VERSION L"*(L)&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,*614 TYPE A:REF ILL.; DENSO,PREMIUM PACKAGE&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.
main83800-78P90i202303-202306
DENSO,CANADA SPEC&"VERSION L"*(L)&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,CANADA SPEC&PREMIUM PACKAGE&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,CANADA SPEC,*614 TYPE A:REF ILL.
main83800-78P91i202307-202310
DENSO,CANADA SPEC&"VERSION L"*(L)&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,CANADA SPEC&PREMIUM PACKAGE&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,CANADA SPEC,*614 TYPE A:REF ILL.
main83800-78P92i202311-202403
DENSO,CANADA SPEC&"VERSION L"*(L)&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,CANADA SPEC&PREMIUM PACKAGE&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,CANADA SPEC,*614 TYPE A:REF ILL.
main83800-78Q00supersedes 83800-78N70i202303-202306
DENSO,"VERSION L"*(L)&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,PREMIUM PACKAGE&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.
main83800-78Q01supersedes 83800-78R90i202307-202310
DENSO,"VERSION L"*(L)&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,PREMIUM PACKAGE&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.
main83800-78Q02supersedes 83800-78R90i202311-202403
DENSO,"VERSION L"*(L)&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,PREMIUM PACKAGE&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.
main83800-78Q20supersedes 83800-78N70i202303-202306
DENSO,CANADA SPEC&"VERSION L"*(L)&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,CANADA SPEC&PREMIUM PACKAGE&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,KOREA SPEC&"F SPORT"*(F)&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,KOREA SPEC&"VERSION L"*(L)&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,KOREA SPEC&COMFORT PACKAGE&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,KOREA SPEC&PREMIUM PACKAGE&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.
main83800-78Q21supersedes 83800-78R90i202307-202310
DENSO,CANADA SPEC&"VERSION L"*(L)&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,CANADA SPEC&PREMIUM PACKAGE&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,KOREA SPEC&"F SPORT"*(F)&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,KOREA SPEC&"VERSION L"*(L)&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,KOREA SPEC&COMFORT PACKAGE&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,KOREA SPEC&PREMIUM PACKAGE&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.
main83800-78Q22supersedes 83800-78R90i202311-202403
DENSO,CANADA SPEC&"VERSION L"*(L)&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,CANADA SPEC&PREMIUM PACKAGE&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,KOREA SPEC&"F SPORT"*(F)&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,KOREA SPEC&"VERSION L"*(L)&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,KOREA SPEC&COMFORT PACKAGE&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,KOREA SPEC&PREMIUM PACKAGE&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.
main83800-78Q30supersedes 83800-78P20i202303-202306
DENSO,HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.
main83800-78Q31supersedes 83800-78S40i202307-202310
DENSO,HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.
main83800-78Q32supersedes 83800-78S40i202311-202403
DENSO,HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.
main83800-78Q50supersedes 83800-78P20i202303-202306
DENSO,CANADA SPEC&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,KOREA SPEC&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.
main83800-78Q51supersedes 83800-78S40i202307-202310
DENSO,CANADA SPEC&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,KOREA SPEC&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.
main83800-78Q52supersedes 83800-78S40i202311-202403
DENSO,CANADA SPEC&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,KOREA SPEC&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.
main83800-78Q80supersedes 83800-78Q60i202303-202306
DENSO,CANADA SPEC,*614,TYPE B:REF ILL.
main83800-78Q81supersedes 83800-78T81i202307-202310
DENSO,CANADA SPEC,*614,TYPE B:REF ILL.
main83800-78Q82supersedes 83800-78T81i202311-202403
DENSO,CANADA SPEC,*614,TYPE B:REF ILL.
main83800-78R00supersedes 83800-78N70i202303-202306
DENSO,KOREA SPEC&"F SPORT"*(F),*614,TYPE B:REF ILL.
main83800-78R01supersedes 83800-78R90i202307-202310
DENSO,KOREA SPEC&"F SPORT"*(F),*614,TYPE B:REF ILL.
main83800-78R02supersedes 83800-78R90i202311-202403
DENSO,KOREA SPEC&"F SPORT"*(F),*614,TYPE B:REF ILL.
main83800-78R10supersedes 83800-78P20i202303-202306
DENSO,"F SPORT"*(F),*614,TYPE B:REF ILL.
main83800-78R11supersedes 83800-78S40i202307-202310
DENSO,"F SPORT"*(F),*614,TYPE B:REF ILL.
main83800-78R12supersedes 83800-78S40i202311-202403
DENSO,"F SPORT"*(F),*614,TYPE B:REF ILL.
main83800-78R30supersedes 83800-78P20i202303-202306
DENSO,CANADA SPEC&"F SPORT"*(F),*614,TYPE B:REF ILL.; DENSO,KOREA SPEC&"F SPORT"*(F),*614,TYPE B:REF ILL.
main83800-78R31supersedes 83800-78S40i202307-202310
DENSO,CANADA SPEC&"F SPORT"*(F),*614,TYPE B:REF ILL.; DENSO,KOREA SPEC&"F SPORT"*(F),*614,TYPE B:REF ILL.
main83800-78R32supersedes 83800-78S40i202311-202403
DENSO,CANADA SPEC&"F SPORT"*(F),*614,TYPE B:REF ILL.; DENSO,KOREA SPEC&"F SPORT"*(F),*614,TYPE B:REF ILL.
main83800-78R40supersedes 83800-78T81i202404-202507
DENSO,HEAD UP DISPLAY-WITHOUT,*614 TYPE A:REF ILL.; DENSO,PREMIUM PACKAGE&HEAD UP DISPLAY-WITHOUT,*614 TYPE A:REF ILL.
main83800-78R60supersedes 83800-78T81i202404-202507
DENSO,CANADA SPEC&&HEAD UP DISPLAY-WITHOUT,*614 TYPE A:REF ILL.; DENSO,CANADA SPEC&PREMIUM PACKAGE&HEAD UP DISPLAY-WITHOUT,*614 TYPE A:REF ILL.
main83800-78S10supersedes 83800-78R90i202404-202507
DENSO,CANADA SPEC,*614 TYPE A:REF ILL.; DENSO,KOREA SPEC,*614 TYPE A:REF ILL.
main83800-78S60supersedes 83800-78S40i202404-202507
DENSO,CANADA SPEC,*614 TYPE A:REF ILL.; DENSO,KOREA SPEC,*614 TYPE A:REF ILL.
main83800-78S90supersedes 83800-78R40i202404-202407
DENSO,"VERSION L"*(L)&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,*614 TYPE A:REF ILL.; DENSO,PREMIUM PACKAGE&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.
main83800-78S91supersedes 83800-78R40i202408-202506
DENSO,"VERSION L"*(L)&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,PREMIUM PACKAGE&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.
main83800-78T10i202404-202407
DENSO,CANADA SPEC&"VERSION L"*(L)&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,CANADA SPEC&PREMIUM PACKAGE&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,CANADA SPEC,*614 TYPE A:REF ILL.
main83800-78T11i202408-202506
DENSO,CANADA SPEC&"VERSION L"*(L)&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,CANADA SPEC&PREMIUM PACKAGE&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.
main83800-78T20supersedes 83800-78R90i202404-202407
DENSO,"VERSION L"*(L)&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,PREMIUM PACKAGE&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.
main83800-78T21supersedes 83800-78R90i202408-202507
DENSO,"VERSION L"*(L)&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,PREMIUM PACKAGE&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.
main83800-78T40supersedes 83800-78R90i202404-202407
DENSO,CANADA SPEC&"VERSION L"*(L)&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,CANADA SPEC&PREMIUM PACKAGE&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,KOREA SPEC&"F SPORT"*(F)&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,KOREA SPEC&"VERSION L"*(L)&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,KOREA SPEC&COMFORT PACKAGE&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,KOREA SPEC&PREMIUM PACKAGE&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.
main83800-78T41supersedes 83800-78R90i202408-202507
DENSO,CANADA SPEC&"VERSION L"*(L)&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,CANADA SPEC&PREMIUM PACKAGE&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,KOREA SPEC&"F SPORT"*(F)&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,KOREA SPEC&"VERSION L"*(L)&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,KOREA SPEC&COMFORT PACKAGE&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,KOREA SPEC&PREMIUM PACKAGE&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.
main83800-78T50supersedes 83800-78S40i202404-202407
DENSO,HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.
main83800-78T51supersedes 83800-78S40i202408-202507
DENSO,HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.
main83800-78T70supersedes 83800-78S40i202404-202407
DENSO,CANADA SPEC&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,KOREA SPEC&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.
main83800-78T71supersedes 83800-78S40i202408-202507
DENSO,CANADA SPEC&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.; DENSO,KOREA SPEC&HEAD UP DISPLAY-WITH,*614 TYPE A:REF ILL.
main83800-78T80supersedes 83800-78T81i202404-202407
DENSO,"VERSION L"*(L),*614,TYPE B:REF ILL.; DENSO,*614,TYPE B:REF ILL.; DENSO,CANADA SPEC&"VERSION L"*(L),*614,TYPE B:REF ILL.; DENSO,CANADA SPEC&,*614,TYPE B:REF ILL.; DENSO,CANADA SPEC&PREMIUM PACKAGE,*614,TYPE B:REF ILL.; DENSO,PREMIUM PACKAGE,*614,TYPE B:REF ILL.
main83800-78T81i202408-202507
DENSO,"VERSION L"*(L),*614,TYPE B:REF ILL.; DENSO,*614,TYPE B:REF ILL.; DENSO,CANADA SPEC&"VERSION L"*(L),*614,TYPE B:REF ILL.; DENSO,CANADA SPEC&,*614,TYPE B:REF ILL.; DENSO,CANADA SPEC&PREMIUM PACKAGE,*614,TYPE B:REF ILL.; DENSO,PREMIUM PACKAGE,*614,TYPE B:REF ILL.
main83800-78U00supersedes 83800-78T81i202404-202407
DENSO,CANADA SPEC,*614,TYPE B:REF ILL.
main83800-78U01supersedes 83800-78T81i202408-202507
DENSO,CANADA SPEC,*614,TYPE B:REF ILL.
main83800-78U20supersedes 83800-78R90i202404-202407
DENSO,KOREA SPEC&"F SPORT"*(F),*614,TYPE B:REF ILL.
main83800-78U21supersedes 83800-78R90i202408-202507
DENSO,KOREA SPEC&"F SPORT"*(F),*614,TYPE B:REF ILL.
main83800-78U30supersedes 83800-78S40i202404-202407
DENSO,"F SPORT"*(F),*614,TYPE B:REF ILL.
main83800-78U31supersedes 83800-78S40i202408-202507
DENSO,"F SPORT"*(F),*614,TYPE B:REF ILL.
main83800-78U50supersedes 83800-78S40i202404-202407
DENSO,CANADA SPEC&"F SPORT"*(F),*614,TYPE B:REF ILL.; DENSO,KOREA SPEC&"F SPORT"*(F),*614,TYPE B:REF ILL.
main83800-78U51supersedes 83800-78S40i202408-202507
DENSO,CANADA SPEC&"F SPORT"*(F),*614,TYPE B:REF ILL.; DENSO,KOREA SPEC&"F SPORT"*(F),*614,TYPE B:REF ILL.
83138GGLASS, COMBINATION METER
main83852-78D60i202404-202506
9356755020
main93567-55020

3 parts on this diagram · 3 diagrams in section
