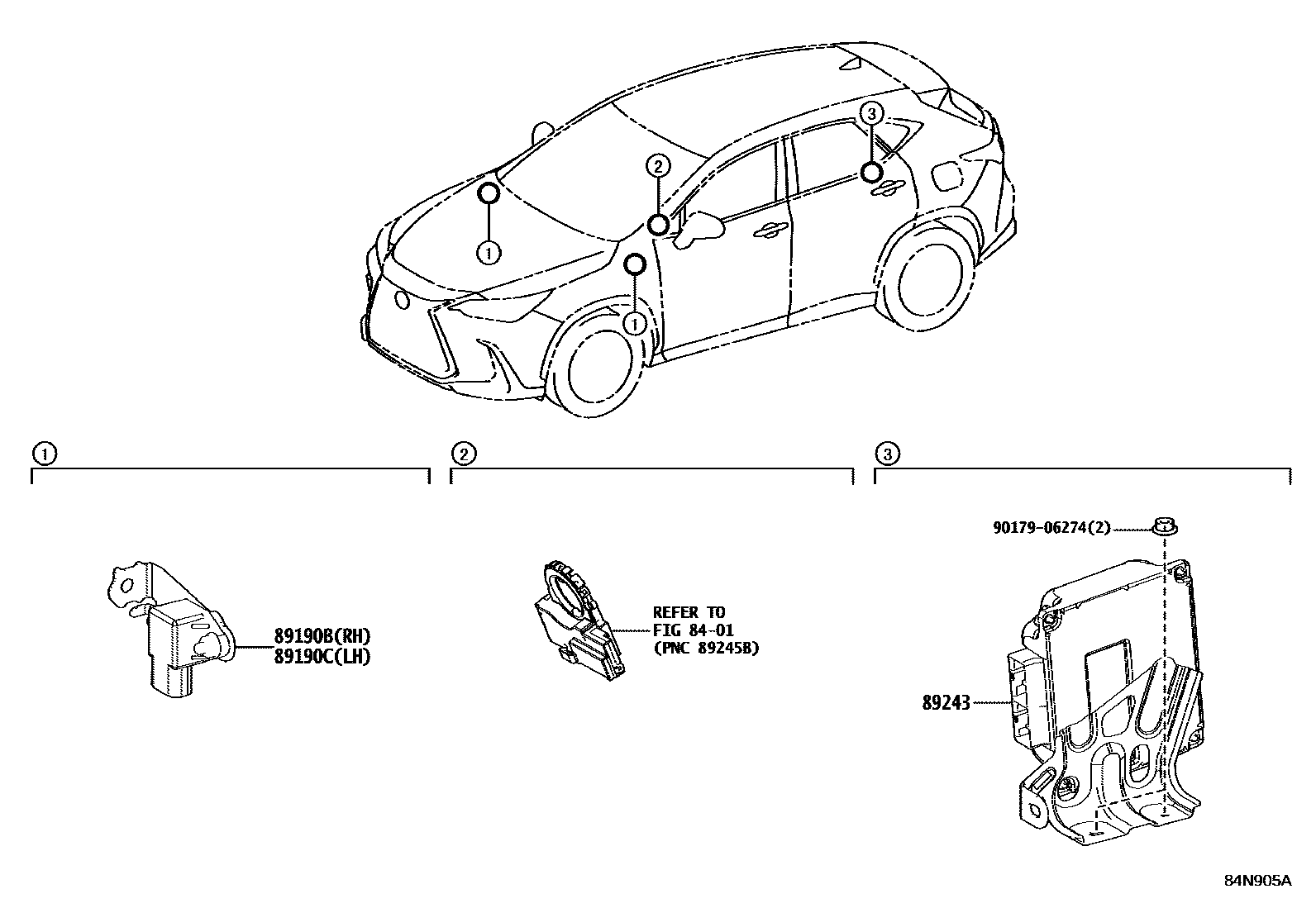

Toyota LEXUS NX SERIES(JPP) — ELECTRONIC MODULATED SUSPENSION

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89190BSENSOR ASSY, ACCELERATION, RH

main89190-78030i202404-202507

KOREA SPEC&"F SPORT"*(F)&STEERING COLUMN-POWER(TILT & TELESCOPIC),WITHOUT(LOCK)

89190CSENSOR ASSY, ACCELERATION, LH

main89190-78040i202404-202507

KOREA SPEC&"F SPORT"*(F)&STEERING COLUMN-POWER(TILT & TELESCOPIC),WITHOUT(LOCK)

89243COMPUTER, ABSORBER CONTROL

main89243-78080i202111-202302

"F SPORT"*(F); "VERSION L"*(L); KOREA SPEC&"F SPORT"*(F)&STEERING COLUMN-POWER(TILT & TELESCOPIC), W(PROTECTOR); PREMIUM PACKAGE; STEERING COLUMN-MANUAL(TILT & TELESCOPIC),WITHOUT(LOCK)

main89243-78090supersedes 89243-78120i202303-202403

"F SPORT"*(F); "VERSION L"*(L); KOREA SPEC&"F SPORT"*(F)&STEERING COLUMN-POWER(TILT & TELESCOPIC),WITHOUT(LOCK); PREMIUM PACKAGE; STEERING COLUMN-MANUAL(TILT & TELESCOPIC),WITHOUT(LOCK)

main89243-78120i202404

"F SPORT"*(F); "VERSION L"*(L); PREMIUM PACKAGE; STEERING COLUMN-MANUAL(TILT & TELESCOPIC),WITHOUT(LOCK)

9017906274

main90179-06274

5 parts on this diagram · 1 diagram in section

ELECTRONIC MODULATED SUSPENSION for Toyota LEXUS NX SERIES(JPP)

This section contains 5 genuine Toyota parts for the ELECTRONIC MODULATED SUSPENSION system of the Toyota LEXUS NX SERIES(JPP). Key components include: SWITCH & RELAY & COMPUTER, SENSOR ASSY, ACCELERATION, RH, SENSOR ASSY, ACCELERATION, LH, COMPUTER, ABSORBER CONTROL.
