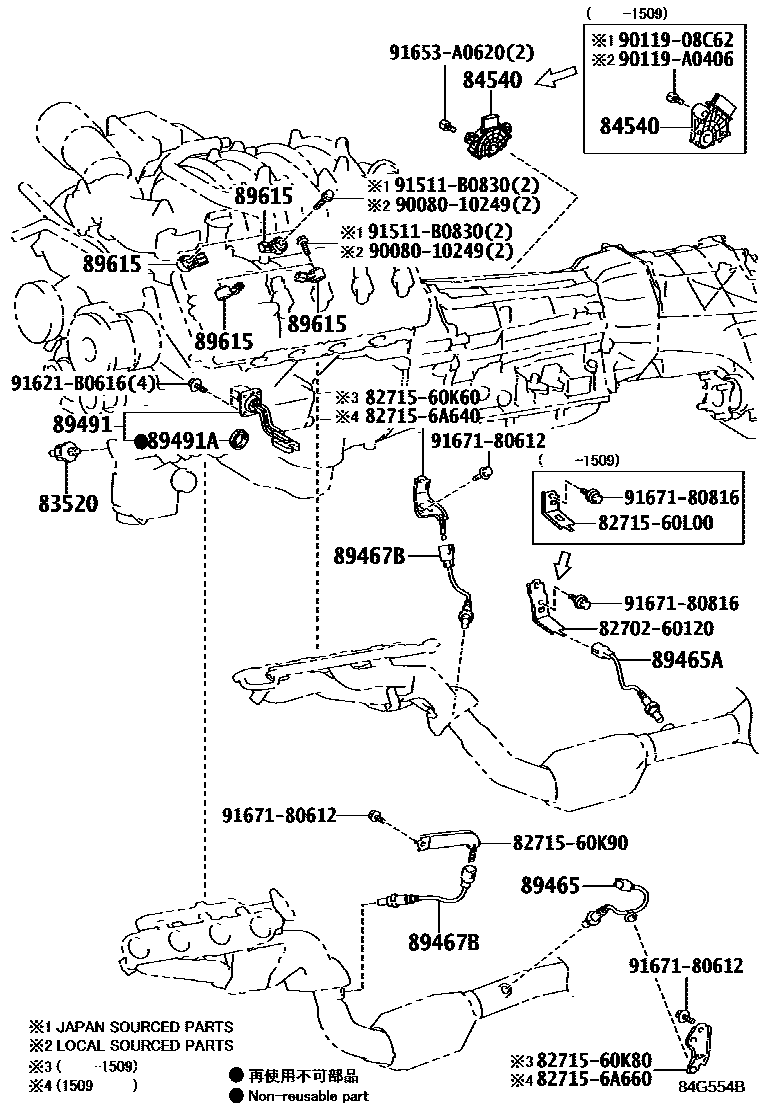

Toyota LEXUS LX570 — SWITCH & RELAY & COMPUTER
83520GAGE ASSY,OIL PRESSURE SENDER
89465SENSOR, OXYGEN
89465ASENSOR, OXYGEN NO.2
89467BSENSOR, AIR FUEL RATIO
89491SENSOR, ENGINE OIL LEVEL
89491AGASKET, ENGINE OIL LEVEL SENSOR
89615SENSOR, KNOCK CONTROL
8270260120BRACKET SUB-ASSY, WIRING HARNESS
main82702-60120
8271560K60BRACKET,WIRING HARNESS CLAMP
main82715-60K60
8271560K80BRACKET,WIRING HARNESS CLAMP
main82715-60K80
8271560K90BRACKET,WIRING HARNESS CLAMP
main82715-60K90
8271560L00BRACKET,WIRING HARNESS CLAMP
main82715-60L00
827156A640BRACKET,WIRING HARNESS CLAMP
main82715-6A640
827156A660BRACKET,WIRING HARNESS CLAMP
main82715-6A660
9008010249
main90080-10249
9011908C62
main90119-08C62
90119A0406
main90119-A0406
91511B0830
main91511-B0830
91621B0616
main91621-B0616
91653A0620
main91653-A0620
9167180612
main91671-80612
9167180816
main91671-80816
23 parts on this diagram · 18 diagrams in section
SWITCH & RELAY & COMPUTER for Toyota LEXUS LX570
This section contains 213 genuine Toyota parts for the SWITCH & RELAY & COMPUTER system of the Toyota LEXUS LX570. Key components include: RELAY ASSY, STARTER, RELAY, STARTER CUT, RELAY, IGNITION, NO.1, INSIDE TRIM BOARD, SEAT & SEAT TRACK.
