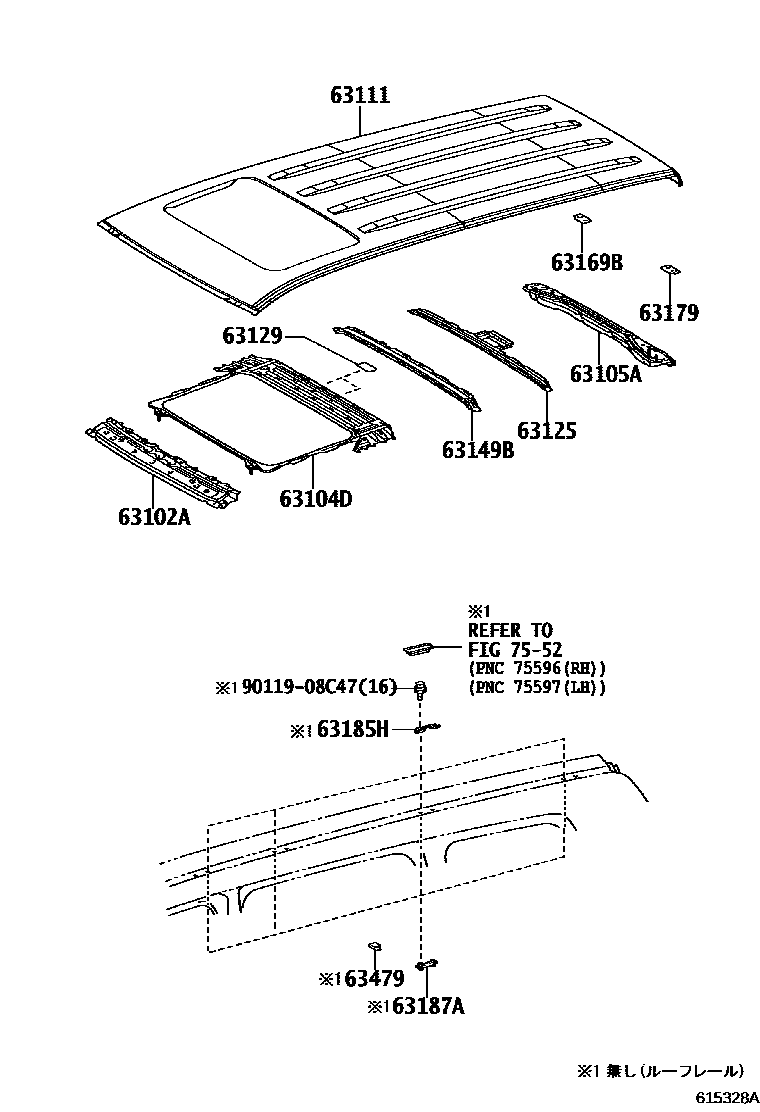

Toyota LEXUS LX570 — ROOF PANEL & BACK PANEL

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-60110i201509

63104DREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2

main63104-60060i201509

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-60280i201509

63111PANEL, ROOF

main63111-60800i201509

63125REINFORCEMENT, ROOF PANEL, NO.2

main63107-60040i201509

63129PROTECTOR, WINDSHIELD HEADER

main63129-60030×2i201904

63149BREINFORCEMENT, ROOF PANEL, NO.1 REAR

main63149-60010i201509

63169BPLATE, ROOF PANEL REINFORCEMENT, RH

main63169-60020i201509

63179PLATE, ROOF PANEL REINFORCEMENT, LH

main63179-60010i201509

63185HBRACKET, ROOF RACK

main63185-42020×8i201509

63187ABRACKET, ROOF RACK, REAR

main63187-60040×8i201509

63479RETAINER, ROOF INNER RACK

main63479-60020×8i201509

7552MOULDING

→ Go to FIG 75-52

9011908C47

main90119-08C47

14 parts on this diagram · 3 diagrams in section

ROOF PANEL & BACK PANEL for Toyota LEXUS LX570

This section contains 52 genuine Toyota parts for the ROOF PANEL & BACK PANEL system of the Toyota LEXUS LX570. Key components include: PANEL SUB-ASSY, WINDSHIELD HEADER, REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2, FRAME SUB-ASSY, BACK DOOR OPENING, PANEL, ROOF, REINFORCEMENT, ROOF PANEL, NO.2.
