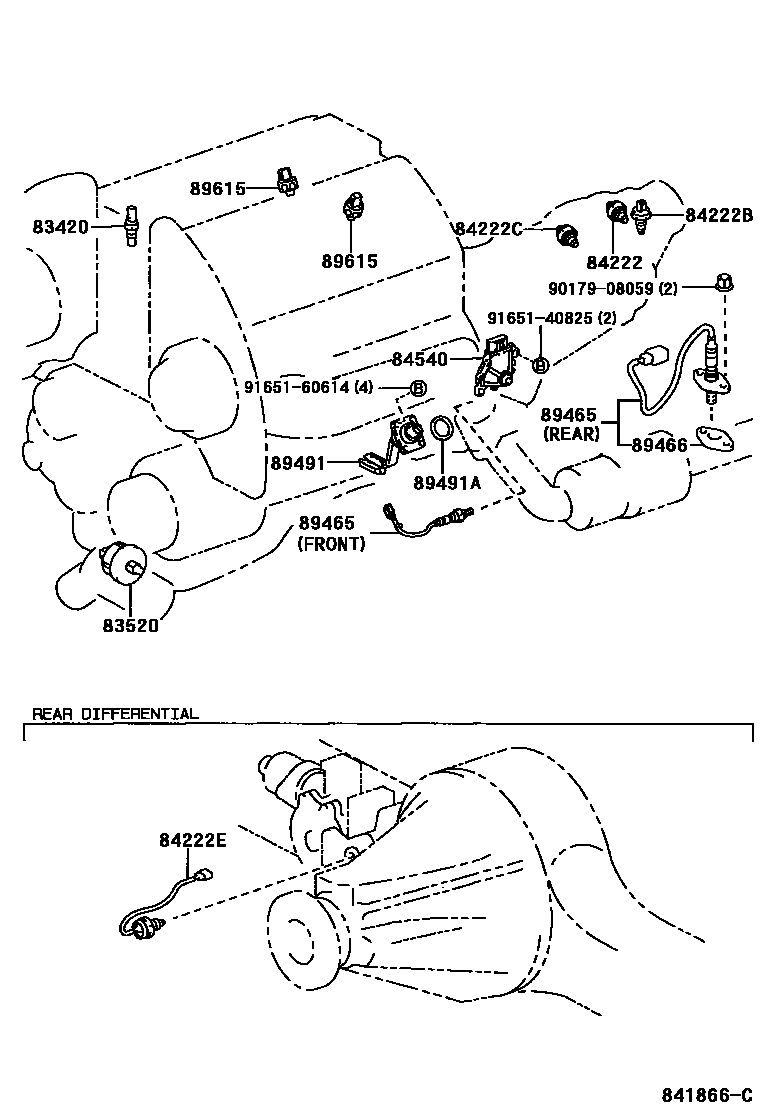

Toyota LEXUS LX470 — SWITCH & RELAY & COMPUTER

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-20040i199801-200208

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-35020i199801-200208

main83520-60050i200409-200505

84222SWITCH, TRANSFER INDICATOR, NO.1

main84222-12010i199801-200208

84222BSWITCH, TRANSFER INDICATOR, NO.2

main84222-60080i199801-199909

main84222-60081i199909-200208

84222CSWITCH, TRANSFER INDICATOR, NO.3

main84222-12010i199801-200208

84222ESWITCH, DIFFERENTIAL LOCK INDICATOR

main84222-60090i199801-199907

84540SWITCH ASSY, NEUTRAL START

main84540-51010i200208-200505

main84540-65010i199801-200208

89465SENSOR, OXYGEN

main89465-50060×2i200108-200202

FRONT

main89465-50150×2i200202-200208

FRONT

main89465-60150×2i200208-200505

FRONT

main89465-69175×2i200208-200505

REAR

main89465-80011×2i200108-200208

REAR

89466GASKET, OXYGEN SENSOR

main89466-20020×2i200505

89491SENSOR, ENGINE OIL LEVEL

main89491-60060i199801-200208

main89491-60070i200208-200505

89491AGASKET, ENGINE OIL LEVEL SENSOR

main89493-60010i199801-200208

89615SENSOR, KNOCK CONTROL

main89615-22030×2i199801-200004

main89615-52010×2i200004-200208

9017908059

main90179-08059

9165140825

main91651-40825

9165160614

main91651-60614

15 parts on this diagram · 30 diagrams in section

SWITCH & RELAY & COMPUTER for Toyota LEXUS LX470

This section contains 184 genuine Toyota parts for the SWITCH & RELAY & COMPUTER system of the Toyota LEXUS LX470. Key components include: RELAY ASSY, STARTER, RELAY, IGNITION, NO.1, RELAY, IGNITION, NO.2, RELAY, IGNITION, NO.3, RESISTER, FUEL PUMP.
