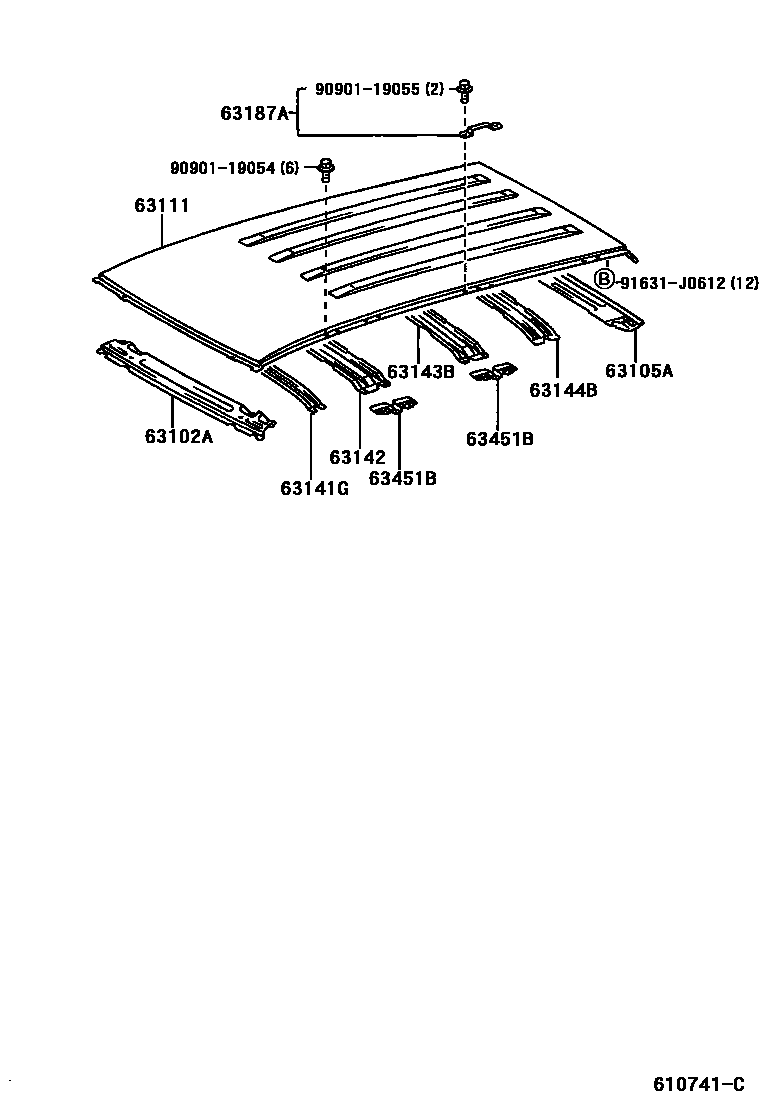

Toyota LEXUS LX470 — ROOF PANEL & BACK PANEL

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-60070i199801-200201

main63102-60071i200201-200208

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-60180i199801-199906

main63105-60181i200008-200208

63111PANEL, ROOF

main63111-60450i199801-199906

main63111-60451i199906-200008

main63111-60460i199801-199906

W(MOON ROOF)

main63111-60461i200505

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-60060i199801-200008

63142REINFORCEMENT, ROOF PANEL, NO.2

main63104-60020i199801-200208

W(MOON ROOF)

main63104-60040i200208-200505

W(MOON ROOF & ROOF RACK)

main63143-60030i199801-200008

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63144-60050i200208-200505

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63127-60020i199801-200008

63187ABRACKET, ROOF RACK, REAR

main63187-60030×6i199801-200208

63451BREINFORCEMENT, ROOF RACK, NO.1

main63451-60040×2i199801-200208

W(MOON ROOF)

9090119054

main90901-19054

9090119055

main90901-19055

91631J0612

main91631-J0612

12 parts on this diagram · 7 diagrams in section

ROOF PANEL & BACK PANEL for Toyota LEXUS LX470

This section contains 105 genuine Toyota parts for the ROOF PANEL & BACK PANEL system of the Toyota LEXUS LX470. Key components include: BRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1, BRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, RH, BRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, LH, FRAME SUB-ASSY, ROOF RACK, UPPER END, FRAME SUB-ASSY, ROOF RACK, UPPER FRONT.
