Toyota LEXUS LX470 — PACKAGE TRAY PANEL

64910JCOVER ASSY, TONNEAU

main64910-60070-A0i199801-200208

IVORY,TRIM4#

main64910-60070-A1i200505-200708

IVORY,TRIM0#

main64910-60070-B0i199801-200208

MD.GRAY,TRIM1#

main64910-60070-B1i200505-200708

STONE,TRIM1#

64931BHANGER, TONNEAU COVER, RH

main64931-60050-A0i199801-200208

IVORY,TRIM4#

main64931-60050-A1i200208-200505

IVORY,TRIM0#

main64931-60050-B0i199801-200208

MD.GRAY,TRIM1#

main64931-60050-B1i200208-200505

STONE,TRIM1#

64932BHANGER, TONNEAU COVER, LH

main64932-60030-A0i199801-200208

IVORY,TRIM4#

main64932-60030-A1i200208-200505

IVORY,TRIM0#

main64932-60030-B0i199801-200208

MD.GRAY,TRIM1#

main64932-60030-B1i200505-200610

STONE,TRIM1#

64935HOLDER, TONNEAU COVER, RH

main64935-60030-A0i199801-200208

IVORY,TRIM4#

main64935-60030-A1i200208-200505

IVORY,TRIM0#

main64935-60030-B0i199801-200208

MD.GRAY,TRIM1#

main64935-60030-B1i200505-200610

STONE,TRIM1#

64936HOLDER, TONNEAU COVER, LH

main64936-60040-A0i199801-200208

IVORY,TRIM4#

main64936-60040-A1i200505-200610

IVORY,TRIM0#

main64936-60040-B0i199801-200208

MD.GRAY,TRIM1#

main64936-60040-B1i200505-200610

STONE,TRIM1#

9018306044

main90183-06044

9324056014

main93240-56014

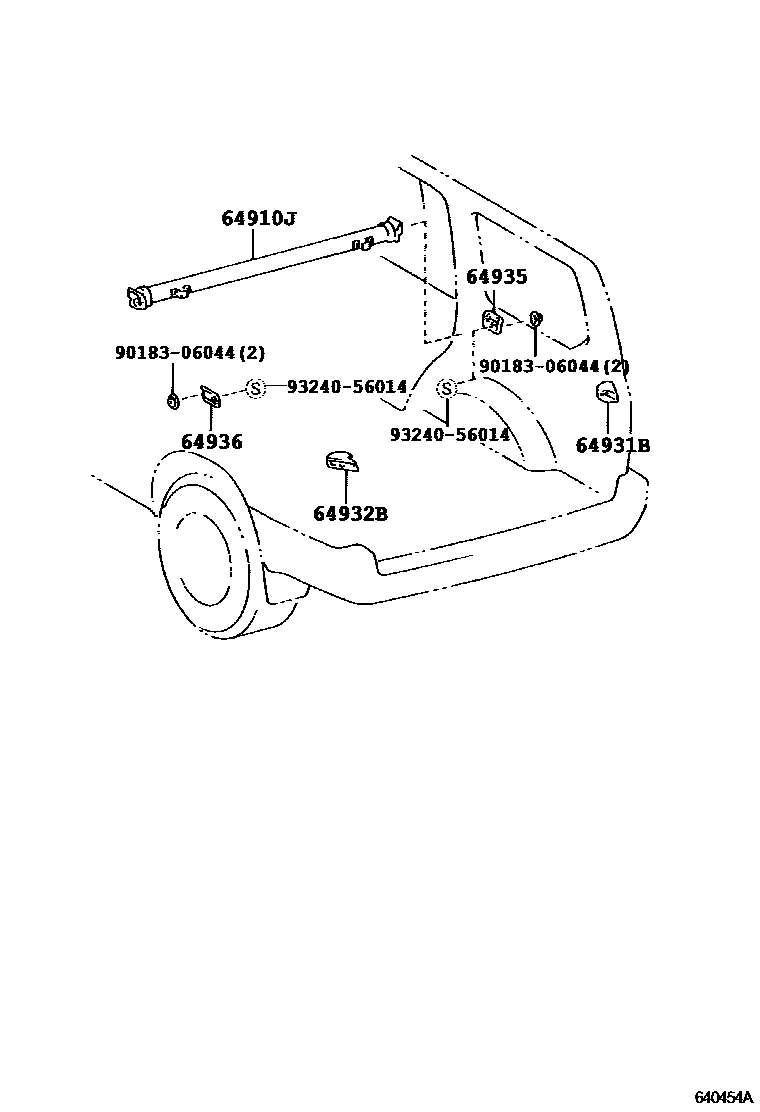

7 parts on this diagram · 1 diagram in section

PACKAGE TRAY PANEL for Toyota LEXUS LX470

This section contains 7 genuine Toyota parts for the PACKAGE TRAY PANEL system of the Toyota LEXUS LX470. Key components include: COVER ASSY, TONNEAU, HANGER, TONNEAU COVER, RH, HANGER, TONNEAU COVER, LH, HOLDER, TONNEAU COVER, RH, HOLDER, TONNEAU COVER, LH.
