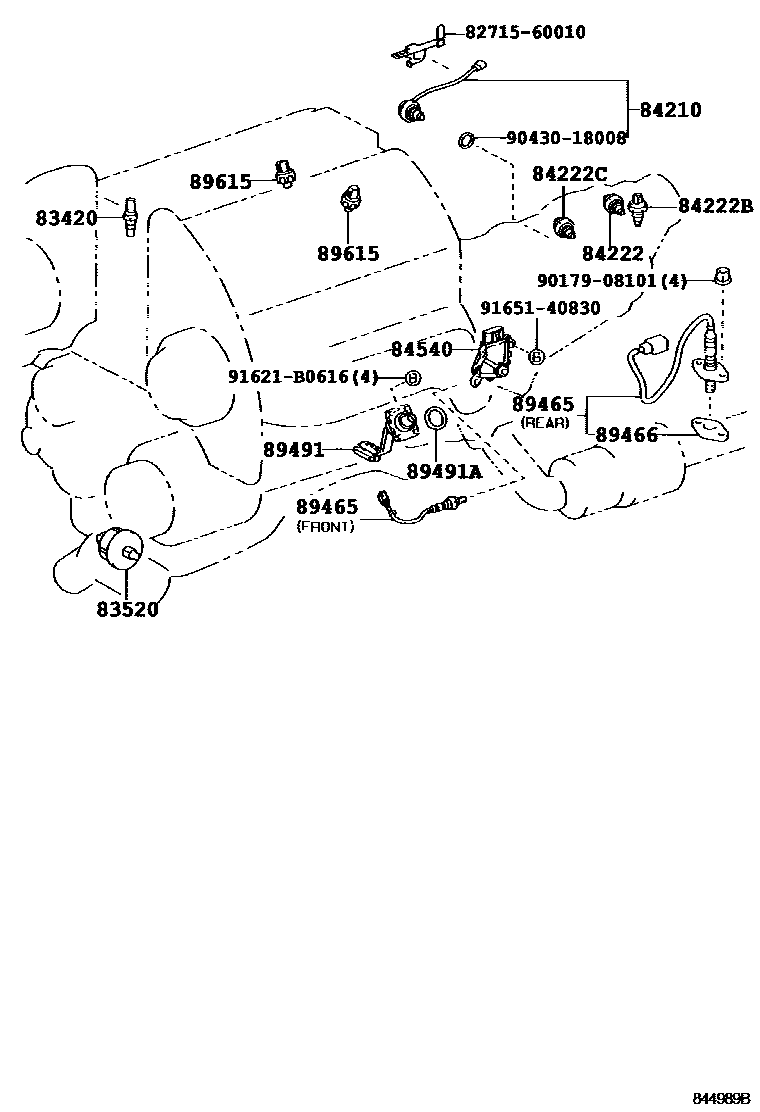

Toyota LEXUS LX470 — SWITCH & RELAY & COMPUTER

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-20040i200208-200505

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-35020i200208-200409

main83520-60050i200409-200505

84210SWITCH ASSY, BACK-UP LAMP

main84210-60030i200208-200308

84222SWITCH, TRANSFER INDICATOR, NO.1

main84222-12010i200208-200505

84222BSWITCH, TRANSFER INDICATOR, NO.2

main84222-60081i200208-200505

84222CSWITCH, TRANSFER INDICATOR, NO.3

main84222-12010i200208-200505

84540SWITCH ASSY, NEUTRAL START

main84540-51010i200208-200505

89465SENSOR, OXYGEN

main89465-60150×2i200208-200505

FRONT

main89465-69175×2i200208-200505

REAR

89466GASKET, OXYGEN SENSOR

main89466-20020×2i200208-200505

89491SENSOR, ENGINE OIL LEVEL

main89491-60070i200208-200505

89491AGASKET, ENGINE OIL LEVEL SENSOR

main89493-60010i200208-200505

89615SENSOR, KNOCK CONTROL

main89615-52010×2i200208-200505

8271560010BRACKET,WIRING HARNESS CLAMP

main82715-60010

9017908101

main90179-08101

9043018008

main90430-18008

91621B0616

main91621-B0616

9165140830

main91651-40830

17 parts on this diagram · 11 diagrams in section

SWITCH & RELAY & COMPUTER for Toyota LEXUS LX470

This section contains 144 genuine Toyota parts for the SWITCH & RELAY & COMPUTER system of the Toyota LEXUS LX470. Key components include: RELAY ASSY, STARTER, RELAY, IGNITION, NO.2, RELAY, IGNITION, NO.3, RESISTER, FUEL PUMP, KNOB SUB-ASSY, CONTROL.
