Toyota LEXUS LX450 — SPEAKER

86150SPEAKER ASSY, W/BOX, NO.1

main86150-60030i199511-199801

86160SPEAKER ASSY, FRONT NO.1

main86160-60160×2i199511-199801

DOOR

main86160-60180i199511-199801

INSTRUMENT PANEL RH

main86160-60190i199511-199801

INSTRUMENT PANEL LH

86160BSPEAKER ASSY, REAR

main86160-60170×2i199511-199801

86264GRILLE, SPEAKER, FRONT

main86269-60070-E0×2i199511-199801

OAK,TRIM4#

86264BGRILLE, SPEAKER, REAR

main86269-60080-E0×2i199511-199801

OAK,TRIM4#

9015960076

main90159-60076

9016850023

main90168-50023

9018906118

main90189-06118

9163560616

main91635-60616

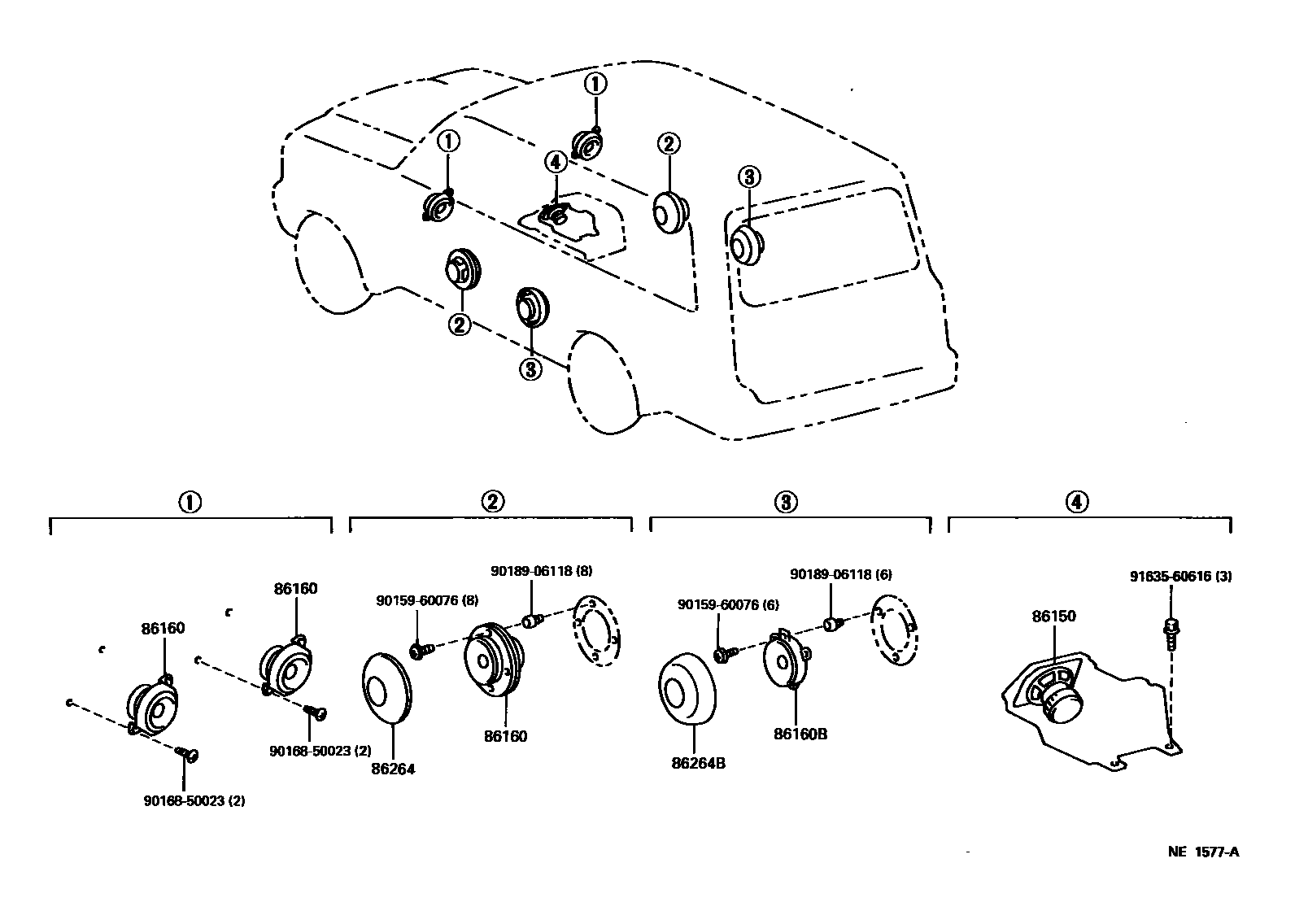

9 parts on this diagram · 1 diagram in section

SPEAKER for Toyota LEXUS LX450

This section contains 9 genuine Toyota parts for the SPEAKER system of the Toyota LEXUS LX450. Key components include: SPEAKER ASSY, W/BOX, NO.1, SPEAKER ASSY, FRONT NO.1, SPEAKER ASSY, REAR, GRILLE, SPEAKER, FRONT, GRILLE, SPEAKER, REAR.
