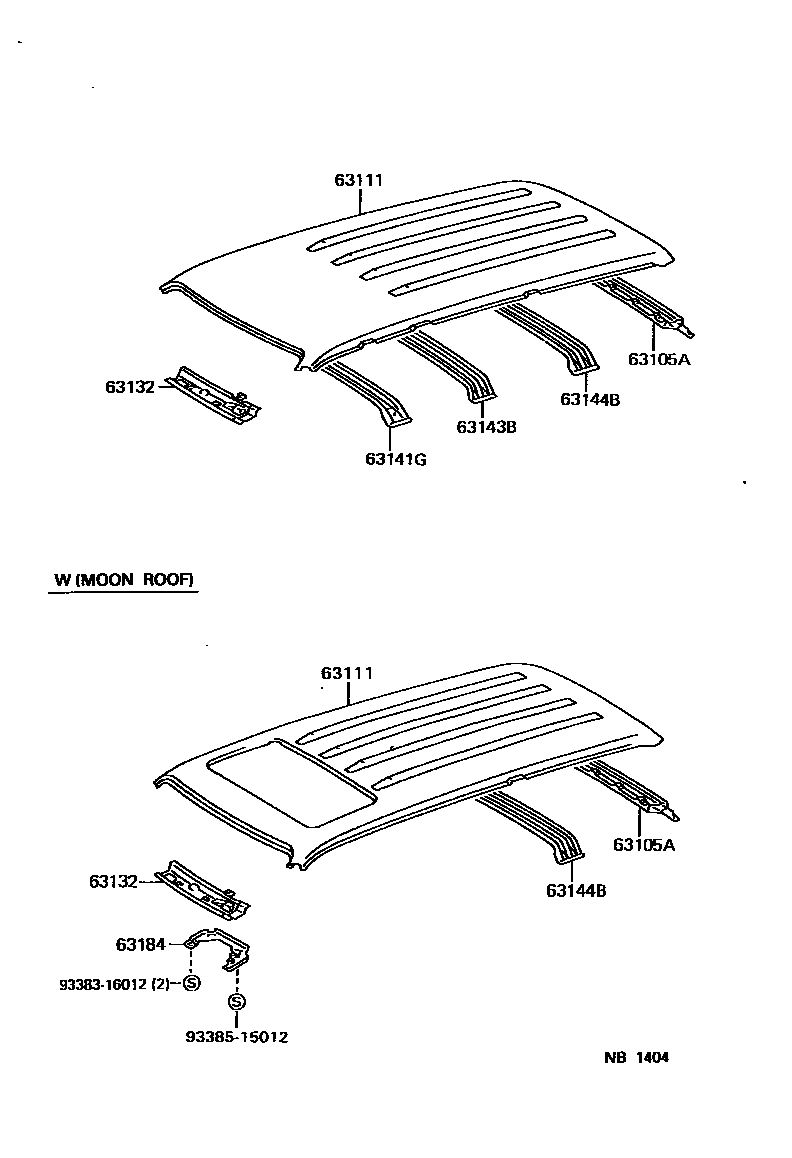

Toyota LEXUS LX450 — ROOF PANEL & BACK PANEL

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-60130i199511-199801

63111PANEL, ROOF

main63014-60020i199511-199801

W(MOON ROOF)

main63111-60190i199511-199801

63132PANEL, WINDSHIELD HEADER, INNER

main63103-60012i199511-199801

main63103-60022i199511-199801

W(MOON ROOF)

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-60010i199511-199801

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-60010i199511-199801

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-60010×2i199511-199801

63184BRACKET, ROOF CONSOLE, REAR

main63184-60020i199511-199801

9338316012

main93383-16012

9338515012

main93385-15012

9 parts on this diagram · 2 diagrams in section

ROOF PANEL & BACK PANEL for Toyota LEXUS LX450

This section contains 58 genuine Toyota parts for the ROOF PANEL & BACK PANEL system of the Toyota LEXUS LX450. Key components include: FRAME SUB-ASSY, BACK DOOR OPENING, PANEL, ROOF, PANEL, WINDSHIELD HEADER, INNER, REINFORCEMENT, ROOF PANEL, NO.1, REINFORCEMENT, ROOF PANEL, NO.3.
