Toyota LEXUS LS600HL — V-BELT

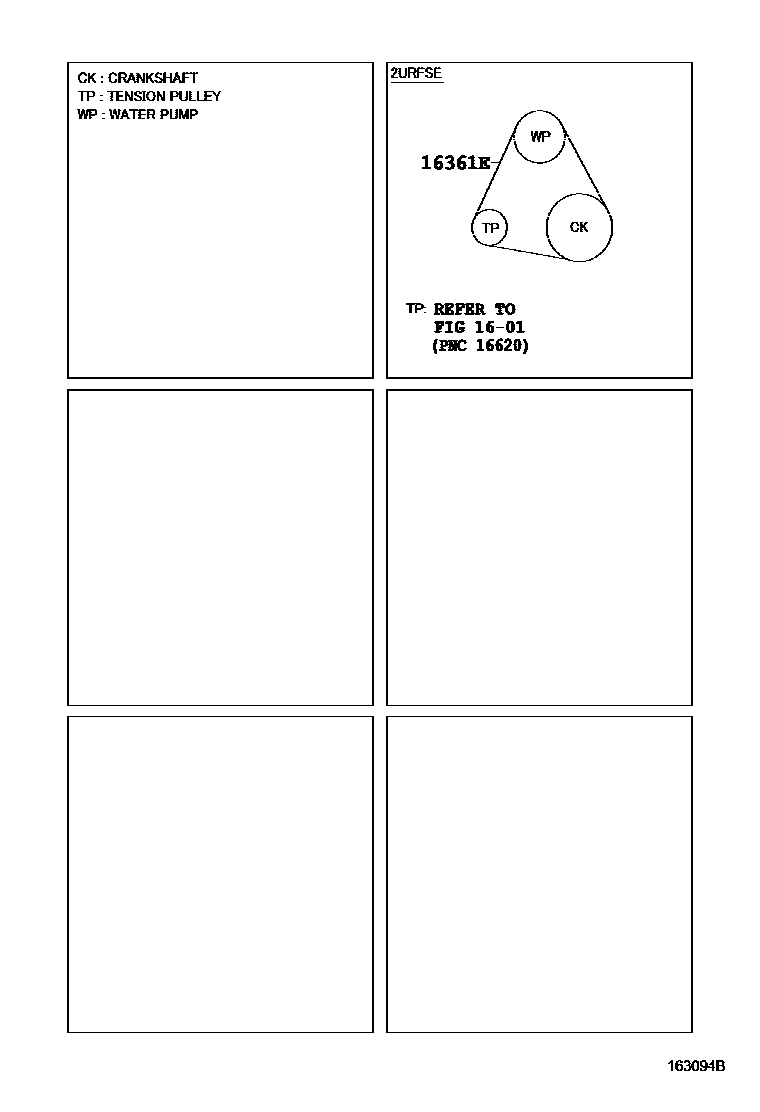

Parts diagram
1601WATER PUMP
→ Go to FIG 16-01
16361EBELT, V(FOR WATER PUMP & CRANKSHAFT PULLEY)
main90916-02661i201209

2 parts on this diagram · 1 diagram in section

V-BELT for Toyota LEXUS LS600HL

This section contains 2 genuine Toyota parts for the V-BELT system of the Toyota LEXUS LS600HL. Key components include: WATER PUMP, BELT, V(FOR WATER PUMP & CRANKSHAFT PULLEY).
