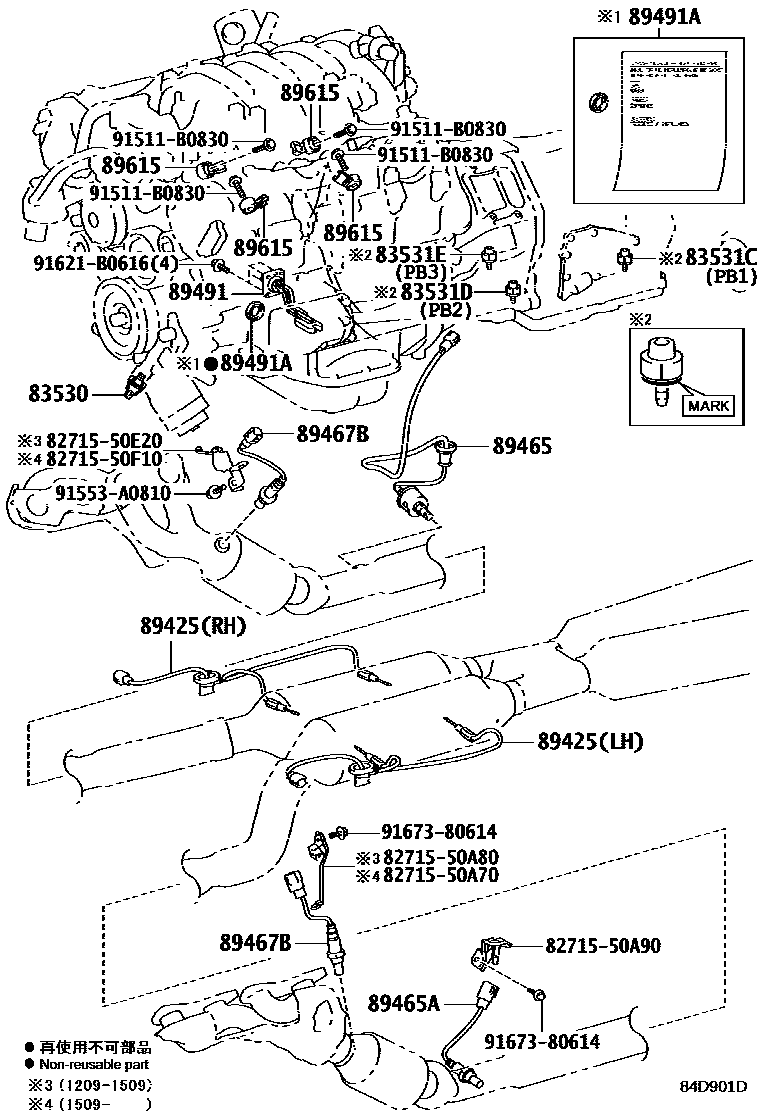

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-60020iUVF46201209

83531CSWITCH, OIL PRESSURE, (PB1)

main83531-30011iUVF46201209-201708

MARK = BLUE

83531DSWITCH, OIL PRESSURE, (PB2)

main83531-30011iUVF46201209-201708

MARK = BLUE

83531ESWITCH, OIL PRESSURE, (PB3)

main83531-30022iUVF46201209-201407

MARK = PURPLE

main83531-30023iUVF46201408-201708

MARK = PURPLE

89425SENSOR, EXHAUST GAS TEMPERATURE

main89425-50040iUVF46201209

RH

main89425-50050iUVF46201209

LH

89465SENSOR, OXYGEN

main89465-50170iUVF46201209-201509

main89465-50260iUVF46201509

89465ASENSOR, OXYGEN NO.2

main89465-50200iUVF46201209-201509

main89465-50250iUVF46201509

89467BSENSOR, AIR FUEL RATIO

main89467-53030×2iUVF46201209-201509

main89467-53060×2iUVF46201509

89491SENSOR, ENGINE OIL LEVEL

main89491-50050iUVF46201209

89491AGASKET, ENGINE OIL LEVEL SENSOR

main89493-60010iUVF46201209

89615SENSOR, KNOCK CONTROL

main89615-20090×4iUVF46201209

8271550A70BRACKET,WIRING HARNESS CLAMP

main82715-50A70

8271550A80BRACKET,WIRING HARNESS CLAMP

main82715-50A80

8271550A90BRACKET,WIRING HARNESS CLAMP

main82715-50A90

8271550E20BRACKET,WIRING HARNESS CLAMP

main82715-50E20

8271550F10BRACKET,WIRING HARNESS CLAMP

main82715-50F10

91511B0830

main91511-B0830

91553A0810

main91553-A0810

91621B0616

main91621-B0616

9167380614

main91673-80614

20 parts on this diagram · 11 diagrams in section
