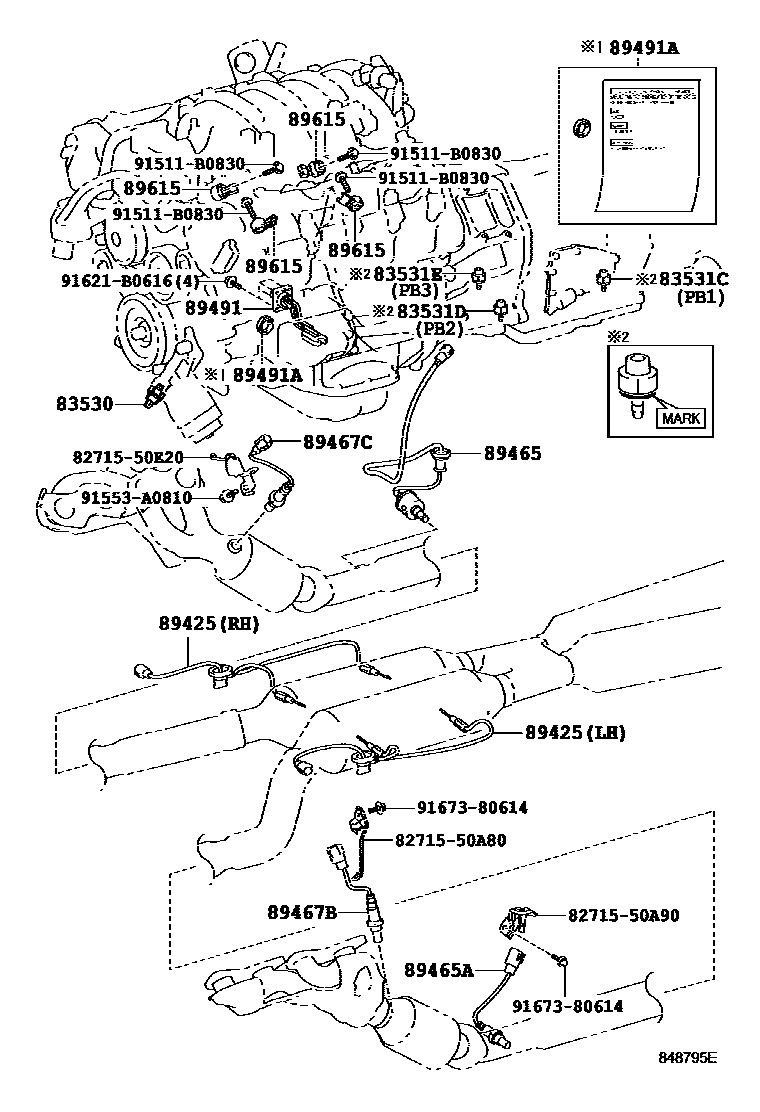

Toyota LEXUS LS600HL — SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 1/2 0003 1ENGINE ROOM 2/2 0004 1COWL 0005 1INSTRUMENT PANEL 0006 1INSTRUMENT PANEL 0007 1STEERING 0008 1FRONT SEAT 0009 1REAR SEAT 0010 1DOOR,ROOF,FLOOR & LUGGAGE 0011 1DOOR,ROOF,FLOOR & LUGGAGE

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iUVF46201104

DENSO

main83530-60020iUVF46201104

YAZAKI

83531CSWITCH, OIL PRESSURE, (PB1)

main83531-30011iUVF46200809-200911

MARK = BLUE

83531DSWITCH, OIL PRESSURE, (PB2)

main83531-30011iUVF46200809-200911

MARK = BLUE

83531ESWITCH, OIL PRESSURE, (PB3)

main83531-30021iUVF46200704-200809

MARK = PURPLE

main83531-30022iUVF46201112-201209

MARK = PURPLE

sub83531-30023

89425SENSOR, EXHAUST GAS TEMPERATURE

main89425-50040iUVF46200911

RH

main89425-50050iUVF46200809-200911

LH

89465SENSOR, OXYGEN

main89465-50170iUVF46200704-200809

89465ASENSOR, OXYGEN NO.2

main89465-50200iUVF46200704-200809

89467BSENSOR, AIR FUEL RATIO

main89467-50030iUVF46200704-200809

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-50040iUVF46200704-200809

89491SENSOR, ENGINE OIL LEVEL

main89491-50050iUVF46200704-200809

89491AGASKET, ENGINE OIL LEVEL SENSOR

main89493-60010iUVF46200809-200911

89615SENSOR, KNOCK CONTROL

main89615-20090×4iUVF46200809-200911

8271550A80BRACKET,WIRING HARNESS CLAMP

main82715-50A80

8271550A90BRACKET,WIRING HARNESS CLAMP

main82715-50A90

8271550E20BRACKET,WIRING HARNESS CLAMP

main82715-50E20

91511B0830

main91511-B0830

91553A0810

main91553-A0810

91621B0616

main91621-B0616

9167380614

main91673-80614

19 parts on this diagram · 11 diagrams in section
