Toyota LEXUS LS600HL — METER

83100METER ASSY, COMBINATION

main83800-50E60supersedes 83800-50E50i201509-201609

EXECUTIVE PACKAGE(4SEAT)

main83800-50E70supersedes 83800-50E50i201509-201609

CANADA SPEC

83138GGLASS, COMBINATION METER

main83852-50780i201209

83295PANEL, METER DISPLAY

main83889-50790i201209-201309

main83889-50A60i201309-201402

main83889-50C40supersedes 83889-50770i201609

83801COMPUTER SUB-ASSY, METER NO.1

main83801-50D70i201609

main83801-50880supersedes 83801-50870i201209-201309

EXECUTIVE PACKAGE(4SEAT)

main83801-50890supersedes 83801-50870i201209-201309

CANADA SPEC

main83801-50A00supersedes 83801-50870i201209-201309

CANADA SPEC&EXECUTIVE PACKAGE(5SEAT)

main83801-50A10supersedes 83801-50870i201209-201309

KOREA SPEC&EXECUTIVE PACKAGE(4SEAT); KOREA SPEC&EXECUTIVE PACKAGE(5SEAT)

main83801-50B60supersedes 83801-50B50i201309-201509

EXECUTIVE PACKAGE(4SEAT)

main83801-50B70supersedes 83801-50B50i201309-201509

CANADA SPEC

main83801-50B80i201309-201410

CANADA SPEC&EXECUTIVE PACKAGE(5SEAT)

main83801-50B90i201309-201402

KOREA SPEC&EXECUTIVE PACKAGE(4SEAT); KOREA SPEC&EXECUTIVE PACKAGE(5SEAT)

main83801-50E60supersedes 83801-50E50i201509-201609

EXECUTIVE PACKAGE(4SEAT)

main83801-50E70supersedes 83801-50E50i201509-201609

CANADA SPEC

83855BRACKET, COMBINATION METER, NO.1

main83855-50780i201209

83910CLOCK ASSY

main83910-50080i201209-201306

main83910-50081i201306

9009900322

main90099-00322

9356855016

main93568-55016

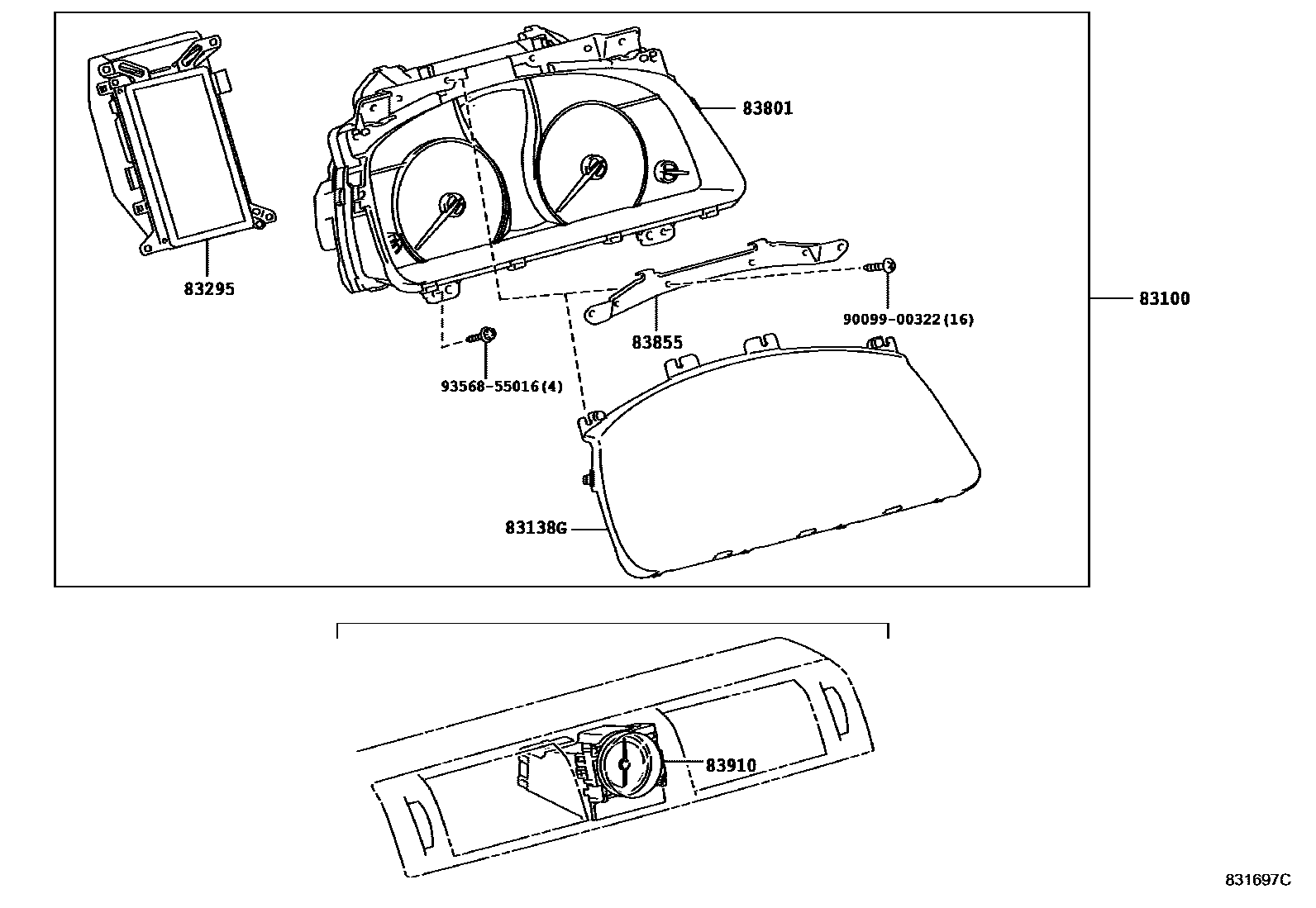

8 parts on this diagram · 1 diagram in section

METER for Toyota LEXUS LS600HL

This section contains 8 genuine Toyota parts for the METER system of the Toyota LEXUS LS600HL. Key components include: METER ASSY, COMBINATION, GLASS, COMBINATION METER, PANEL, METER DISPLAY, COMPUTER SUB-ASSY, METER NO.1, BRACKET, COMBINATION METER, NO.1.
