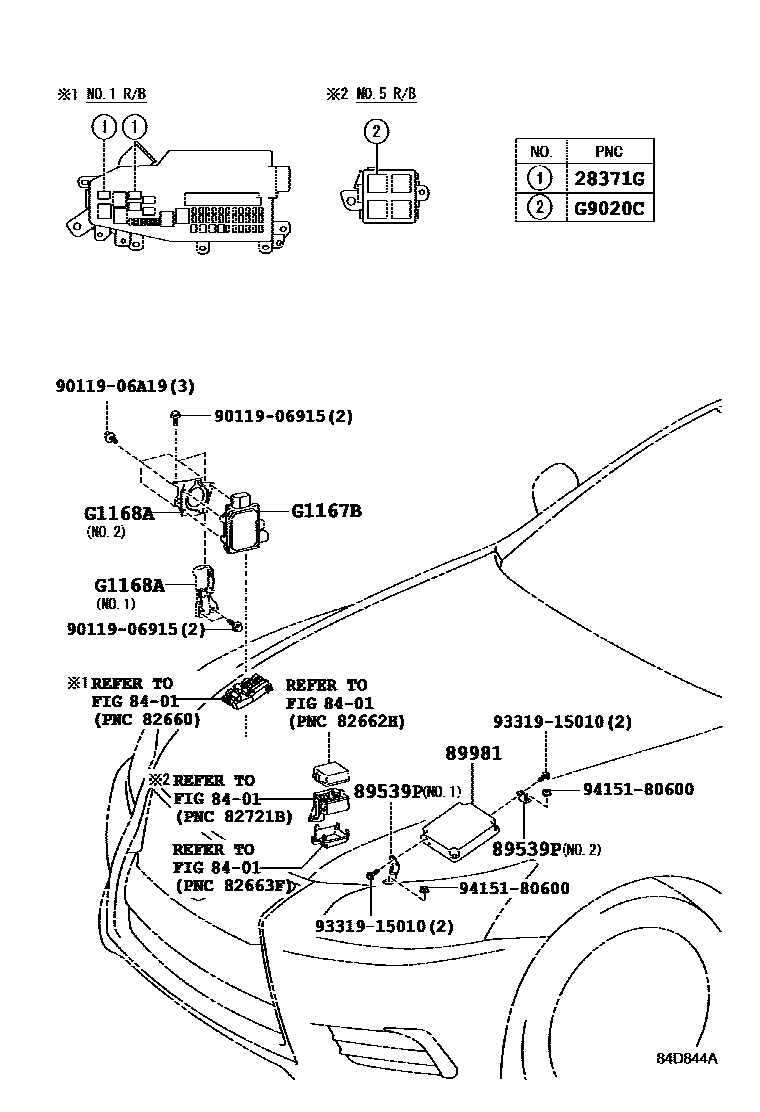

Toyota LEXUS LS600HL — HEV CONTROL COMPUTER

28371GRELAY, IGNITION CONTACT

main90987-02027×2i2URFSE..UVF46201209-201708

8401

89539PBRACKET, COMPUTER

main89539-50040iUVF46201209

NO.1

main89539-50050iUVF46201209

NO.2

89981COMPUTER, HYBRID VEHICLE CONTROL

main89981-50140iUVF46201209-201212

sub89981-50141

main89981-50180iUVF46201309-201509

main89981-50220iUVF46201509

main89981-50170supersedes 89981-50141iUVF46201209-201309

KOREA SPEC

G1167BCONTROLLER, OIL PUMP MOTOR

mainG116750011iUVF46201209

G1168ABRACKET, OIL PUMP MOTOR CONTROLLER

mainG116850010iUVF46201209

NO.1

mainG116850020iUVF46201209

NO.2

G9020CRELAY, OIL PUMP

main90987-02025iUVF46201209-201708

9011906915

main90119-06915

9011906A19

main90119-06A19

9331915010

main93319-15010

9415180600

main94151-80600

11 parts on this diagram · 1 diagram in section
