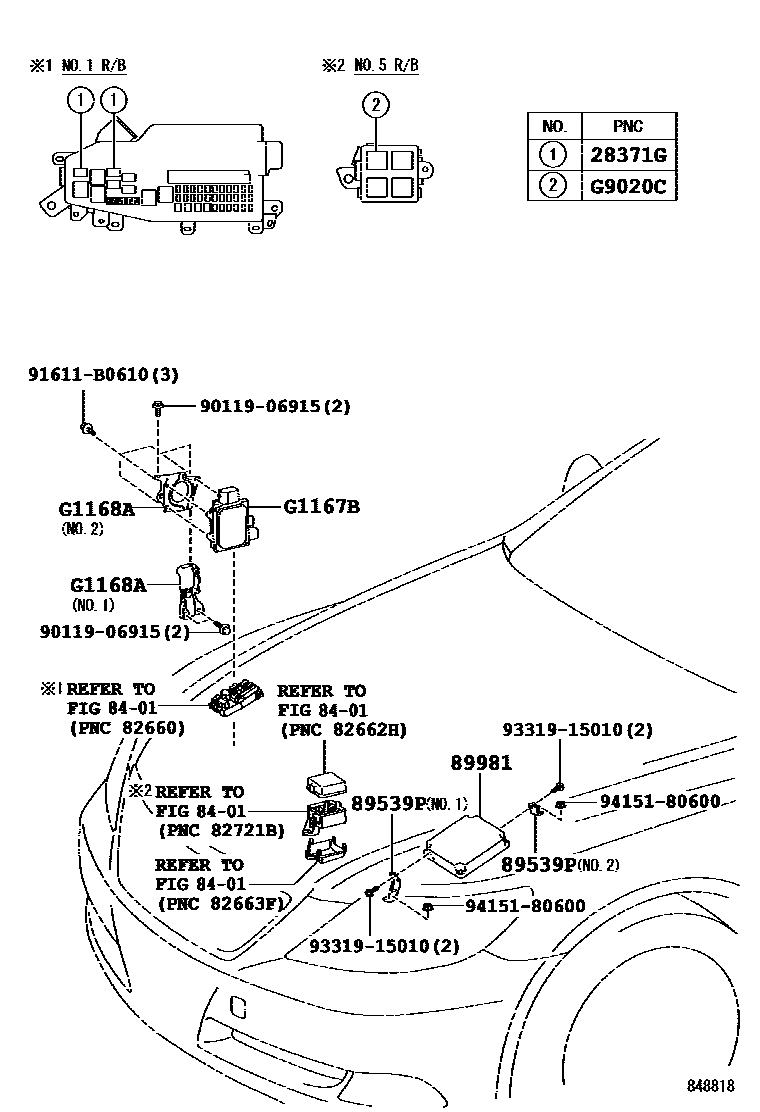

Toyota LEXUS LS600HL — HEV CONTROL COMPUTER

28371GRELAY, IGNITION CONTACT

main90987-02027×2i2URFSE..UVF46200911-201209

8401

89539PBRACKET, COMPUTER

main89539-50040iUVF46200911

NO.1

main89539-50050iUVF46200911

NO.2

89981COMPUTER, HYBRID VEHICLE CONTROL

main89981-50040supersedes 89981-50130iUVF46200704-200809

KOREA SPEC

main89981-50080supersedes 89981-50130iUVF46200809-200911

KOREA SPEC

main89981-50120supersedes 89981-50130iUVF46200911

KOREA SPEC

G1167BCONTROLLER, OIL PUMP MOTOR

mainG116730021supersedes G116750011iUVF46201203

KOREA SPEC

G1168ABRACKET, OIL PUMP MOTOR CONTROLLER

mainG116850010iUVF46200704-200809

NO.1

mainG116850020iUVF46200809-200911

NO.2

G9020CRELAY, OIL PUMP

main90987-02025iUVF46200911-201209

9011906915

main90119-06915

91611B0610

main91611-B0610

9331915010

main93319-15010

9415180600

main94151-80600

11 parts on this diagram · 1 diagram in section
