Toyota LEXUS LS600HL — FLOOR PAN & LOWER BACK PANEL

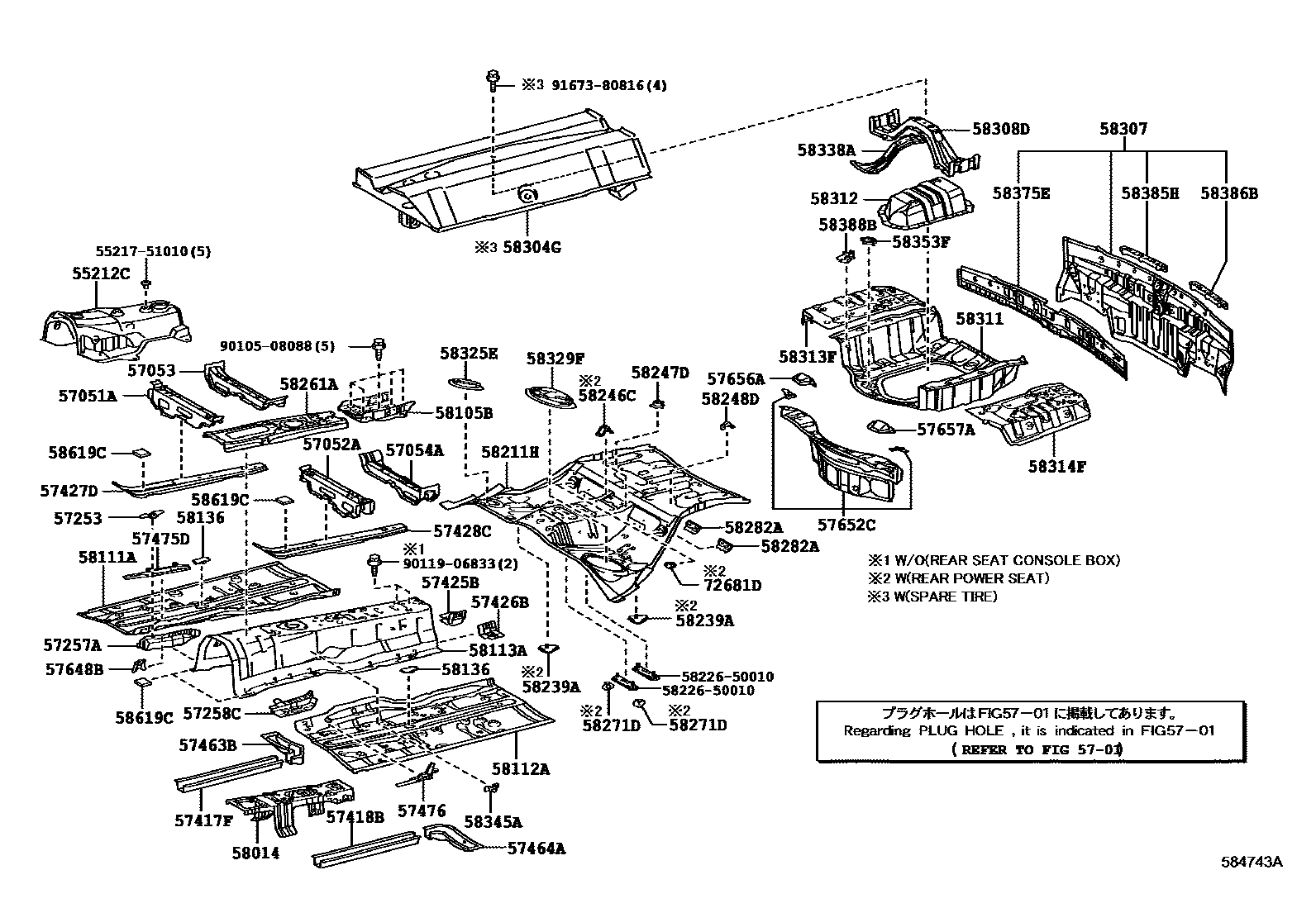

Parts diagram

55212CSILENCER, FRONT PANEL, LOWER

main55212-50070i201209

5701HOLE PLUG

→ Go to FIG 57-01

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-50020i201209

57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-50030i201209

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-50030i201209

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

main57054-50030i201209

57253BRACKET, ENGINE REAR MOUNTING, NO.1

main57253-50020i201209

57257ABRACKET, ENGINE REAR MOUNTING MEMBER, RH

main57257-50050i201209

57258CBRACKET, ENGINE REAR MOUNTING MEMBER, LH

main57258-50050i201209

57417FREINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-50071i201209

57418BREINFORCEMENT, FRONT FLOOR UNDER, LH

main57417-50071i201209

57425BREINFORCEMENT, FRONT FLOOR, NO.2 RH

main57425-50050i201209-201708

57426BREINFORCEMENT, FRONT FLOOR, NO.2 LH

main57425-50050i201209-201708

57427DREINFORCEMENT, FRONT FLOOR, NO.3 RH

main57055-50010i201209

57428CREINFORCEMENT, FRONT FLOOR, NO.3 LH

main57056-50010i201209

57463BREINFORCEMENT, CENTER FLOOR CROSSMEMBER, RH

main57463-50040i201209

57464AREINFORCEMENT, CENTER FLOOR CROSSMEMBER, LH

main57464-50030i201209

57475DPLATE, FRONT FLOOR CROSSMEMBER, RH

main57475-50010i201209

57476PLATE, FRONT FLOOR CROSSMEMBER, LH

main57476-50020i201209

57648BREINFORCE, REAR FLOOR SIDE MEMBER, REAR UPPER RH

main57649-50010i201209

57652CMEMBER, REAR FLOOR CROSS, NO.1

main57652-50902i201209

57656ABRACKET, EXHAUST PIPE MOUNTING, NO.1

main57656-50020i201209

57657ABRACKET, EXHAUST PIPE MOUNTING, NO.2

main57657-50020i201209

58014PANEL SUB-ASSY, FRONT FLOOR, REAR LOWER

main58014-50050i201209

58105BPANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB

main58105-50010i201209

58111APAN, FRONT FLOOR, RH

main58111-50905i201209

58112APANEL, FRONT FLOOR, LH

main58112-50908i201209

58113APANEL, FRONT FLOOR, CENTER

main58113-50914i201209

58136COVER, FRONT FLOOR HOLE

main58136-51010×2i201209

58211HPAN, CENTER FLOOR

main58211-50930i201209-201509

main58211-50935i201509

58239APLATE, BELT ANCHOR NUT

main58239-50030×2i201209

58246CBRACKET, REAR SEAT HINGE, CENTER NO.2

main58246-50010×2i201209

58247DBRACKET, REAR SEAT HINGE, OUTER RH

main58247-50020i201209

58248DBRACKET, REAR SEAT HINGE, OUTER LH

main58247-50020i201209

58261ACOVER, TRANSMISSION

main58261-50030i201209

58271DREINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.3

main58271-50020×2i201209

58282ABASE, BELT ANCHOR TO FLOOR PAN, NO.3 RH

main58282-50040×2i201209

58304GREINFORCE SUB-ASSY, BODY LOWER BACK PANEL

main58304-50030i201410-201607

TIRE & DISC WHEEL-245/45R19 RE8J(SUMMER TIRE) RFT

main58304-50031i201608-201609

TIRE & DISC WHEEL-245/45R19 RE8J(SUMMER TIRE) RFT

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-50071i201209-201508

main58307-50072i201509

58308DBRACKET SUB-ASSY, REAR FLOOR CROSSMEMBER

main58308-50010i201209-201405

main58308-50011i201406

58311PAN, REAR FLOOR

main58311-50901i201209

58312PANEL, REAR BODY FLOOR, NO.1

main58312-50010i201209

58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH

main58305-50021i201209-201708

58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH

main58306-50030i201209-201708

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-50020i201209

58329FCOVER, REAR FLOOR SERVICE HOLE, NO.2

main58329-50010i201209

58338AREINFORCEMENT, REAR FLOOR PAN, NO.2

main58338-50020i201209-201405

main58338-50021i201406

58345ABRACKET, REAR FLOOR HEAT INSULATOR, NO.1

main58345-50010i201209

58353FREINFORCEMENT, REAR FLOOR PANEL, NO.3

main58353-50010i201209

58375EREINFORCEMENT, BODY LOWER BACK PANEL

main58375-50040i201209

58385HBRACKET, REAR BUMPER COVER, NO.1

main58385-50010i201209

58386BBRACKET, REAR BUMPER COVER, NO.2

main58386-50010i201209

58388BBRACKET, PLATE REAR FLOOR

main58388-50020i201209

58619CSHEET, CENTER FLOOR SILENCER SUB

main58619-30080×12i201209

72681DHOOK, REAR SEATBACK LOCK, LOWER

main72681-50020×2i201209

5521751010STRIP, DASH PANEL SILENCER FINISH

main55217-51010

5822650010PLATE, FLOOR PANEL FRONT END, LOWER

main58226-50010

9010508088

main90105-08088

9011906833

main90119-06833

9167380816

main91673-80816

60 parts on this diagram · 4 diagrams in section

FLOOR PAN & LOWER BACK PANEL for Toyota LEXUS LS600HL

This section contains 99 genuine Toyota parts for the FLOOR PAN & LOWER BACK PANEL system of the Toyota LEXUS LS600HL. Key components include: PROTECTOR, DIFFERENTIAL SUPPORT, NO.1, PROTECTOR, DIFFERENTIAL SUPPORT, NO.2, SEAL, FRONT FENDER MAIN, RH, CLIP, NO.1(FOR FRONT FENDER SEAL), CLIP, NO.2(FOR FRONT FENDER SEAL).
