Toyota LEXUS LS600HL — ACCELERATOR LINK

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-50030i201209-201308

main78110-50031i201309-201601

main78110-50080i201602

78111PEDAL, ACCELERATOR

main78101-50030i201309

main78111-30200i201209-201309

78114ABRACKET, ACCELERATOR PEDAL SUPPORT

main78108-50030i201209-201309

78119STOPPER, ACCELERATOR PEDAL ROD

main78119-50070i201209

78126BRACKET, ACCELERATOR PEDAL ROD

main78126-30060i201209-201309

9017906274

main90179-06274

9151160612

main91511-60612

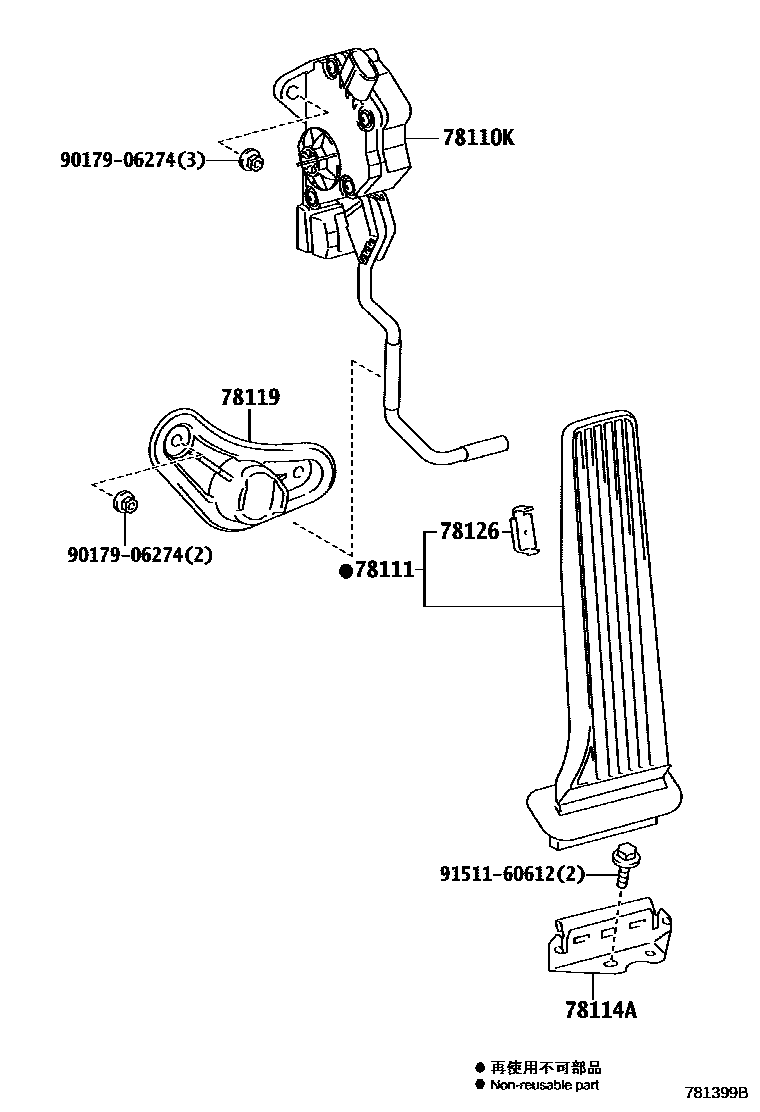

7 parts on this diagram · 2 diagrams in section

ACCELERATOR LINK for Toyota LEXUS LS600HL

This section contains 9 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota LEXUS LS600HL. Key components include: ROD ASSY, ACCELERATOR PEDAL(W/SENSOR), PEDAL, ACCELERATOR, BRACKET, ACCELERATOR PEDAL SUPPORT, PAD, ACCELERATOR PEDAL, STOPPER, ACCELERATOR PEDAL ROD.
