Toyota LEXUS LS600H/600HL — CLEARANCE & BACK SONAR

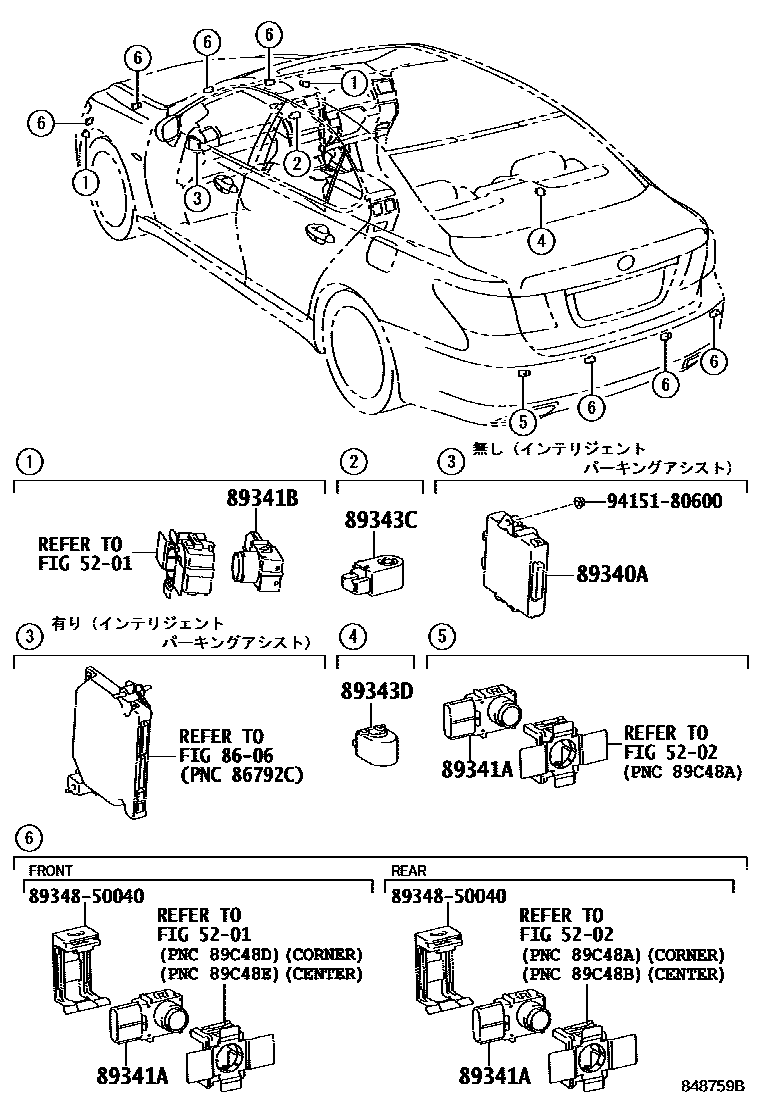

Parts diagram

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

5202REAR BUMPER & BUMPER STAY

→ Go to FIG 52-02

8606CAMERA & REAR MONITOR DISPLAY

→ Go to FIG 86-06

89340ACOMPUTER ASSY, CLEARANCE WARNING

main89340-50040i200704-200809

89341ASENSOR, ULTRASONIC, NO.1

main89341-50060-A1×8i200704-200707

main89341-50060-A2×8i200704-200809

main89341-50060-B0×8i200704-200809

main89341-50060-B1×8i200704-200809

main89341-50060-B2×8i200709-200809

main89341-50060-B3×8i201109-201209

main89341-50060-C0×8i200704-200809

main89341-50060-C1×8i200704-200809

main89341-50060-C2×8i201009-201209

main89341-50060-D1×8i200704-200809

main89341-50060-D2×8i200911-201209

main89341-50060-E0×8i200704-200809

main89341-50060-E1×8i200704-200809

main89341-50060-E2×8i200911-201209

main89341-50060-G0×8i200704-200809

main89341-50060-G1×8i200911-201209

main89341-50060-J0×8i200704-200809

main89341-50060-J1×8i200911-201209

main89341-50060-J2×8i200911-201209

89341BSENSOR, ULTRASONIC, NO.2

main89341-50070-A1×2i200704-200707

main89341-50070-A2×2i200704-200809

main89341-50070-B0×2i200704-200809

main89341-50070-B1×2i200704-200809

main89341-50070-B2×2i200709-200809

main89341-50070-B3×2i201109-201209

main89341-50070-C0×2i200704-200809

main89341-50070-C1×2i200704-200809

main89341-50070-C2×2i201009-201209

main89341-50070-D1×2i200704-200809

main89341-50070-D2×2i200911-201209

main89341-50070-E0×2i200704-200809

main89341-50070-E1×2i200704-200809

main89341-50070-E2×2i200911-201209

main89341-50070-G0×2i200704-200809

main89341-50070-G1×2i200911-201209

main89341-50070-J0×2i200704-200809

main89341-50070-J1×2i200911-201209

main89341-50070-J2×2i200911-201209

89343CBUZZER, CLEARANCE WARNING, NO.1

main89343-50050i200704-200809

89343DBUZZER, CLEARANCE WARNING, NO.2

main89747-48020i200704-200809

main89343-50060i200704-200801

8934850040RETAINER, ULTRASONIC SENSOR, NO.1

main89348-50040

9415180600

main94151-80600

10 parts on this diagram · 2 diagrams in section

CLEARANCE & BACK SONAR for Toyota LEXUS LS600H/600HL

This section contains 10 genuine Toyota parts for the CLEARANCE & BACK SONAR system of the Toyota LEXUS LS600H/600HL. Key components include: FRONT BUMPER & BUMPER STAY, REAR BUMPER & BUMPER STAY, CAMERA & REAR MONITOR DISPLAY, COMPUTER ASSY, CLEARANCE WARNING, SENSOR, ULTRASONIC, NO.1.
