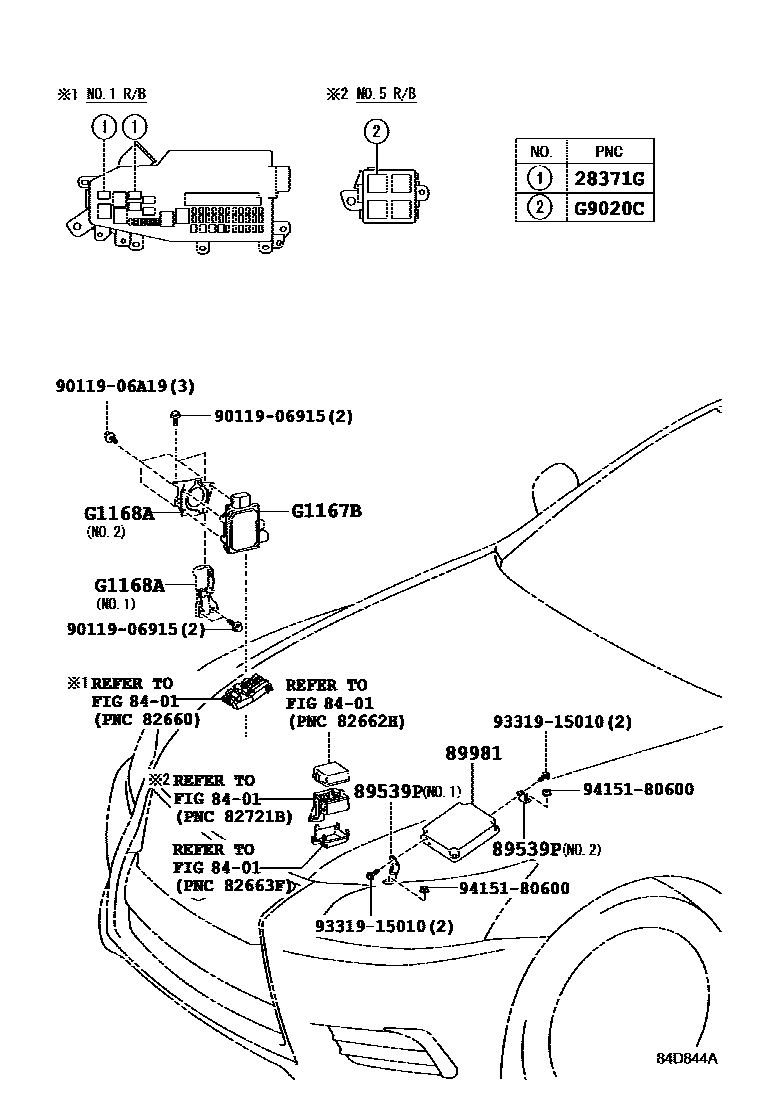

Toyota LEXUS LS600H/600HL — HEV CONTROL COMPUTER

28371GRELAY, IGNITION CONTACT

main90987-02027×2i201209-201708

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89539PBRACKET, COMPUTER

main89539-50040i201209

NO.1

main89539-50050i201209

NO.2

89981COMPUTER, HYBRID VEHICLE CONTROL

main89981-50150i201209-201309

main89981-50190i201309

G1167BCONTROLLER, OIL PUMP MOTOR

mainG116750011i201209

G1168ABRACKET, OIL PUMP MOTOR CONTROLLER

mainG116850010i201209

NO.1

mainG116850020i201209

NO.2

G9020CRELAY, OIL PUMP

main90987-02025i201209-201708

9011906915

main90119-06915

9011906A19

main90119-06A19

9331915010

main93319-15010

9415180600

main94151-80600

11 parts on this diagram · 1 diagram in section

HEV CONTROL COMPUTER for Toyota LEXUS LS600H/600HL

This section contains 11 genuine Toyota parts for the HEV CONTROL COMPUTER system of the Toyota LEXUS LS600H/600HL. Key components include: RELAY, IGNITION CONTACT, SWITCH & RELAY & COMPUTER, BRACKET, COMPUTER, COMPUTER, HYBRID VEHICLE CONTROL, CONTROLLER, OIL PUMP MOTOR.
