Toyota LEXUS LS500/500H — PRE-COLLISION SYSTEM

5503COWL PANEL & WINDSHIELD GLASS

→ Go to FIG 55-03

8609LANE-KEEPING ASSIST

→ Go to FIG 86-09

86401HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER

main86401-50010i201710-201809

PRE-COLLISION SYSTEM-WITHOUT

main86401-50030i201809-201906

PRE-COLLISION SYSTEM-WITHOUT

main00000-00000supersedes 86401-50031i201804-202010

PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+A,NOT APPLICABLE

main86401-50031i201907-202010

PRE-COLLISION SYSTEM-WITHOUT

86461HOOD, FORWARD RECOGNITION

main86461-30010i202310

86464ALATCH, FORWARD RECOGNITION

main86464-26010i201809-202010

PRE-COLLISION SYSTEM-WITHOUT

main86464-48011i201710-201809

PRE-COLLISION SYSTEM-WITHOUT

main00000-00000supersedes 86464-26010i201804-202010

PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+A,NOT APPLICABLE

86466DCOVER, FORWARD RECOGNITION, NO.1

main86466-50021i202010-202310

main86467-50040i202310

main00000-00000supersedes 86466-50021i201804-202010

PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+A,NOT APPLICABLE

main86466-50020supersedes 86466-50021i201710-201910

PRE-COLLISION SYSTEM-WITHOUT

main86466-50060i202111-202510

LEXUS TEAMMATE

main86467-50050i202310

LEXUS SAFETY SYSTEM+A

86466ECOVER, FORWARD RECOGNITION, NO.2

main86466-50010i202010-202310

main86466-50050i202310

main00000-00000supersedes 86466-50010i201804-202010

PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+A,NOT APPLICABLE

main86466-50070i202111-202510

LEXUS TEAMMATE

8646CCAMERA, FORWARD RECOGNITION

main8646C-50010i201710-201809

PRE-COLLISION SYSTEM-WITHOUT

main8646C-50020i201809-201909

PRE-COLLISION SYSTEM-WITHOUT

main8646C-50030i201909-202010

PRE-COLLISION SYSTEM-WITHOUT

main8646C-50040i202010-202111

main8646C-50052i202111-202310

main8646C-50090i202310-202411

main8646C-50130i202411-202510

main00000-00000i201804-202010

PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+A,NOT APPLICABLE

9046705171

main90467-05171

9046705172

main90467-05172

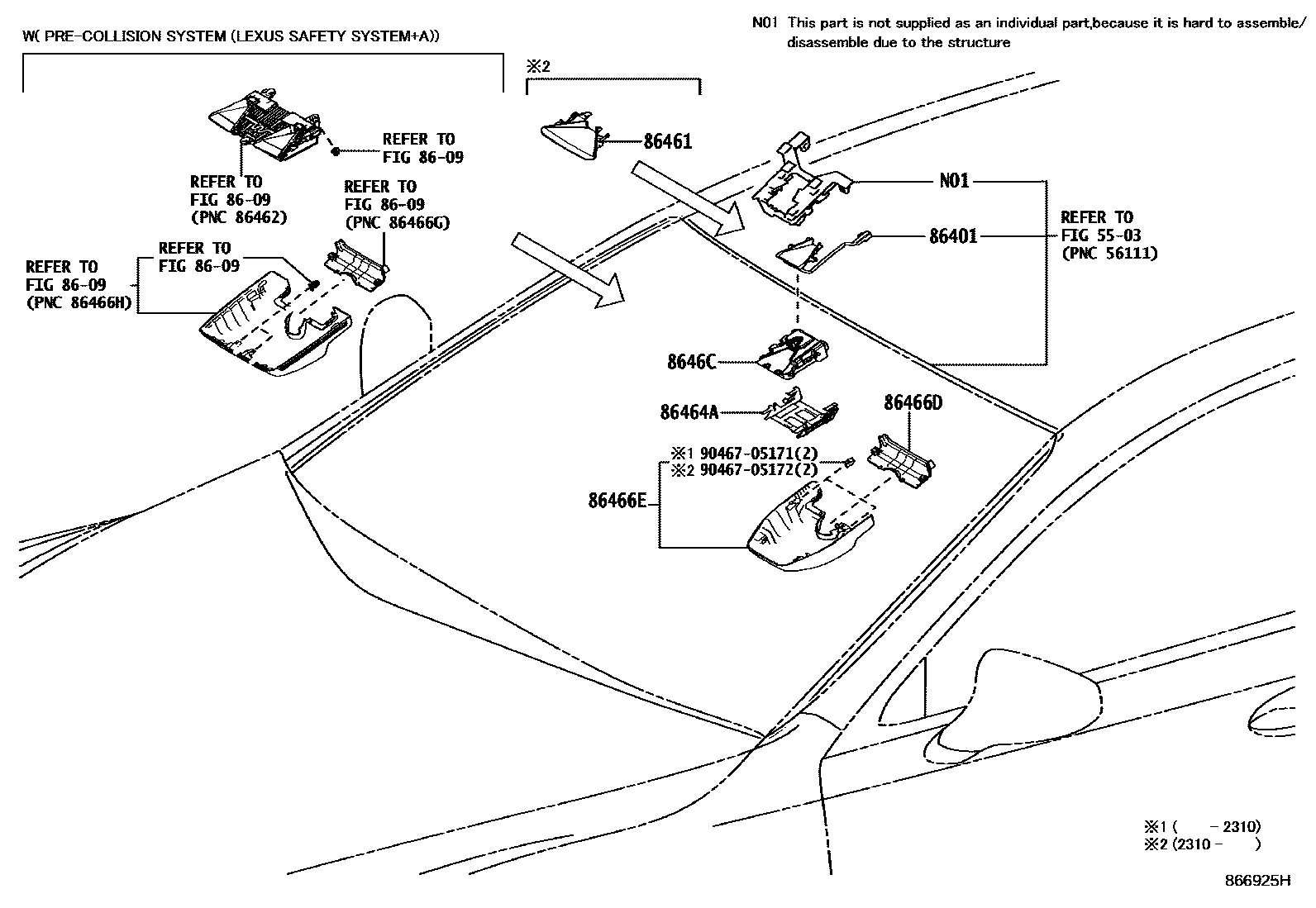

10 parts on this diagram · 2 diagrams in section

PRE-COLLISION SYSTEM for Toyota LEXUS LS500/500H

This section contains 16 genuine Toyota parts for the PRE-COLLISION SYSTEM system of the Toyota LEXUS LS500/500H. Key components include: COWL PANEL & WINDSHIELD GLASS, LANE-KEEPING ASSIST, HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER, HOOD, FORWARD RECOGNITION, CAMERA, OBJECT RECOGNITION.
