Toyota LEXUS LS500/500H — FRONT DOOR WINDOW REGULATOR & HINGE

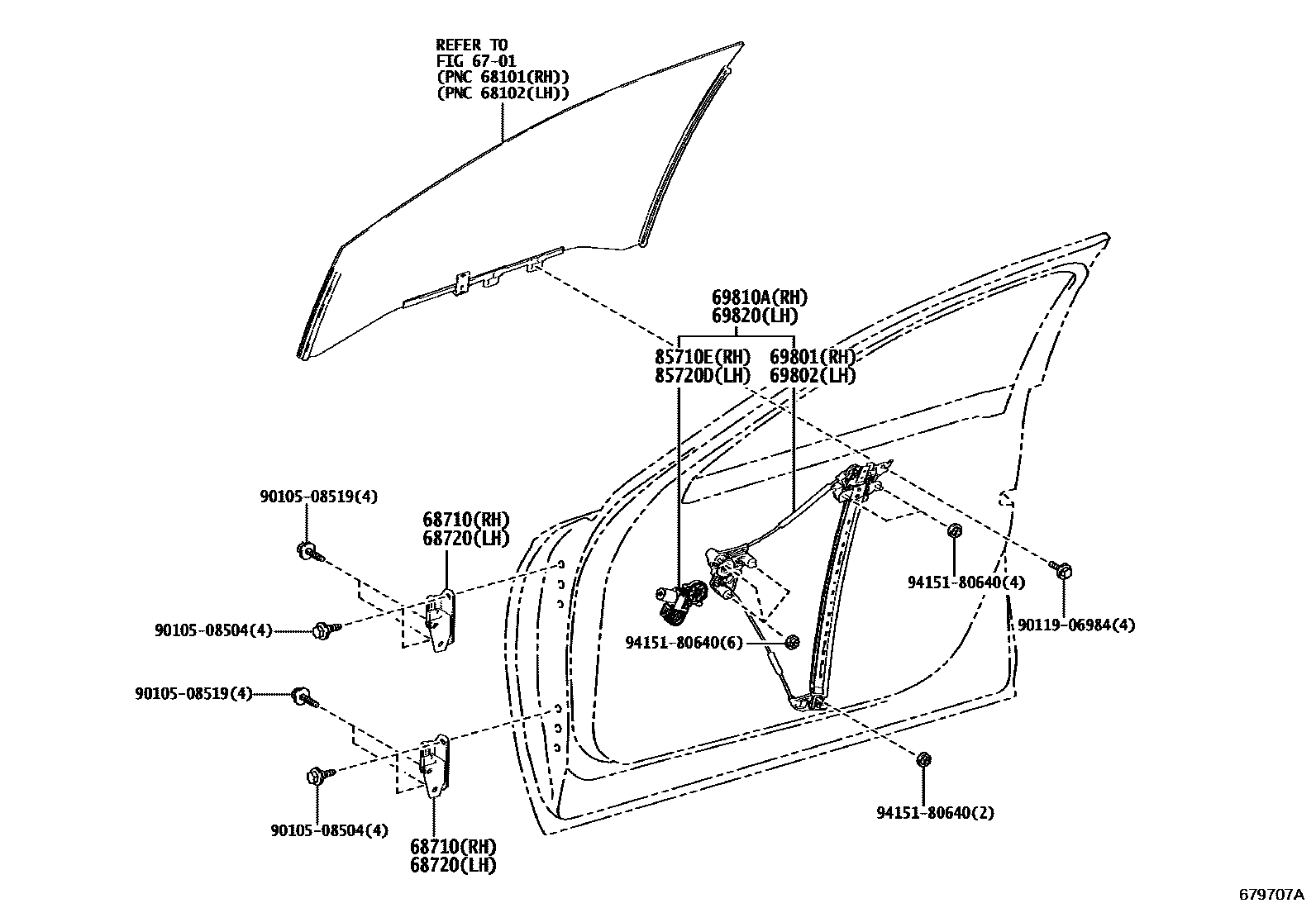

Parts diagram

6701FRONT DOOR PANEL & GLASS

→ Go to FIG 67-01

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-50061×2i201710-201902

main68710-50062×2i202010-202310

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-50061×2i201710-201902

main68720-50062×2i201903-202010

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-50040i202310

main69801-50050i202010-202104

main69801-50051i202105-202310

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-50040i202310

main69802-50050i202010-202104

main69802-50051i202105-202310

69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH

main69810-50090i201710-202010

main69810-50091i202105-202310

main69810-50100i202310

69820REGULATOR ASSY, FRONT DOOR WINDOW, LH

main69820-50090i201710-202010

main69820-50091i202105-202310

main69820-50100i202310

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-50130i201710-202010

main85710-50150i202310

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-50130i201710-202010

main85720-50160i202310

9010508504

main90105-08504

9010508519

main90105-08519

9011906984

main90119-06984

9415180640

main94151-80640

13 parts on this diagram · 1 diagram in section

FRONT DOOR WINDOW REGULATOR & HINGE for Toyota LEXUS LS500/500H

This section contains 13 genuine Toyota parts for the FRONT DOOR WINDOW REGULATOR & HINGE system of the Toyota LEXUS LS500/500H. Key components include: FRONT DOOR PANEL & GLASS, HINGE ASSY, FRONT DOOR, UPPER RH, HINGE ASSY, FRONT DOOR, UPPER LH, REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH, REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH.
