Toyota LEXUS LS500/500H — PRE-COLLISION SYSTEM

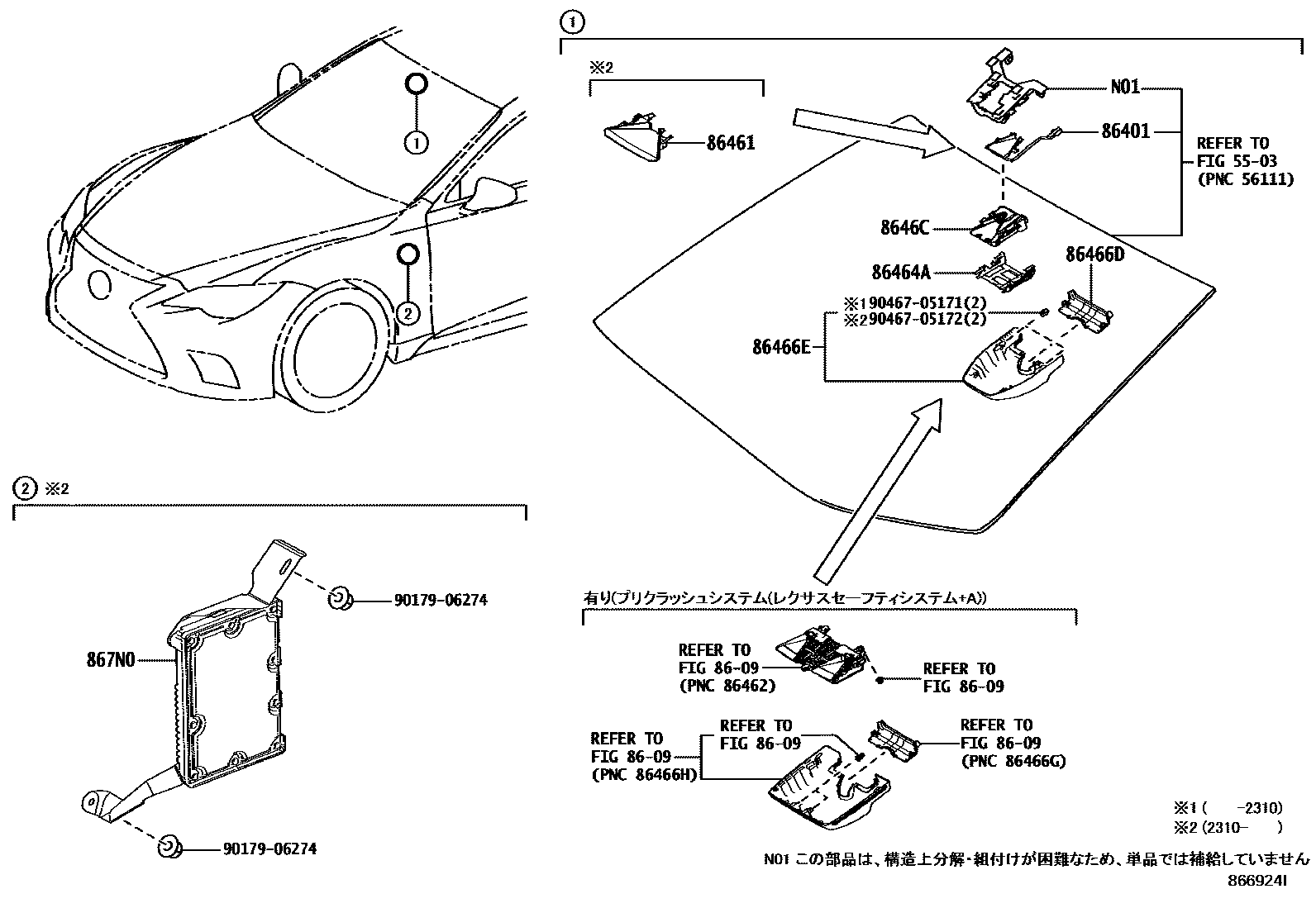

Parts diagram

5503COWL PANEL & WINDSHIELD GLASS

→ Go to FIG 55-03

8609LANE-KEEPING ASSIST

→ Go to FIG 86-09

86401HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER

main86401-50010i201710-201809

main86401-50030i201809-201906

main00000-00000supersedes 86401-50031i201710-202008

86461HOOD, FORWARD RECOGNITION

main86461-30010i202310

86464ALATCH, FORWARD RECOGNITION

main86464-26010i201809-202008

main86464-48011i201710-201809

main00000-00000i201710-202008

86466DCOVER, FORWARD RECOGNITION, NO.1

main86466-50020i201710-201910

main86467-50050i202310

main00000-00000supersedes 86466-50021i201710-202008

main86466-50060i202310-202510

86466ECOVER, FORWARD RECOGNITION, NO.2

main86466-50050i202310

main00000-00000supersedes 86466-50010i201710-202008

main86466-50070i202310-202510

8646CCAMERA, FORWARD RECOGNITION

main8646C-50010i201710-201809

main8646C-50020i201809-201909

main8646C-50030i201909-202008

main8646C-50100i202310-202501

main8646C-50140i202501-202510

main00000-00000i201710-202008

867N0COMPUTER ASSY, DRIVE RECORDER

main867N0-50020i202310

9017906274

main90179-06274

9046705171

main90467-05171

9046705172

main90467-05172

12 parts on this diagram · 2 diagrams in section

PRE-COLLISION SYSTEM for Toyota LEXUS LS500/500H

This section contains 18 genuine Toyota parts for the PRE-COLLISION SYSTEM system of the Toyota LEXUS LS500/500H. Key components include: COWL PANEL & WINDSHIELD GLASS, LANE-KEEPING ASSIST, HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER, HOOD, FORWARD RECOGNITION, CAMERA, OBJECT RECOGNITION.
