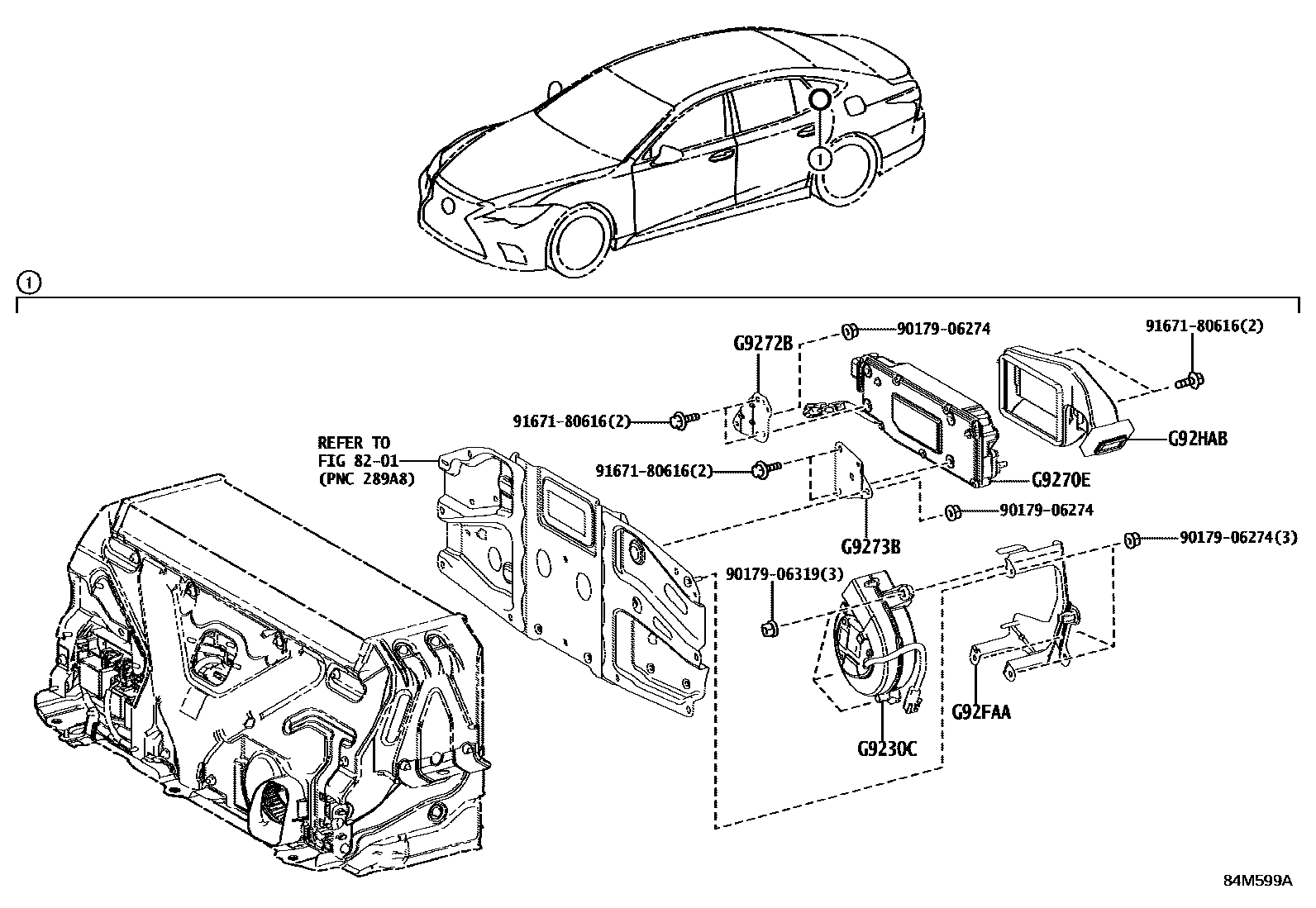

Toyota LEXUS LS500/500H — DC/DC CONVERTER & CHARGER(BEV OR FCEV)

8201BATTERY & BATTERY CABLE

→ Go to FIG 82-01

G9230CBLOWER ASSY, DC/DC CONVERTER COOLING

mainG923048060i202104-202510

G9270EDC/DC CONVERTER ASSY

mainG927062020i202104-202510

G9272BBRACKET, CONVERTER, NO.1

mainG927262010i202104-202510

G9273BBRACKET, CONVERTER, NO.2

mainG927362010i202104-202510

G92FAABRACKET, CONVERTER COOLING BLOWER

mainG92FA62010i202104-202510

G92HABDUCT, DC/DC CONVERTER COOLING EXHAUST

mainG92HA62010i202104-202510

9017906274

main90179-06274

9017906319

main90179-06319

9167180616

main91671-80616

10 parts on this diagram · 1 diagram in section

DC/DC CONVERTER & CHARGER(BEV OR FCEV) for Toyota LEXUS LS500/500H

This section contains 10 genuine Toyota parts for the DC/DC CONVERTER & CHARGER(BEV OR FCEV) system of the Toyota LEXUS LS500/500H. Key components include: BATTERY & BATTERY CABLE, BLOWER ASSY, DC/DC CONVERTER COOLING, DC/DC CONVERTER ASSY, BRACKET, CONVERTER, NO.1, BRACKET, CONVERTER, NO.2.
