Toyota LEXUS LS460/460L — ELECTRONIC FUEL INJECTION SYSTEM

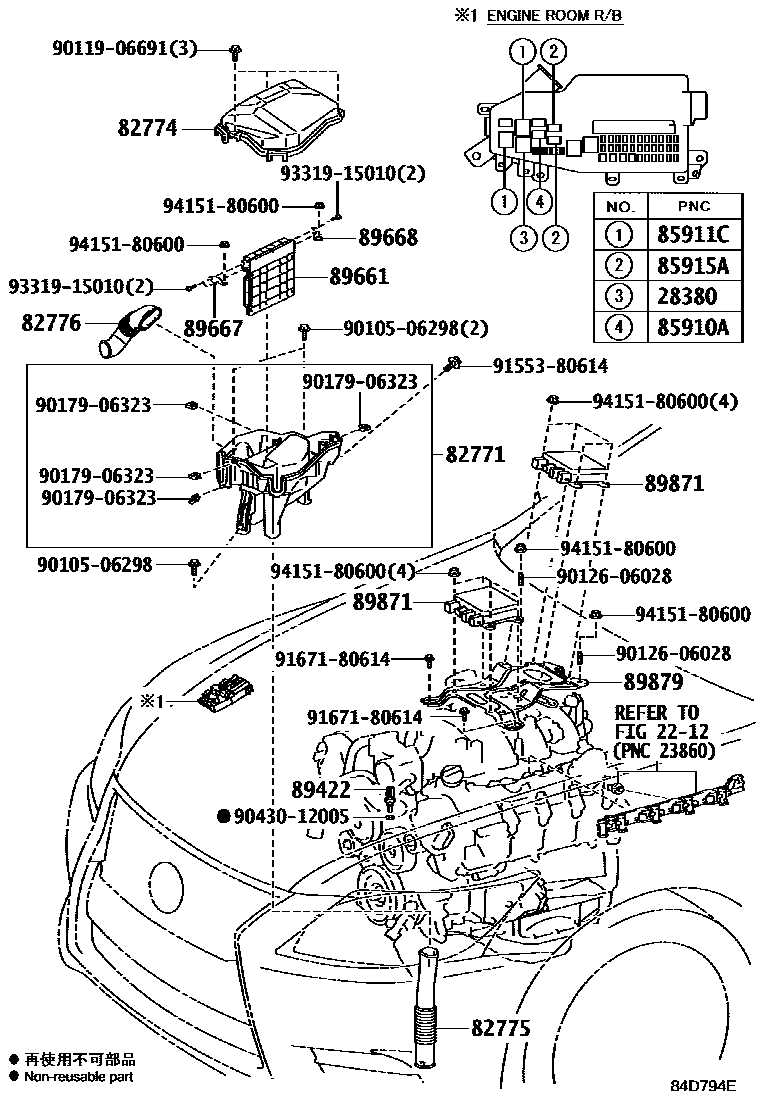

Parts diagram

2212

28380RELAY ASSY, FUEL PUMP

main90987-03003i201209-201708

82771BOX, ENGINE ROOM ECU

main82771-50030i201209

82774COVER, ENGINE ROOM ECU

main82774-50030i201209

82775DUCT, ENGINE ROOM ECU INLET

main82775-50020i201209

82776DUCT, ENGINE ROOM ECU OUTLET

main82776-50020i201209

main82776-50030i201209

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02027i201209-201708

85911CRELAY, EFI 2

main90987-02025×2i201209-201708

85915ARELAY, MAIN

main90987-02027×2i201209-201708

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030i201209

89661COMPUTER, ENGINE CONTROL

main89661-50J70i201509

main89661-50J80i201509

main89661-50M00i201209-201309

main89661-50P11i201403-201509

main89661-50P20i201309-201509

main89661-50L70supersedes 89661-50L00i201209-201309

KOREA SPEC

main89661-50M50i201209-201309

KOREA SPEC

main89661-50P30supersedes 89661-50P10i201309

KOREA SPEC

main89661-50P40i201309

KOREA SPEC

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-50040i201209

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-50040i201209

89871DRIVER, INJECTOR

main89871-50010×2i201209

89879BRACKET, INJECTOR DRIVER

main89879-50010i201209

9010506298

main90105-06298

9011906691

main90119-06691

9012606028

main90126-06028

9017906323

main90179-06323

9043012005

main90430-12005

9155380614

main91553-80614

9167180614

main91671-80614

9331915010

main93319-15010

9415180600

main94151-80600

24 parts on this diagram · 1 diagram in section

ELECTRONIC FUEL INJECTION SYSTEM for Toyota LEXUS LS460/460L

This section contains 24 genuine Toyota parts for the ELECTRONIC FUEL INJECTION SYSTEM system of the Toyota LEXUS LS460/460L. Key components include: RELAY ASSY, FUEL PUMP, BOX, ENGINE ROOM ECU, COVER, ENGINE ROOM ECU, DUCT, ENGINE ROOM ECU INLET.
