Toyota LEXUS LS460/460L — LANE-KEEPING ASSIST

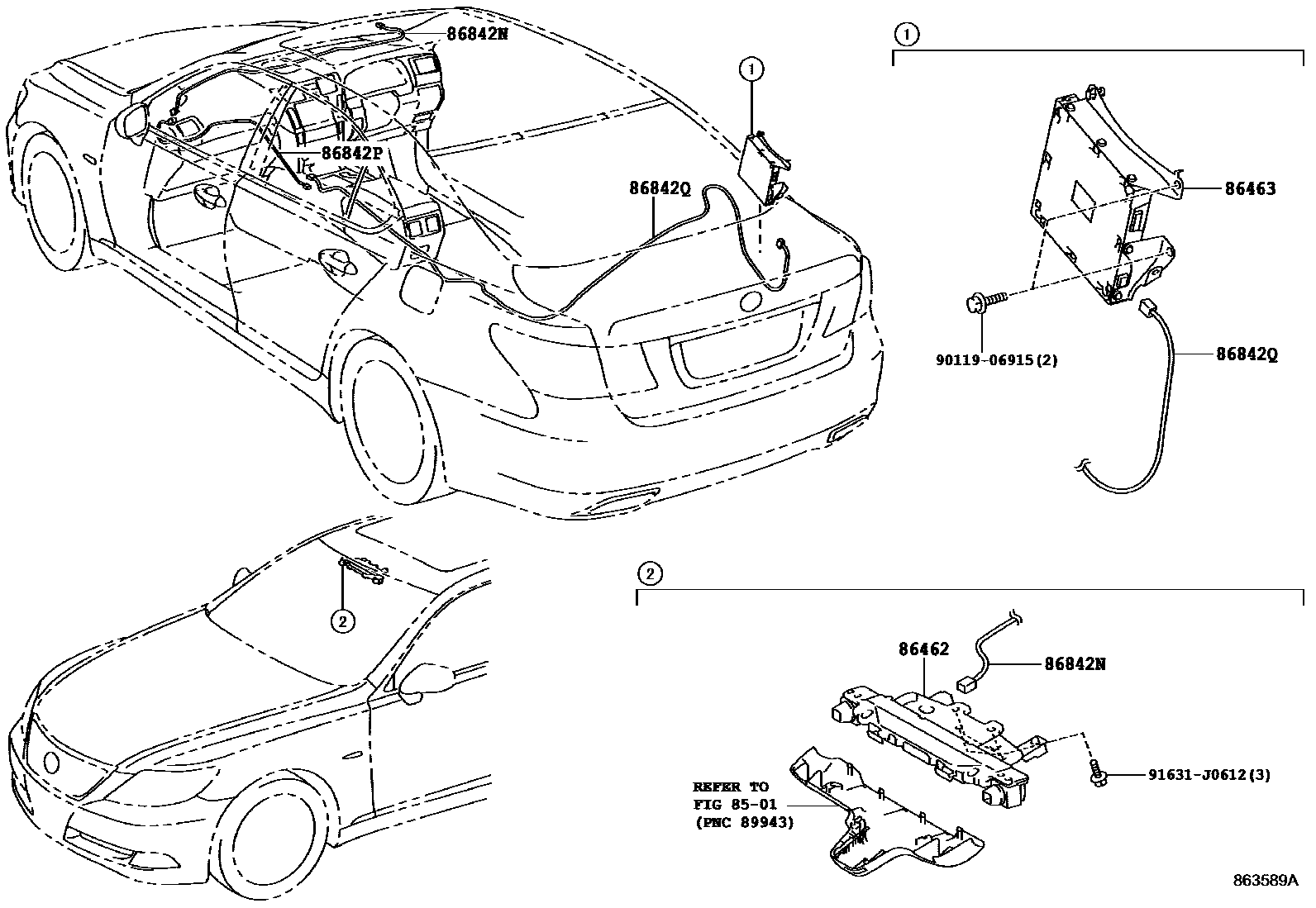

Parts diagram

8501WINDSHIELD WIPER

→ Go to FIG 85-01

86462CAMERA, OBJECT RECOGNITION

main86462-50010i200608-200809

main86462-50020i200909

86463COMPUTER, OBJECT RECOGNITION

main86463-50010i200608-200702

main86463-50020i200809-200909

main86463-50030i200909-201209

86842NWIRE, NAVIGATION, NO.1

main86842-50080i200909-201209

main86842-50540i200909-201209

86842PWIRE, NAVIGATION, NO.2

main86842-50110i200809-200909

86842QWIRE, NAVIGATION, NO.3

main86842-50400i200809-200909

main86842-50130i200909-201209

9011906915

main90119-06915

91631J0612

main91631-J0612

8 parts on this diagram · 2 diagrams in section

LANE-KEEPING ASSIST for Toyota LEXUS LS460/460L

This section contains 9 genuine Toyota parts for the LANE-KEEPING ASSIST system of the Toyota LEXUS LS460/460L. Key components include: WINDSHIELD WIPER, CAMERA, OBJECT RECOGNITION, COMPUTER, OBJECT RECOGNITION, CAMERA, OBJECT RECOGNITION W/NIGHT VIEW, WIRE, NAVIGATION, NO.1.
