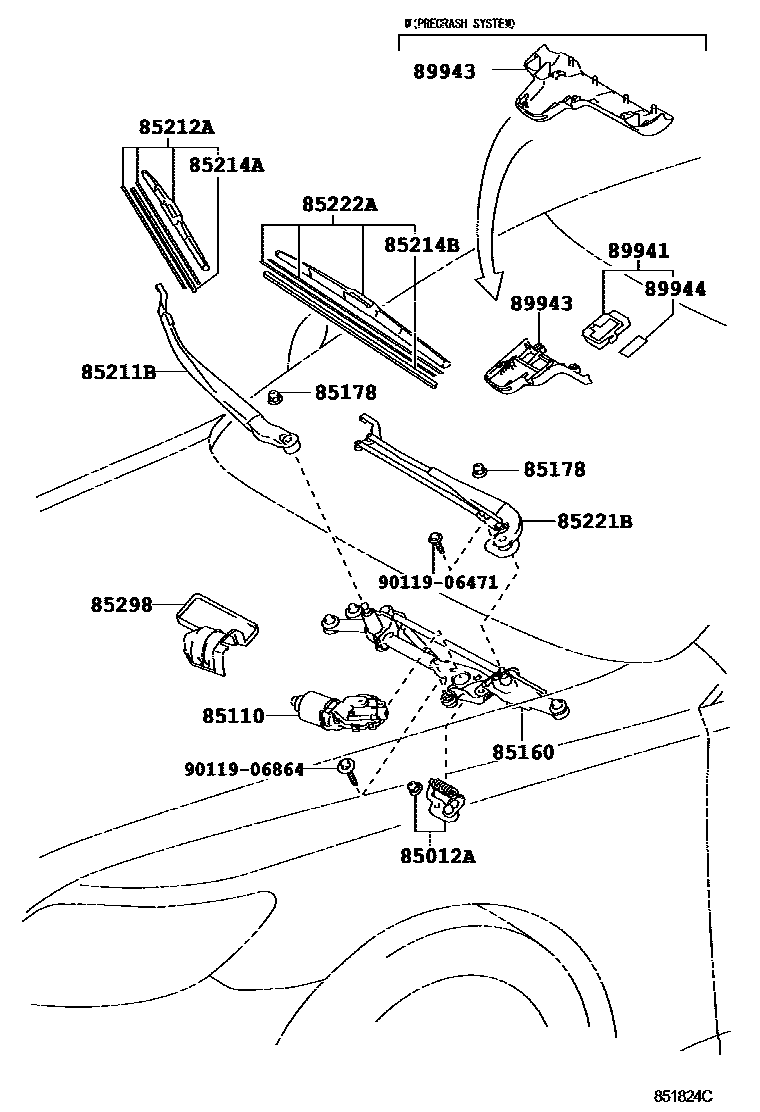

Toyota LEXUS LS460/460L — WINDSHIELD WIPER

0001 1 0002 1

85012ACRANK SUB-ASSY, FRONT WIPER

main85012-50010iUSF4#..RHD200608-200909

main85012-58030iUSF4#..LHD200608-200909

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-48210iUSF40,41,45..RHD200608-201209

main85110-58090iUSF4#..LHD200608-201209

85160LINK ASSY, WINDSHIELD WIPER

main85150-50150iUSF4#..LHD200608-200909

sub85150-50200

main85150-50180iUSF40,41,45..RHD200608-200909

sub85150-50210

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-10005iUSF4#200608-200909

85211BARM, FRONT WIPER, RH

main85211-50140iUSF4#..LHD200608-200909

main85211-50170iUSF40,41,45..RHD200608-200909

85212ABLADE, FR WIPER, RH

main85212-42120iUSF4#..LHD200608-201209

main85212-50100iUSF40,41,45..RHD200608-201209

85214ARUBBER, WIPER, RH

main85214-30380iUSF4#..RHD200608-200909

main85214-42050iUSF4#..LHD200608-200909

85214BRUBBER, WIPER, LH

main85214-30380iUSF4#..LHD200608-200909

main85214-42050iUSF4#..RHD200608-200909

85221BARM, FRONT WIPER, LH

main85221-50120iUSF40,41..GCC200612-200909

main85221-50140iUSF4#..LHD..EUR200608-200909

main85221-50150iUSF4#..RHD200608-200909

85222ABLADE, FR WIPER, LH

main85222-42100iUSF4#..RHD200608-201209

main85222-50080iUSF4#..LHD200608-201209

85298COVER, WIPER MOTOR

main85111-50060iUSF4#..LHD200608-200909

main85111-50070iUSF40,41,45..RHD200608-200909

89941SENSOR, RAIN

main89941-50040iUSF4#200608-200812

sub89941-50080

main89941-50080iUSF4#200901-201109

sub89941-50081

main89941-50081iUSF4#201110

89943COVER, RAIN SENSOR

main89943-50020iUSF40,41,45..RHD200608-201209

main89943-50030iUSF4#..LHD200608-201209

89944TAPE, RAIN SENSOR

main89944-50020iUSF4#..EUR200608-201109

sub89944-50021

main89944-50021iUSF4#201110

9011906471

main90119-06471

9011906864

main90119-06864

16 parts on this diagram · 2 diagrams in section
