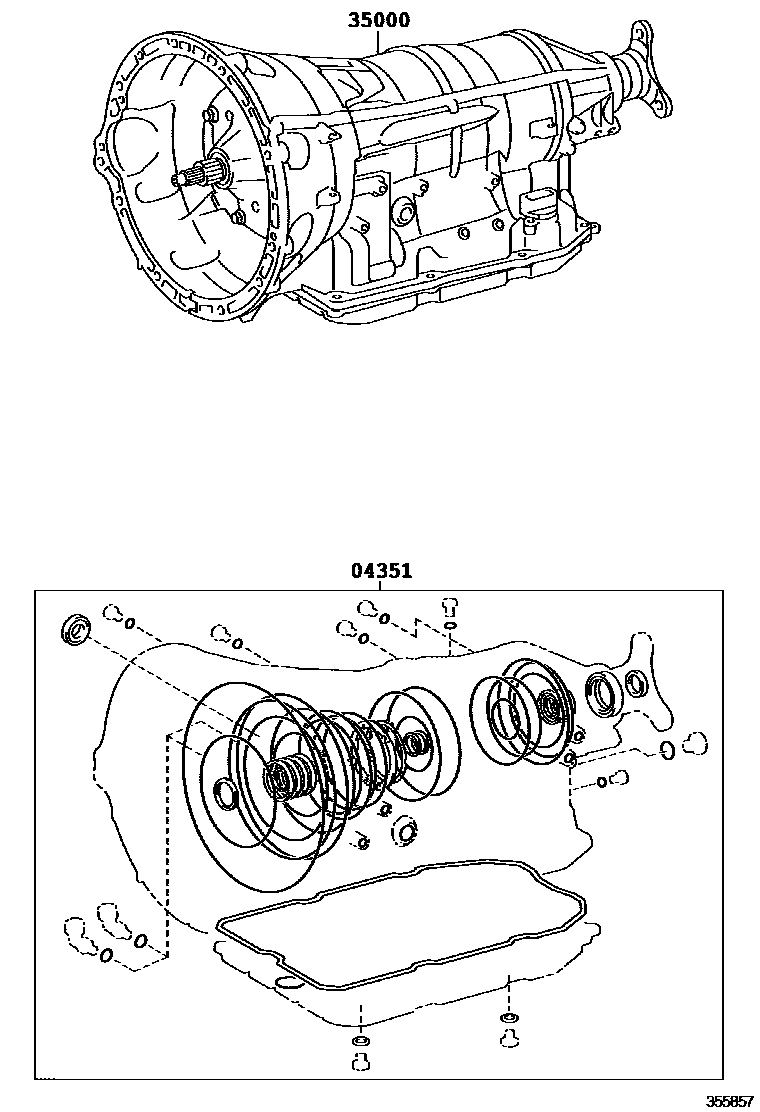

Toyota LEXUS LS460/460L — TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

0001 1AA80E 0002 1AA80F

04351GASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL

main04351-50080iUSF40,41200608-201209

sub04351-53150

main04351-50100iUSF45,46200809-201209

sub04351-50101

35000TRANSMISSION ASSY, AUTOMATIC

main35000-50160iUSF4#200608-200809

AA80E

sub35000-50170

main35000-50170iUSF40,41200809-200909

AA80E

2 parts on this diagram · 2 diagrams in section
