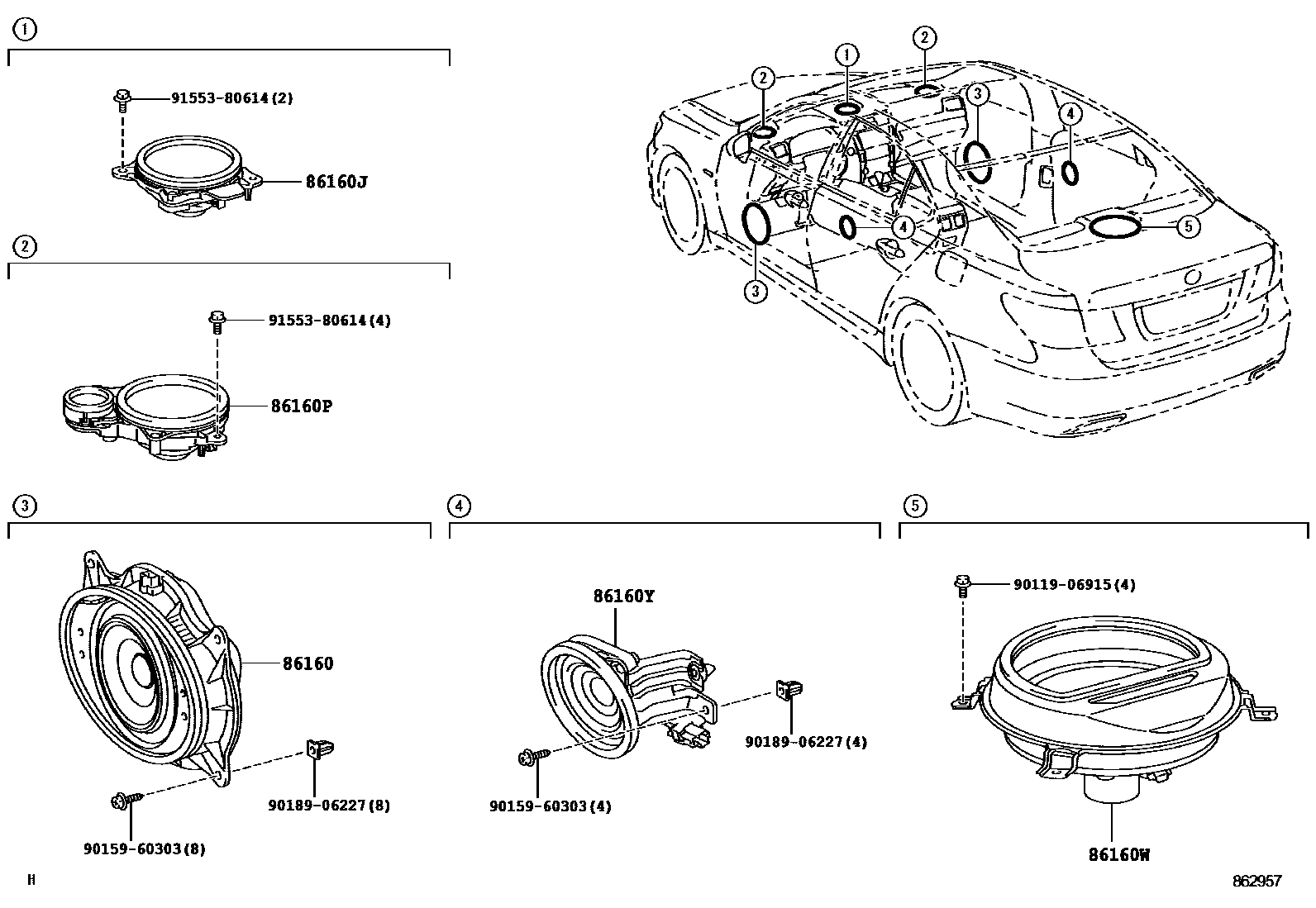

Toyota LEXUS LS460/460L — SPEAKER

0001 1 0002 1MARK LEVINSON 0003 1 0004 1MARK LEVINSON

86160SPEAKER ASSY, FRONT NO.1

main86160-0WG10iUSF41..LHD..EUR;USF40,45,46..EUR200809-200909

AUDIO-AM-SW-FM,DVD CHANGER,MARK LEVINSON

main86160-0WG10iUSF41..HTWC..EUR200608-200809

AUDIO-AM-FM,RBDS,EMV,MARK LEVINSON

main86160-0WG10iUSF41..HTWC..EUR200608-200809

AUDIO-LW-MW-FM,RDS,EMV,MARK LEVINSON

main86160-0WG10iUSF41..HTWC..EUR200608-200809

AUDIO-AM-FM,EMV,MARK LEVINSON

main86160-0WG10iUSF41..RHD200809-200909

AUDIO-AM-FM,DVD CHANGER,RBDS,MARK LEVINSON

main86160-0WG10iUSF41..RHD200809-200909

AUDIO-LW-MW-FM,DVD CHANGER,RDS,MARK LEVINSON

main86160-0WG10iUSF41..RHD200809-200909

AUDIO-AM-FM,DVD CHANGER,MARK LEVINSON

main86160-0WG10iUSF41..RHD;USF41..HTWC..EUR200909

AUDIO-DVD CHANGER,MARK LEVINSON

main86160-50220iUSF40;USF41..LHD200608-200909

86160JSPEAKER ASSY, FRONT NO.3

main86160-0WG90iUSF40..EUR;USF41..LHD..EUR200608-200809

AUDIO-AM-FM,RBDS,EMV,MARK LEVINSON

main86160-0WG90iUSF41..RHD200608-200809

AUDIO-LW-MW-FM,RDS,EMV,MARK LEVINSON

main86160-0WG90iUSF41..RHD200608-200809

AUDIO-AM-FM,EMV,MARK LEVINSON

main86160-0WG90iUSF41..RHD200809-200909

AUDIO-AM-FM,DVD CHANGER,RBDS,MARK LEVINSON

main86160-0WG90iUSF41..RHD200809-200909

AUDIO-LW-MW-FM,DVD CHANGER,RDS,MARK LEVINSON

main86160-0WG90iUSF41..RHD200809-200909

AUDIO-AM-FM,DVD CHANGER,MARK LEVINSON

main86160-0WG90iUSF41..RHD200809-200909

AUDIO-AM-SW-FM,DVD CHANGER,MARK LEVINSON

main86160-0WG90iUSF41..RHD;USF41..HTWC..EUR200909

AUDIO-DVD CHANGER,MARK LEVINSON

main86160-50270iUSF40;USF41..LHD200608-200909

86160PSPEAKER ASSY, FRONT NO.2

main86160-0WG80iUSF40..EUR;USF41..LHD..EUR200608-200809

AUDIO-AM-FM,EMV,MARK LEVINSON,RH

main86160-0WG80iUSF41..RHD200608-200909

RH

main86160-0WG80iUSF41..RHD200608-200809

AUDIO-AM-FM,RBDS,EMV,MARK LEVINSON,RH

main86160-0WG80iUSF41..RHD200608-200809

AUDIO-LW-MW-FM,RDS,EMV,MARK LEVINSON,RH

main86160-0WG80iUSF40,45..LHD..D4..EUR200909

AUDIO-DVD CHANGER,MARK LEVINSON,RH

main86160-0WG80iUSF41..RHD200809-200909

AUDIO-AM-FM,DVD CHANGER,RBDS,MARK LEVINSON,RH

main86160-0WG80iUSF41..RHD200809-200909

AUDIO-LW-MW-FM,DVD CHANGER,RDS,MARK LEVINSON,RH

main86160-0WG80iUSF41..RHD200809-200909

AUDIO-AM-FM,DVD CHANGER,MARK LEVINSON,RH

main86160-0WG80iUSF41..RHD200809-200909

AUDIO-AM-SW-FM,DVD CHANGER,MARK LEVINSON,RH

main86160-0WJ00iUSF40,45..LHD..D4..EUR200909

AUDIO-DVD CHANGER,MARK LEVINSON,LH

main86160-0WJ00iUSF41..RHD200608-200909

LH

main86160-0WJ00iUSF41..RHD200608-200809

AUDIO-AM-FM,RBDS,EMV,MARK LEVINSON,LH

main86160-0WJ00iUSF41..RHD200608-200809

AUDIO-LW-MW-FM,RDS,EMV,MARK LEVINSON,LH

main86160-0WJ00iUSF41..RHD200608-200809

AUDIO-AM-FM,EMV,MARK LEVINSON,LH

main86160-0WJ00iUSF41..RHD200809-200909

AUDIO-AM-FM,DVD CHANGER,RBDS,MARK LEVINSON,LH

main86160-0WJ00iUSF41..RHD200809-200909

AUDIO-LW-MW-FM,DVD CHANGER,RDS,MARK LEVINSON,LH

main86160-0WJ00iUSF41..RHD200809-200909

AUDIO-AM-FM,DVD CHANGER,MARK LEVINSON,LH

main86160-0WJ00iUSF41..RHD200809-200909

AUDIO-AM-SW-FM,DVD CHANGER,MARK LEVINSON,LH

main86160-50260iUSF41..LHD;USF40,45,46200608-200909

RH

main86160-50280iUSF41..LHD;USF40,45,46200608-200909

LH

86160WSPEAKER ASSY, STEREO COMPONENT, FLOOR

main86150-0W230iUSF40,45..LHD..EUR201205

AUDIO-DVD CHANGER,MARK LEVINSON

main86160-0WG70iUSF41..LHD..EUR;USF40,45,46..EUR200809-200909

AUDIO-LW-MW-FM,DVD CHANGER,RDS,MARK LEVINSON

sub86150-0W230

main86160-0WG70iUSF40..EUR;USF45..RHD;USF41..LHD..EUR200809-200909

AUDIO-AM-FM,DVD CHANGER,RBDS,MARK LEVINSON

sub86150-0W230

main86160-0WG70iUSF40..EUR;USF45..RHD;USF41..LHD..EUR200809-200909

AUDIO-AM-FM,DVD CHANGER,MARK LEVINSON

sub86150-0W230

main86160-0WG70iUSF40..EUR;USF45..RHD;USF41..LHD..EUR200809-200909

AUDIO-AM-SW-FM,DVD CHANGER,MARK LEVINSON

sub86150-0W230

main86160-0WG70iUSF41..RHD;USF41..HTWC..EUR200909-201204

AUDIO-DVD CHANGER,MARK LEVINSON

sub86150-0W230

main86160-0WG70iUSF41..RHD200608-200809

AUDIO-AM-FM,RBDS,EMV,MARK LEVINSON

sub86150-0W230

main86160-0WG70iUSF41..RHD200608-200809

AUDIO-LW-MW-FM,RDS,EMV,MARK LEVINSON

sub86150-0W230

main86160-0WG70iUSF41..RHD200608-200809

AUDIO-AM-FM,EMV,MARK LEVINSON

sub86150-0W230

main86160-50250iUSF41..LHD;USF40,45,46200608-200909

86160YSPEAKER ASSY, REAR NO.2

main86160-0WG30iUSF41..RHD200608-200809

AUDIO-AM-FM,RBDS,EMV,MARK LEVINSON,RH

main86160-0WG30iUSF41..RHD200608-200809

AUDIO-LW-MW-FM,RDS,EMV,MARK LEVINSON,RH

main86160-0WG30iUSF41..RHD200608-200809

AUDIO-AM-FM,EMV,MARK LEVINSON,RH

main86160-0WG30iUSF41..HTWC..EUR200608-200909

RH

main86160-0WG30iUSF40..EUR;USF45..RHD;USF41..LHD..EUR200809-200909

AUDIO-AM-FM,DVD CHANGER,RBDS,MARK LEVINSON,RH

main86160-0WG30iUSF40..EUR;USF45..RHD;USF41..LHD..EUR200809-200909

AUDIO-LW-MW-FM,DVD CHANGER,RDS,MARK LEVINSON,RH

main86160-0WG30iUSF40..EUR;USF45..RHD;USF41..LHD..EUR200809-200909

AUDIO-AM-FM,DVD CHANGER,MARK LEVINSON,RH

main86160-0WG30iUSF40..EUR;USF45..RHD;USF41..LHD..EUR200809-200909

AUDIO-AM-SW-FM,DVD CHANGER,MARK LEVINSON,RH

main86160-0WG30iUSF40,45..LHD..D4..EUR200909

AUDIO-DVD CHANGER,MARK LEVINSON,RH

main86160-0WG50iUSF41..RHD200809-200909

AUDIO-AM-FM,DVD CHANGER,MARK LEVINSON,LH

main86160-0WG50iUSF41..RHD200608-200909

LH

main86160-0WG50iUSF41..RHD200608-200809

AUDIO-AM-FM,RBDS,EMV,MARK LEVINSON,LH

main86160-0WG50iUSF41..RHD200608-200809

AUDIO-LW-MW-FM,RDS,EMV,MARK LEVINSON,LH

main86160-0WG50iUSF41..RHD200608-200809

AUDIO-AM-FM,EMV,MARK LEVINSON,LH

main86160-0WG50iUSF41..RHD200809-200909

AUDIO-AM-FM,DVD CHANGER,RBDS,MARK LEVINSON,LH

main86160-0WG50iUSF41..RHD200809-200909

AUDIO-LW-MW-FM,DVD CHANGER,RDS,MARK LEVINSON,LH

main86160-0WG50iUSF41..RHD200809-200909

AUDIO-AM-SW-FM,DVD CHANGER,MARK LEVINSON,LH

main86160-0WG50iUSF41..RHD;USF41..HTWC..EUR200909

AUDIO-DVD CHANGER,MARK LEVINSON,LH

main86160-50230iUSF41..GCC;USF40,45,46;USF41..LHD..D4..EUR200608-200909

RH

main86160-50240iUSF41..GCC;USF40,45,46;USF41..LHD..D4..EUR200608-200909

LH

9011906915

main90119-06915

9015960303

main90159-60303

9018906227

main90189-06227

9155380614

main91553-80614

9 parts on this diagram · 4 diagrams in section
