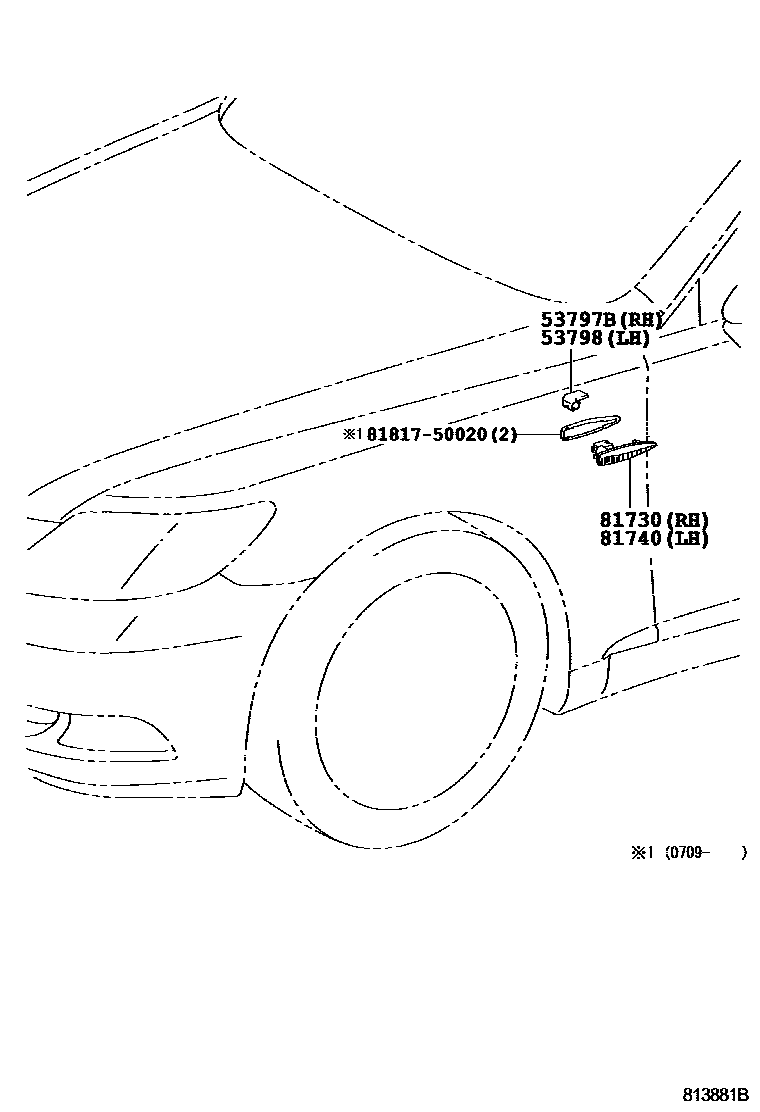

Toyota LEXUS LS460/460L — SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

0001 1 0002 1

53797BCOVER, SIDE TURN SIGNAL LAMP, RH

main53797-50010iUSF4#200608-200909

53798COVER, SIDE TURN SIGNAL LAMP, LH

main53798-50010iUSF4#200608-200909

81730LAMP ASSY, SIDE TURN SIGNAL, RH

main81730-50100iUSF4#200608-200909

main81730-53020iUSF4#200909-201209

81740LAMP ASSY, SIDE TURN SIGNAL, LH

main81730-50100iUSF4#200608-200909

main81740-53020iUSF4#200909-201209

8181750020PACKING, CENTER STOP LAMP

main81817-50020

5 parts on this diagram · 2 diagrams in section
