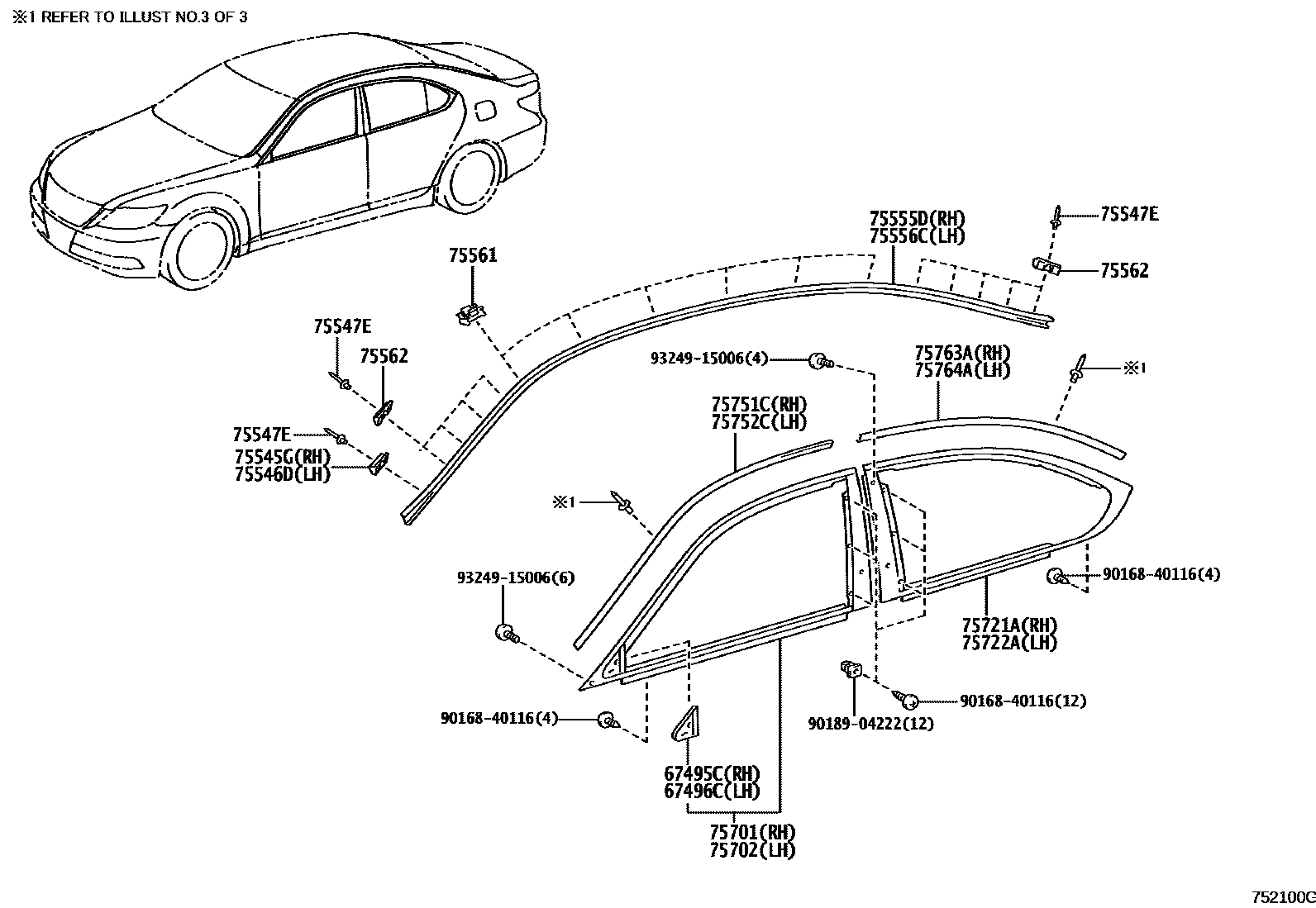

Toyota LEXUS LS460/460L — SIDE MOULDING
67495CCOVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH
67496CCOVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH
75545GCLIP, WINDSHIELD OUTSIDE MOULDING, NO.1
75546DCLIP, WINDSHIELD OUTSIDE MOULDING, NO.2
75547ECLIP, WINDSHIELD OUTSIDE MOULDING, NO.3
75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH
BLUISH PEARL CS.,074
WHITE PEARL CS.,077
PREMIUM SILVER,1F2
DK.GRAY MC.,1G0
FROSTY PEARL MC.,1G5
MERCURY GRAY MC.,1H9
BLACK,212
STARLIGHT BLACK GF.,217
DK.RED MC.CS.,3R7
RED MC.CS.,3R1
BEIGE ME.,4T1
SABLE M.M.,4T5
SLEEK ECRU ME.,4U7
JADE GREEN ME.,6V0
DEEP PERIDOT MC.,6V6
DK.BLUE MC. CC.,8U0
LAPIS LAZULI MC.,8V3
SHADOW SAPPHIRE ME.,8V4
BLUISH PEARL CS.,074
WHITE PEARL CS.,077
PREMIUM SILVER,1F2
DK.GRAY MC.,1G0
FROSTY PEARL MC.,1G5
MERCURY GRAY MC.,1H9
BLACK,212
STARLIGHT BLACK GF.,217
DK.RED MC.CS.,3R7
RED MC.CS.,3R1
BEIGE ME.,4T1
SABLE M.M.,4T5
SLEEK ECRU ME.,4U7
JADE GREEN ME.,6V0
DEEP PERIDOT MC.,6V6
DK.BLUE MC. CC.,8U0
LAPIS LAZULI MC.,8V3
SHADOW SAPPHIRE ME.,8V4
75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH
BLUISH PEARL CS.,074
WHITE PEARL CS.,077
PREMIUM SILVER,1F2
DK.GRAY MC.,1G0
FROSTY PEARL MC.,1G5
MERCURY GRAY MC.,1H9
BLACK,212
STARLIGHT BLACK GF.,217
DK.RED MC.CS.,3R7
RED MC.CS.,3R1
BEIGE ME.,4T1
SABLE M.M.,4T5
SLEEK ECRU ME.,4U7
JADE GREEN ME.,6V0
DEEP PERIDOT MC.,6V6
DK.BLUE MC. CC.,8U0
LAPIS LAZULI MC.,8V3
SHADOW SAPPHIRE ME.,8V4
BLUISH PEARL CS.,074
WHITE PEARL CS.,077
PREMIUM SILVER,1F2
DK.GRAY MC.,1G0
FROSTY PEARL MC.,1G5
MERCURY GRAY MC.,1H9
BLACK,212
STARLIGHT BLACK GF.,217
DK.RED MC.CS.,3R7
RED MC.CS.,3R1
BEIGE ME.,4T1
SABLE M.M.,4T5
SLEEK ECRU ME.,4U7
JADE GREEN ME.,6V0
DEEP PERIDOT MC.,6V6
DK.BLUE MC. CC.,8U0
LAPIS LAZULI MC.,8V3
SHADOW SAPPHIRE ME.,8V4
75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
75562CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.2
75701MOULDING SUB-ASSY, FRONT DOOR BELT, RH
sub75701-50041
75702MOULDING SUB-ASSY, FRONT DOOR BELT, LH
sub75702-50041
75721AMOULDING, REAR DOOR BELT, RH
75722AMOULDING, REAR DOOR BELT, LH
75751CMOULDING, FRONT DOOR WINDOW FRAME, FRONT RH
75752CMOULDING, FRONT DOOR WINDOW FRAME, FRONT LH
75763AMOULDING, REAR DOOR WINDOW FRAME, UPPER RH
75764AMOULDING, REAR DOOR WINDOW FRAME, UPPER LH
9016840116
main90168-40116
9018904222
main90189-04222
9324915006
main93249-15006
20 parts on this diagram · 5 diagrams in section
