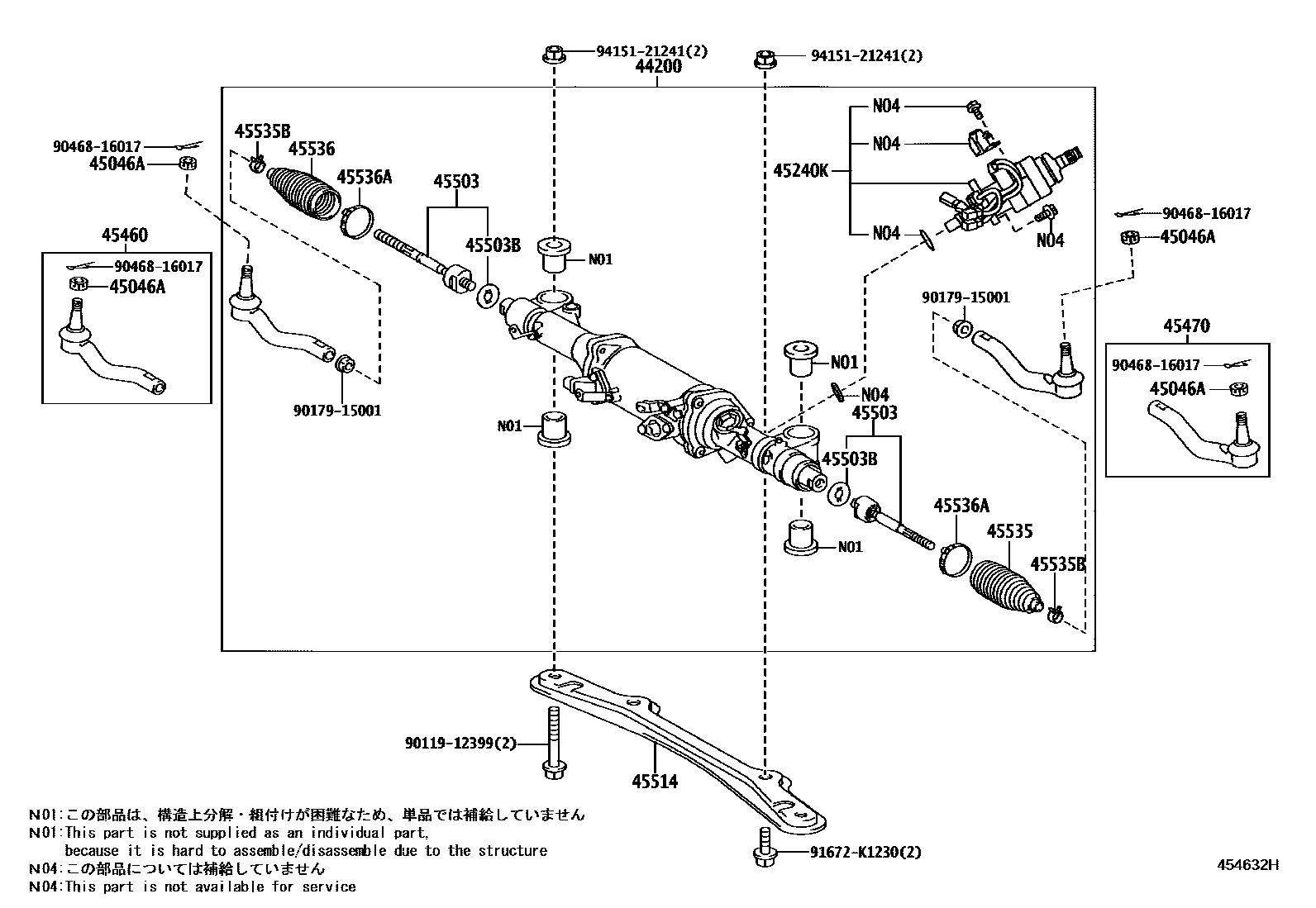

Toyota LEXUS LS460/460L — FRONT STEERING GEAR & LINK

0001 1AIR SUSPENTION 0002 1AIR SUSPENTION 0003 1COIL SPRING 0004 1AIR SUSPENTION 0005 1AIR SUSPENTION 0006 1AIR SUSPENTION 0007 1AIR SUSPENTION 0008 1COIL SPRING 0009 1AIR SUSPENTION 0010 1AIR SUSPENTION

44200LINK ASSY, POWER STEERING

main44200-50210iUSF40..LHD..D4200608-201108

SUSPENSION-SPORT AIR SUSPENTION

sub44200-50211

main44200-50211iUSF41..HTWC..EUR201109-201111

SUSPENSION-SPORT AIR SUSPENTION

sub44200-50390

main44200-50220iUSF41..LHD;USF40..HTWC200608-200909

SUSPENSION-COIL SPRING

sub44200-50221

main44200-50220iUSF40,41..HTWC;USF40,41..D4..GCC200909-201109

sub44200-50221

main44200-50221iUSF40..GCC;USF41..HTWC;USF41..D4..GCC201110-201111

SUSPENSION-COIL SPRING

sub44200-50400

main44200-50230iUSF40..RHD200909-201108

sub44200-50231

main44200-50230iUSF40..RHD200608-200909

SUSPENSION-SPORT AIR SUSPENTION

sub44200-50231

main44200-50231iUSF40,41..RHD201109-201111

sub44200-50410

main44200-50240iUSF40..RHD200608-200909

SUSPENSION-COIL SPRING

sub44200-50241

main44200-50240iUSF41..RHD200909-201009

sub44200-50241

main44200-50350iUSF45..RHD200809-201108

sub44200-50351

main44200-50351iUSF45..RHD201109

main44200-50360iUSF45,46..LHD200809-201108

sub44200-50361

main44200-50361iUSF45,46..LHD201109

main44200-50390iUSF40,41..LHD..D4..EUR201111

SUSPENSION-SPORT AIR SUSPENTION

main44200-50400iUSF40..GCC;USF41..HTWC;USF41..D4..GCC201111

SUSPENSION-COIL SPRING

main44200-50410iUSF40,41..RHD201111

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12012iUSF4#200608-200909

45240KACTUATOR ASSY, STEERING

main45240-50010iUSF41..HTWC..EUR200809-201108

SUSPENSION-SPORT AIR SUSPENTION&245/45R19 8J

sub45240-50011

main45240-50010iUSF41..LHD..EUR;USF40..HTWC..EUR200608-201108

SUSPENSION-SPORT AIR SUSPENTION

sub45240-50011

main45240-50010iUSF40..LHD..D4200608-200809

SUSPENSION-SPORT AIR SUSPENTION&TIRE & DISK WHEEL-245/45R19 8J

sub45240-50011

main45240-50011iUSF40,41..LHD..D4..EUR201109

SUSPENSION-SPORT AIR SUSPENTION&245/45R19 8J

main45240-50011iUSF41..HTWC..EUR201109

SUSPENSION-SPORT AIR SUSPENTION

main45240-50020iUSF41..RHD200608-200909

SUSPENSION-SPORT AIR SUSPENTION

sub45240-50021

main45240-50020iUSF40..RHD200909-201108

sub45240-50021

main45240-50021iUSF40,41..RHD201109

main45240-50070iUSF45..RHD200809-201108

sub45240-50071

main45240-50071iUSF45..RHD201109

main45240-50080iUSF45,46..LHD200809-201108

sub45240-50081

main45240-50081iUSF45,46..LHD201109

45460ROD ASSY, TIE, RH

main45460-59085iUSF40,41200608-200909

main45460-59095iUSF45,46200809-200909

45470ROD ASSY, TIE, LH

main45470-59095iUSF40,41200608-200909

main45470-59105iUSF45,46200809-200909

45503END SUB-ASSY, STEERING RACK

main45503-59145iUSF40,41200608-201209

main45503-59145iUSF45,46201109-201209

W/O MARK

main45503-59155iUSF45,46200909-201209

MARK=YELLOW

sub45503-59145

sub45535-59065

main45503-59155iUSF45,46200809-200909

sub45503-59145

sub45535-59065

45503BWASHER, CLAW(FOR STEERING RACK END)

main90214-16002iUSF4#200608-200909

OD=42

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-50050iUSF4#200608-200909

45535BOOT, STEERING RACK, NO.1

main45535-26060iUSF45,46200809-200909

main45535-29005iUSF45,46200909-201209

MARK=YELLOW

sub45535-59055

main45535-30030iUSF4#200608-200909

sub45535-59045

main45535-39005iUSF40,41200909-201111

sub45535-59045

main45535-59045iUSF40,41201111-201209

sub45535-59065

main45535-59065iUSF45,46201109-201209

W/O MARK

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19019iUSF40,41200608-201209

main90467-19019iUSF45,46201109-201209

W/O MARK

main90467-19021iUSF45,46200809-201109

main90467-19021iUSF45,46201109-201209

MARK=YELLOW

45536BOOT, STEERING RACK, NO.2

main45535-26060iUSF45,46200809-200909

main45535-29005iUSF45,46200909-201209

MARK=YELLOW

sub45535-59055

main45535-30030iUSF40,41200608-200909

sub45535-59045

main45535-39005iUSF40,41200909-201111

sub45535-59045

main45535-59045iUSF40,41201111-201209

sub45535-59065

main45535-59065iUSF45,46201109-201209

W/O MARK

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main90460-55016iUSF4#200608-200909

9011912399

main90119-12399

9017915001

main90179-15001

9046816017

main90468-16017

91672K1230

main91672-K1230

9415121241

main94151-21241

17 parts on this diagram · 10 diagrams in section
