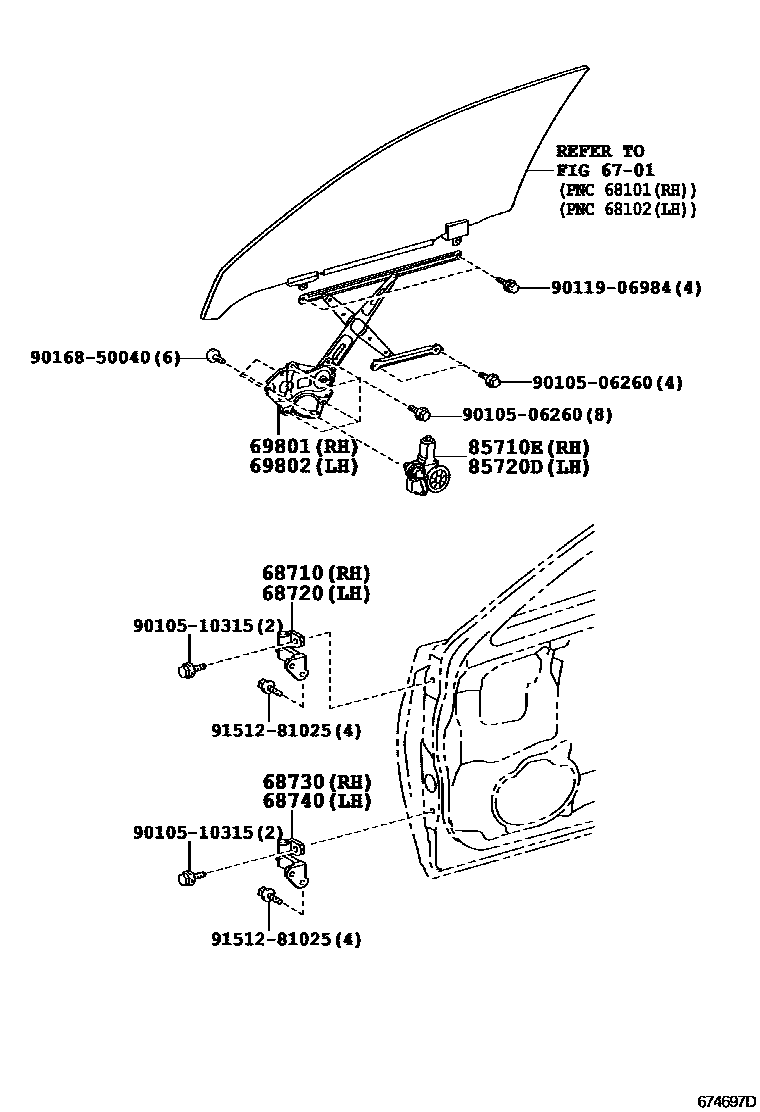

Toyota LEXUS LS460/460L — FRONT DOOR WINDOW REGULATOR & HINGE

6701

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68730-30180iUSF4#200608-200909

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68740-30080iUSF4#200608-200909

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-30160iUSF4#200608-200909

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-30060iUSF4#200608-200909

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-30260iUSF4#200608-200909

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-30260iUSF4#200608-200909

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-50100iUSF4#200608-200909

sub85710-50102

main85710-50101iUSF4#200909-201101

sub85710-50103

main85710-50103iUSF4#201102

sub85710-50104

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-50100iUSF4#200608-200909

sub85720-50102

main85720-50101iUSF4#200909-201101

sub85720-50103

main85720-50103iUSF4#201102

sub85720-50104

9010506260

main90105-06260

9010510315

main90105-10315

9011906984

main90119-06984

9016850040

main90168-50040

9151281025

main91512-81025

14 parts on this diagram · 1 diagram in section
