Toyota LEXUS LS460/460L — FRONT AXLE HUB

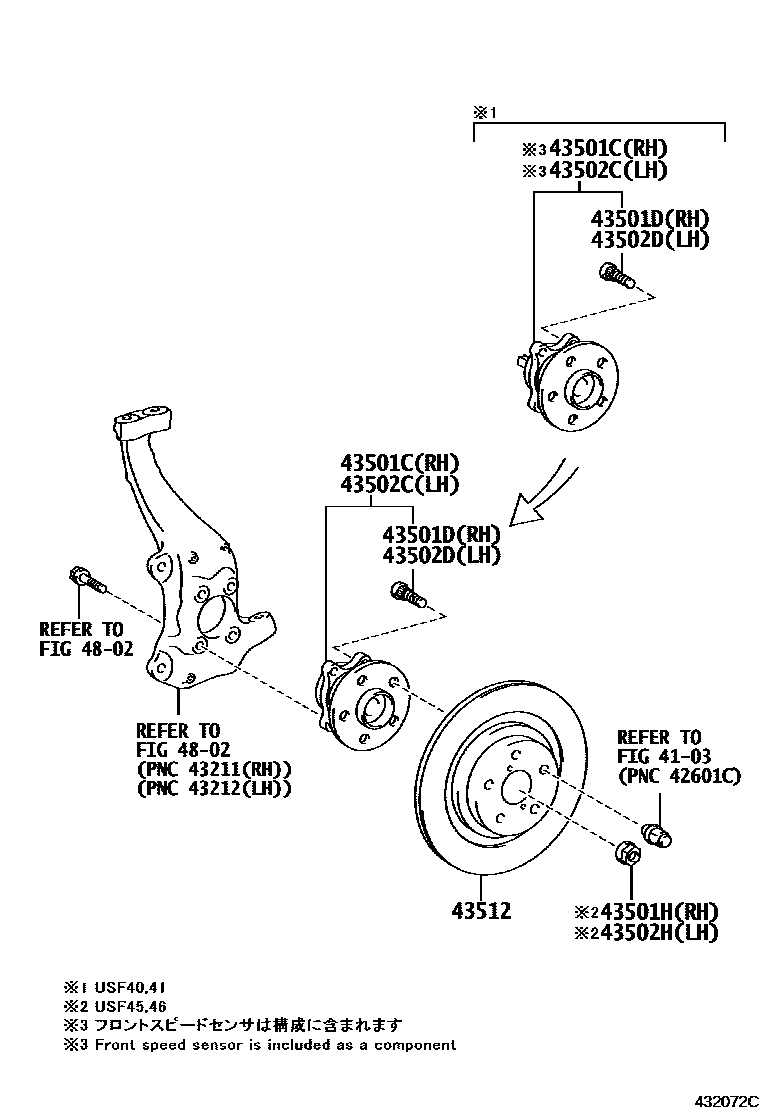

Parts diagram
4103
43501CHUB SUB-ASSY, FRONT AXLE, RH
main43550-50040i200608-200711
sub43550-50041
main43550-50041i200712-200907
sub43550-50042
main43550-50042i200908-201209
sub43550-50043
main43550-50061i200809-201209
sub43550-50062
43501DBOLT, HUB (FOR FRONT AXLE RH)
main90942-02077i200608-200712
sub90942-02083
main90942-02083i200712-200909
43501HNUT (FOR FRONT AXLE SHAFT RH)
main90177-22001i200809-200909
43502CHUB SUB-ASSY, FRONT AXLE, LH
main43550-50061i200809-201209
sub43550-50062
main43560-50010i200608-200711
sub43560-50011
main43560-50011i200712-200907
sub43560-50012
main43560-50012i200908-201209
sub43560-50013
43502DBOLT, HUB (FOR FRONT AXLE LH)
main90942-02077i200608-200712
sub90942-02083
main90942-02083i200712-200909
43502HNUT (FOR FRONT AXLE SHAFT LH)
main90177-22001i200809-200909
43512DISC, FRONT
main43512-50250i200608-201209
RH
sub43512-50260
main43516-50010i200608-201209
LH
sub43516-50020
4802

9 parts on this diagram · 1 diagram in section
