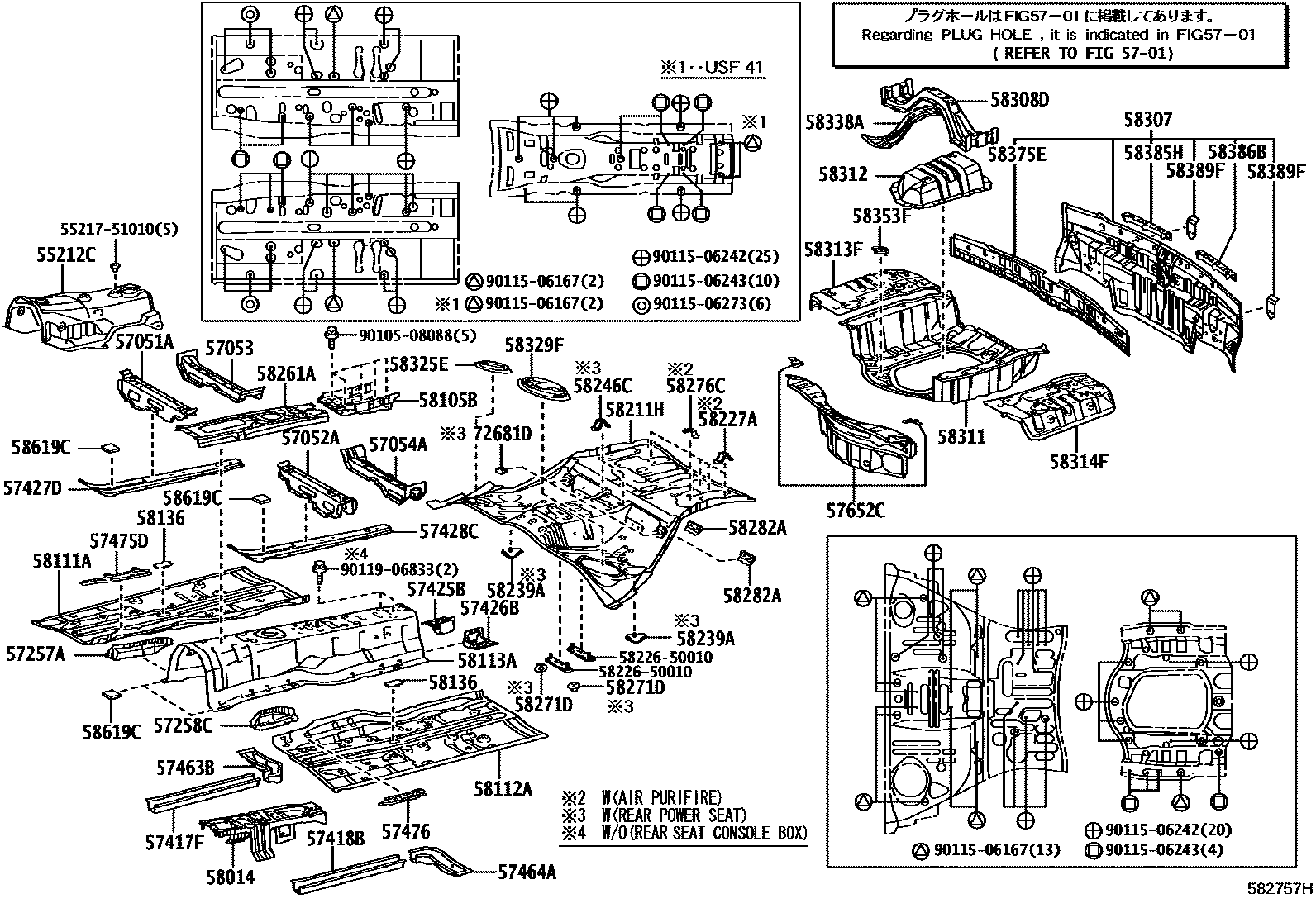

Toyota LEXUS LS460/460L — FLOOR PAN & LOWER BACK PANEL
5701
57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH
sub57053-50030
57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH
sub57054-50030
57258CBRACKET, ENGINE REAR MOUNTING MEMBER, LH
57425BREINFORCEMENT, FRONT FLOOR, NO.2 RH
57426BREINFORCEMENT, FRONT FLOOR, NO.2 LH
57427DREINFORCEMENT, FRONT FLOOR, NO.3 RH
57428CREINFORCEMENT, FRONT FLOOR, NO.3 LH
57463BREINFORCEMENT, CENTER FLOOR CROSSMEMBER, RH
57464AREINFORCEMENT, CENTER FLOOR CROSSMEMBER, LH
57475DPLATE, FRONT FLOOR CROSSMEMBER, RH
57476PLATE, FRONT FLOOR CROSSMEMBER, LH
57652CMEMBER, REAR FLOOR CROSS, NO.1
58014PANEL SUB-ASSY, FRONT FLOOR, REAR LOWER
58105BPANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB
58136COVER, FRONT FLOOR HOLE
58211HPAN, CENTER FLOOR
sub58211-50931
sub58211-50932
sub58211-50251
VERSION U OR VERSION U I PACKAGE&REAR ARMREST-WITH(OTTOMAN & ACC SOCKET)&REAR SEATADJUSTER-W(OTTOMAN)
sub58211-50933
VERSION U OR VERSION U I PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-WITH(POWER SLIDE)
sub58211-50933
VERSION U OR VERSION U I PACKAGE&REAR ARMREST-WITH(WITHOUT/TRUNK THROW)
sub58211-50933
VERSION U OR VERSION U I PACKAGE&REAR ARMREST-WITH(WITH/OTTOMAN 12V)&REAR SEAT ADJUSTER-OTTOMAN
sub58211-50933
VERSION U OR VERSION U I PACKAGE&REAR ARMREST-WITH(OTTOMAN CIGARETTE)&REAR SEAT ADJUSTER-OTTOMAN
sub58211-50933
VERSION U OR VERSION U I PACKAGE&WITH(REAR COOLER)
sub58211-50933
VERSION U OR VERSION U I PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)
sub58211-50933
VERSION U OR VERSION U I PACKAGE&REAR ARMREST-W(OTTOMAN & CIGARETTE LIGHTER)&REARSEAT ADJUSTER-W(OTTOMAN)
sub58211-50933
VERSION U OR U I PACKAGE OR KOREA SPEC
sub58211-50933
58227APLATE, AIR GUIDE
VERSION U OR VERSION U I PACKAGE&REAR ARMREST-WITH(WITHOUT/TRUNK THROW)
VERSION U OR VERSION U I PACKAGE&REAR ARMREST-WITH(WITH/OTTOMAN 12V)&REAR SEAT ADJUSTER-OTTOMAN
VERSION U OR VERSION U I PACKAGE&REAR ARMREST-WITH(OTTOMAN CIGARETTE)&REAR SEAT ADJUSTER-OTTOMAN
VERSION U OR VERSION U I PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-WITH(POWER SLIDE)
VERSION U OR VERSION U I PACKAGE&WITH(REAR COOLER)
VERSION U OR VERSION U I PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)
VERSION U OR VERSION U I PACKAGE&REAR ARMREST-WITH(OTTOMAN & ACC SOCKET)&REAR SEATADJUSTER-W(OTTOMAN)
VERSION U OR VERSION U I PACKAGE&REAR ARMREST-W(OTTOMAN & CIGARETTE LIGHTER)&REARSEAT ADJUSTER-W(OTTOMAN)
VERSION U OR U I PACKAGE OR KOREA SPEC
58239APLATE, BELT ANCHOR NUT
VERSION U OR VERSION U I PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-WITH(POWER SLIDE)
REAR SEAT ADJUSTER-WITH(POWER SLIDE)
VERSION U OR VERSION U I PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)
REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)
VERSION U OR U I PACKAGE OR KOREA SPEC
58246CBRACKET, REAR SEAT HINGE, CENTER NO.2
VERSION U OR VERSION U I PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-WITH(POWER SLIDE)
REAR SEAT ADJUSTER-WITH(POWER SLIDE)
VERSION U OR VERSION U I PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)
REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)
VERSION U OR U I PACKAGE OR KOREA SPEC
REAR ARMREST-W(OTTOMAN:5SEAT+*RSE)
58261ACOVER, TRANSMISSION
58271DREINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.3
VERSION U OR VERSION U I PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-WITH(POWER SLIDE)
REAR SEAT ADJUSTER-WITH(POWER SLIDE)
VERSION U OR VERSION U I PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)
REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)
VERSION U OR U I PACKAGE OR KOREA SPEC
58276CREINFORCEMENT, SIDE FLOOR, NO.4
VERSION U OR VERSION U I PACKAGE&REAR ARMREST-W(OTTOMAN & CIGARETTE LIGHTER)&REARSEAT ADJUSTER-W(OTTOMAN)
VERSION U OR VERSION U I PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-WITH(POWER SLIDE)
VERSION U OR VERSION U I PACKAGE&REAR ARMREST-WITH(WITHOUT/TRUNK THROW)
VERSION U OR VERSION U I PACKAGE&REAR ARMREST-WITH(WITH/OTTOMAN 12V)&REAR SEAT ADJUSTER-OTTOMAN
VERSION U OR VERSION U I PACKAGE&REAR ARMREST-WITH(OTTOMAN CIGARETTE)&REAR SEAT ADJUSTER-OTTOMAN
VERSION U OR VERSION U I PACKAGE&WITH(REAR COOLER)
VERSION U OR VERSION U I PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)
VERSION U OR VERSION U I PACKAGE&REAR ARMREST-WITH(OTTOMAN & ACC SOCKET)&REAR SEATADJUSTER-W(OTTOMAN)
VERSION U OR U I PACKAGE OR KOREA SPEC
58282ABASE, BELT ANCHOR TO FLOOR PAN, NO.3 RH
58307PANEL SUB-ASSY, BODY LOWER BACK
sub58307-50060
58308DBRACKET SUB-ASSY, REAR FLOOR CROSSMEMBER
sub58308-50011
58311PAN, REAR FLOOR
58312PANEL, REAR BODY FLOOR, NO.1
58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH
58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58329FCOVER, REAR FLOOR SERVICE HOLE, NO.2
58338AREINFORCEMENT, REAR FLOOR PAN, NO.2
sub58338-50021
58353FREINFORCEMENT, REAR FLOOR PANEL, NO.3
58375EREINFORCEMENT, BODY LOWER BACK PANEL
58385HBRACKET, REAR BUMPER COVER, NO.1
58386BBRACKET, REAR BUMPER COVER, NO.2
58389FBRACKET, LOWER BACK COVER
58619CSHEET, CENTER FLOOR SILENCER SUB
72681DHOOK, REAR SEATBACK LOCK, LOWER
REAR SEAT ADJUSTER-WITH(POWER SLIDE)
REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)
VERSION U OR U I PACKAGE OR KOREA SPEC
5521751010STRIP, DASH PANEL SILENCER FINISH
main55217-51010
5822650010PLATE, FLOOR PANEL FRONT END, LOWER
main58226-50010
9010508088
main90105-08088
9011506167
main90115-06167
9011506242
main90115-06242
9011506243
main90115-06243
9011506273
main90115-06273
9011906833
main90119-06833
57 parts on this diagram · 8 diagrams in section
